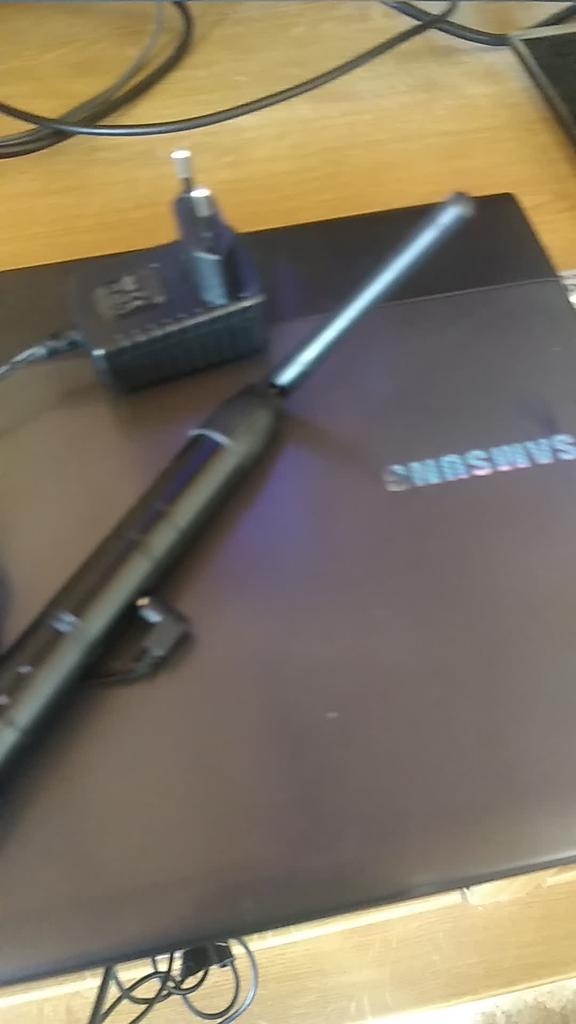

Lixada 2.4G ISM DMX512 Wireless Male XLR Transmitter Receiver LED Lighting for Stage

This wireless receiver can help you to get rid of countless wire.

Features: DMX512 wireless receiver transmits standard DMX512 protocol data ( generated by console ) by wireless way. No time delay when signal data is transmitting, signal data is real time and reliably. This product adopts a 2.4G ISM frequency section. High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability. 126 channels jumping frequency automatically, high anti-jamming ability, to ensure works reliability. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place. ( Tricolor LED displaying Indicators ) Specification: 2.4G wireless DMX512 R/T Input voltage: 5VDC 500mA MIN Receive Sensitivity: -94dBm Max transmitting power rate: 20dBm DMX connector: 3pin female Communication distance: 400M ( visible distance ) Work frequency section: 2.4G ISM, 126 channels.frequency section Plug standard: US / EU ( optional ) Material: zinc alloy + plastic Item size: 21 * 2.5 * 2.5cm/8.26 * 0.98 * 0.98in ( L * W * H ) ( 1pc ) Package size: 14.5 * 10.5 * 4.5cm/5.7 * 4.13 * 1.77in ( L * W * H ) Package weight: 180g / 6.36oz Operating manual: ID code and LED color corresponding relationship: 1: RED 2: GREEN 3: RED+GREEN 4: BLUE 5: RED+BLUE 6: GREEN+BLUE 7: RED+GREEN+BLUE 1). Press momentary switch above the side led indicator to indicate ID setting. 2). Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color IDcode. 3). Working condition: LED constant lit up: No DMX or wireless signal. Red LED flash: Transmitting. Green LED flash: Receiving 4) RF frequency 2.400 - 2.525G, total 126 channels, it's searching automatically. 5). ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. ( Same LED Color ) Establishing Communication: 1. Power on DMX512 wireless received board first and then following to power up the transmitted board. 2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place. 3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flashes until received same ID value, the more DMX data, the faster the LED flashes. 4. Communication was established correctly.

Package List: 1 * DMX Wireless Receiverunit 1 * Adapter 1 * Specification ( English )
