This product is a combustible gas detector for fast and reliable detection of combustible gas on gas pipelines. It is widely used and is an indispensable tool for every professional.
Features:
1. Pen-type Gas Leak Detector: Detect the presence of all kinds of combustible gas and react very quickly. Compact and lightweight, easy to carry.
2. Sensitivity Selection: High and low sensitivity are switchable for different scenarios.
3. Auto Power Off: No operation, no alarm signal, automatic shutdown after about 5 minutes.
4. Audible and Visual Alarm: Send out an audible and visual alarm if combustible gas is detected.
5. Easy to Read: LCD display with green backlight ensures clear visibility even in the dim light.
Note:
1.?Turn on the instrument in a clean air environment and wait for the warm-up to complete.
2. Always check the function of the gas detector before using it to ensure that it is normal.
3.?Ensure that the gas concentration does not exceed 20percent LFL ( Lower flammability limit ).
4. Due to manual measurement, the size may be slightly different. Thank you for your understanding.
5. Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.
Specifications:
Brand: HABOTEST
Model: HT60
Shell?Material: ABS
Display: LCD
Color: Black & Red
Sensor: Gas-sensitive semi-conductor
Detection Range: 50~1000ppm (methane)
Response Sensitivity: less than 50ppm (methane)

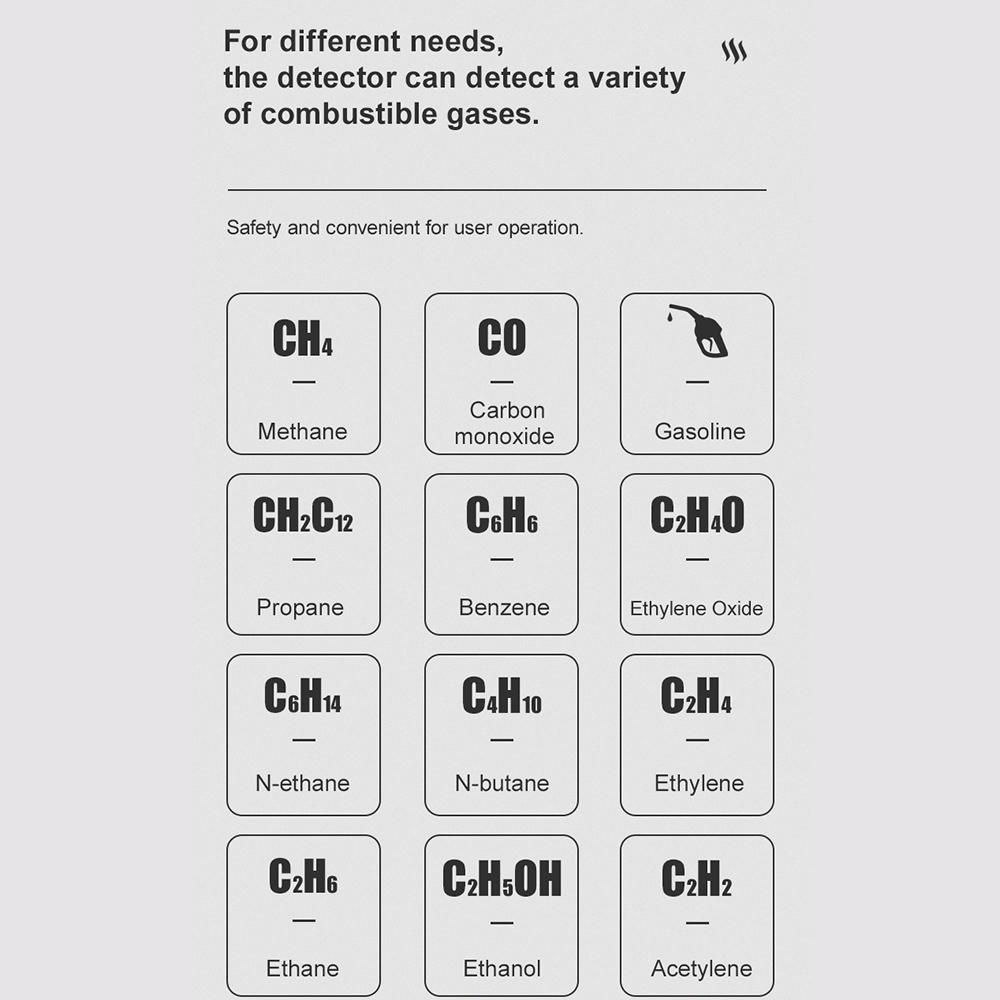

Test Gas (partial list): acetone, acetylene, alcohol, ammonia, benzene, butane, ethanol, oxirane, gasoline, hexane, hydrogen, methane, naphtha, natural gas, paint thinners, propane, solvents, etc.
Warm-Up Time: Approx. 30 sec
Reactions Time:?
less than 500PPM: Approx. 5sec
more than 500PPM: Approx. 2sec
Alarm Mode: visible and audible
Operating Conditions: 0~50 degrees C / 20~80percent RH
Storage Conditions: -10~60 degrees C / 20~80percent RH

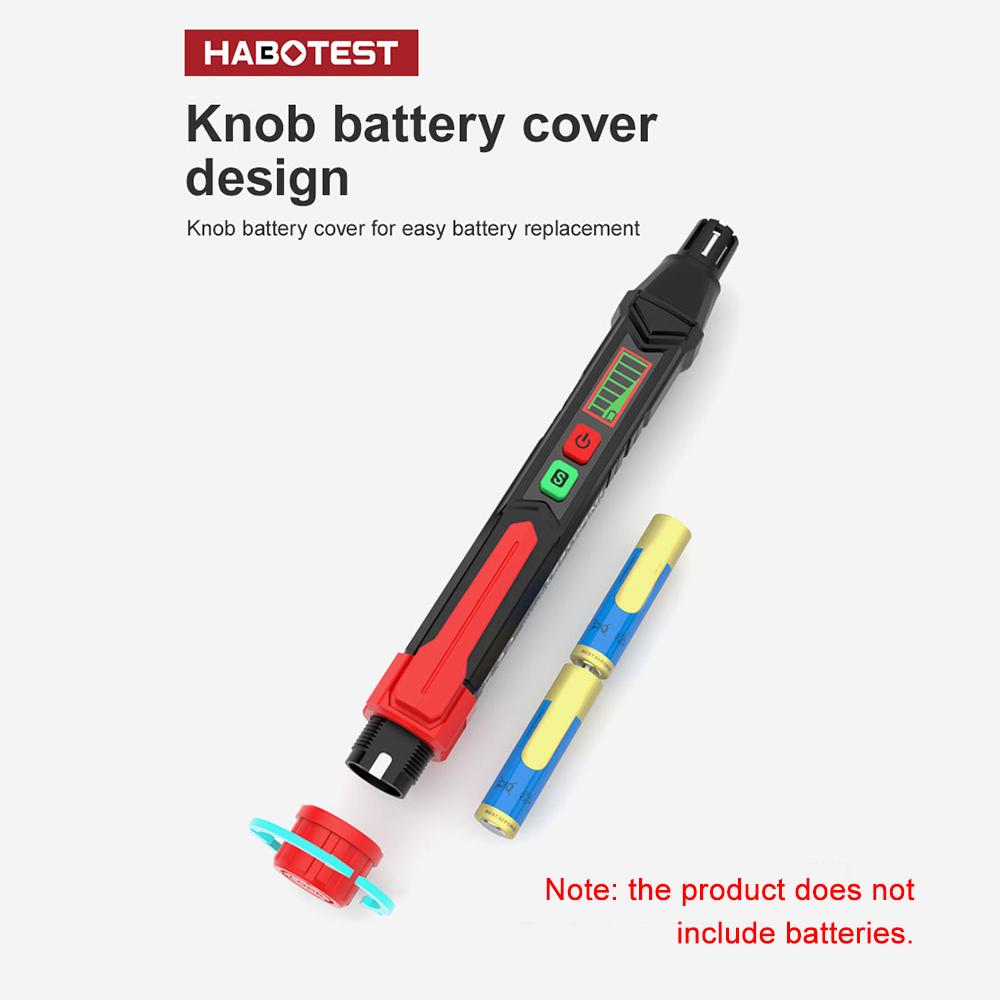

Batteries: 2 x 1.5V AAA alkaline battery ( not included )
Item Size: 17*2.8*2.3cm / 6.69*1.10*0.91in
Net Weight: 35g / 1.23oz
Packing Size: 17.5*4.5*3cm / 6.89*1.77*1.18in
Packing Weight: 55g / 1.94oz
Package List:
1 * Combustible Gas Detector
1 * Manual ( English )
