Banana Pi BPI-CM4 Single-Board Computer

Products include:

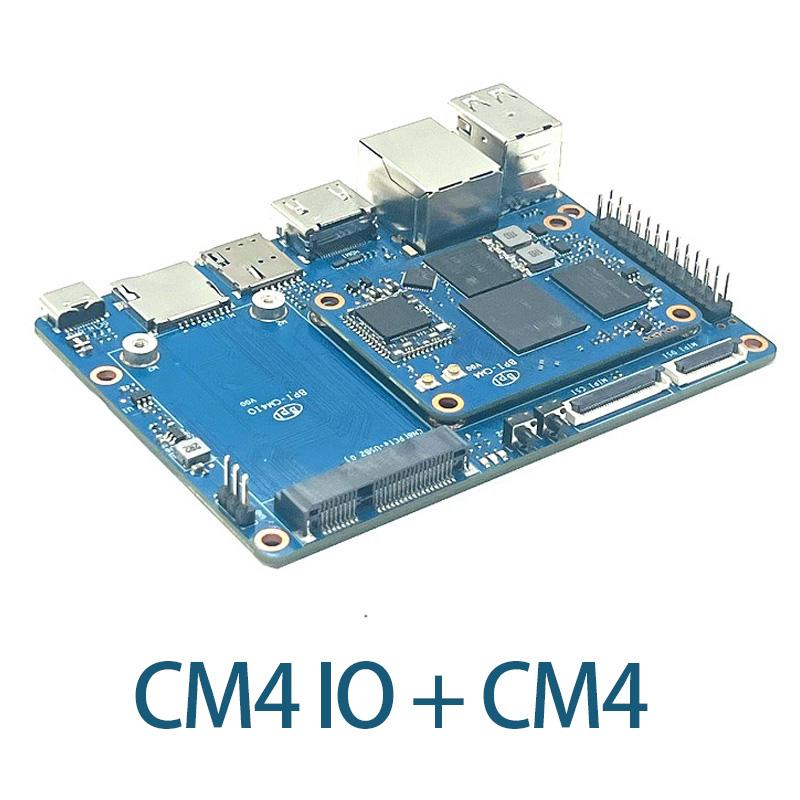

1pcs BPI-CM4 Board /1pcs BPI-CM4 IO + CM4 Board

=========================================

BananaPi BPI-CM4 new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.

for A311D chip PIN limited . just support 1 HDMI ,1 CSI and 1 DSI , Raspberry Pi support 2 HDMI ,2 CSI and 2 DSI , Other is Pin2Pin . you can use Raspberry Pi CM4 baseboard.

========================================

Key Features

Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS 4GB LPDDR4 RAM 16GB eMMC flash (Max 128G) support MIPI DSI Camera interface support MIPI CSI Screen interface Minipcie HDMI output 26 PIN GPIO support Android and Linux system.

=======================================

Banana Pi BPI-CM4 SBC specifications

SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU System Memory – 4GB LPDDR4 Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot Video interfaces HDMI 2.1 output up to 4Kp60 MIPI DSI connector for display MIPI CSI connector for camera Networking – 1x Gigabit Ethernet ports one via RTL8211F GbE transceiver USB – 2x USB 2.0 Type-A port, 1x USB Type-C port Expansion – 26-pin GPIO header Debugging – 3-pin header for serial console Misc – 2x buttons. Power Supply – Via USB-C port or pin header
