Specification
Product Category: RC Drone Frame Kit

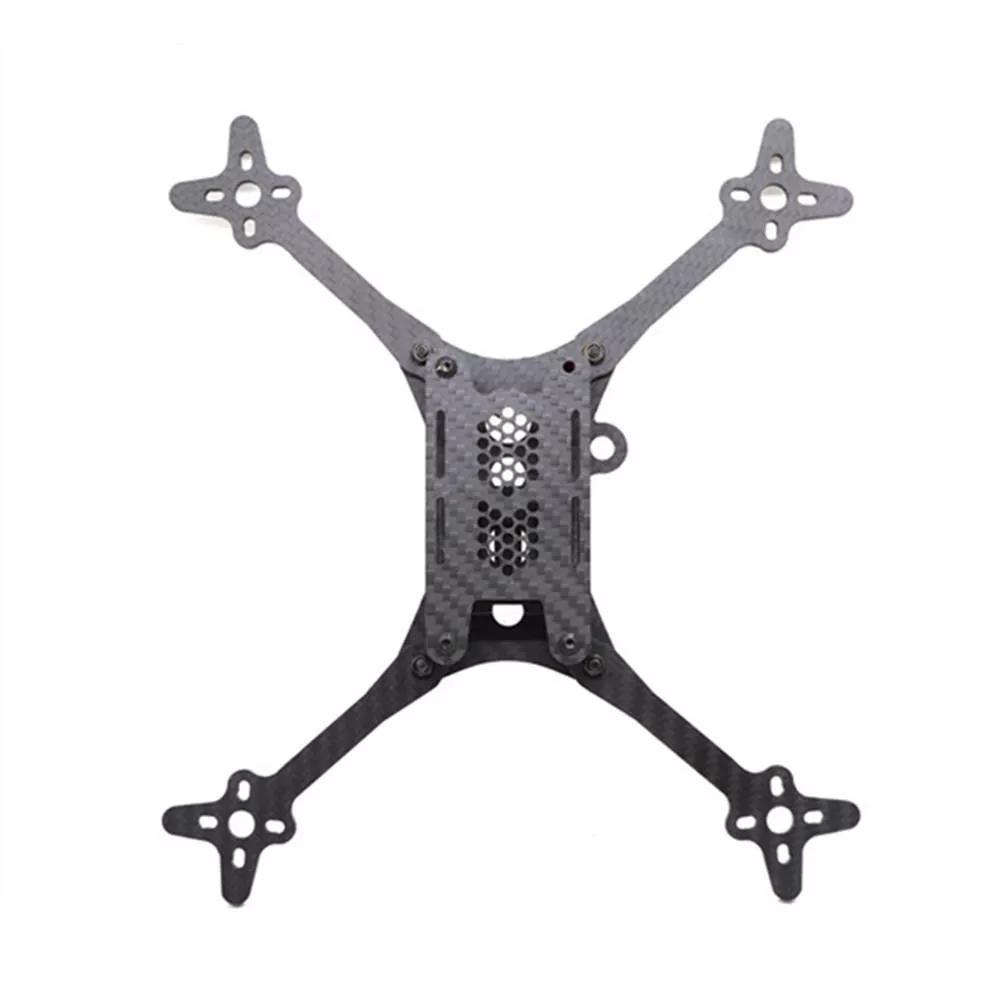

Item Name: 215mm 5 Inch Racing Frame Kit
Brand Name: HSKRC
Model: Floss 2
Material: 3K Carbon Fiber
Wheelbase: 215mm
Arm Plate Thickness: 4mm
Arm Plate Width: about 10mm
Upper Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
The Height of Standoff: 24mm
Weight: about 68g
Recommend Parts:
Flight Controller: 30
5x30
5mm F3/ F4/ F7 Flight Controller
Brushless ESC: 20-40A ESC
Brushless Motor: 22XX series Motor
Propeller: 5 Inch Propeller
Lipo Battery: 3S 1300mAh-4S 1300mAh
The Following Parts are Suitable:
FC: 30
5X30
5mm DYS F4 Pro V2 FC AIO OSD BEC & Current Sensor
Motor: BrotherHobby Returner R2 2205 2300KV 2600KV 2800KV 3-4S Motor
DYS Samguk Series Shu 2306 2250KV 2500KV 2800KV 3-4S Motor
ESC: 30
5x30
5mm DYS F30A 30A BL_S DShot600 4In1 ESC w/ BEC Output
Propeller: Kingkong 5045 5x4
5 5 Inch 3-Blade Propeller CW & CCW
Geprc 5040 V2 5x4 5 Inch 3-Blade Propeller CW & CCW
Camera: RunCam Sparrow WDR 700TVL 1/3 CMOS 2
1mm FOV150 FPV Camera P/N
Lipo Battery: AHTECH Infinity 3S 11
1V 1300mAh 45C Graphene LiPo Battery
GaoNeng GNB 4S 15
2V 1300mAh 120C 4
35V HV Lipo Battery
Packing list
1x HSKRC 215mm Frame Kit
Notice:
All images and descriptions are for illustrative purposes only
Product specification, functions and appearance may vary by actual usage
The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement
We recommend you could check with sales for exact offers if need
