Description.
Product Category: car head-up display
Product introduction
HUD short for Head Up Display.It displays driving data on the car windshield such as speed,RPM,water temperature,trip distance etc;avoiding drivers unsafely because of watching the instrument while driving.Drivers can read the driving information instantly, and always keep the best state on the way with HUD.

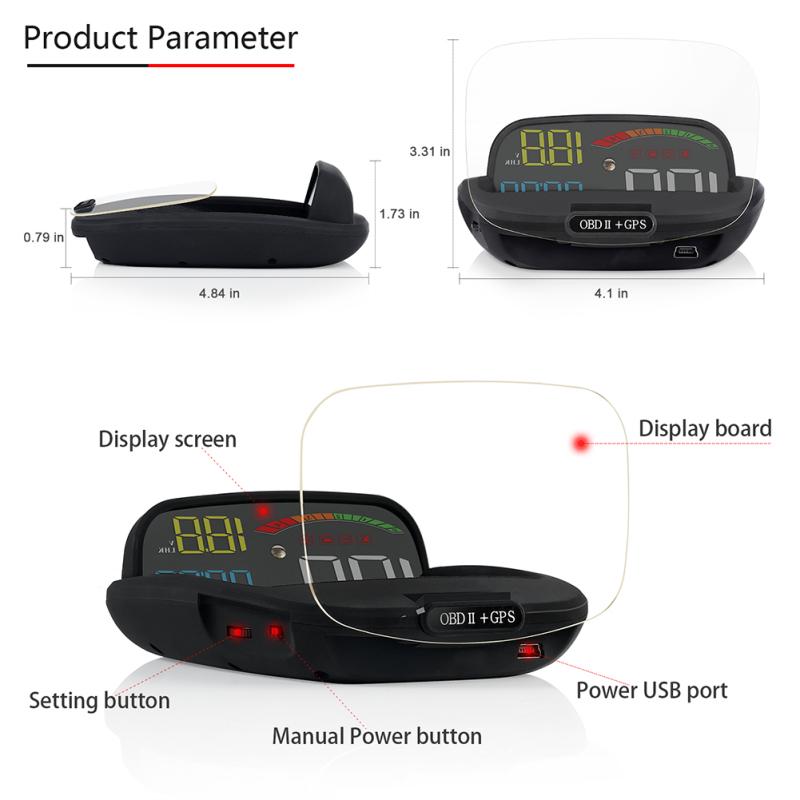

Technical Parameters
1.Environment temperature: - 40 °C— +120 °C
Barometric press: 86-106KPa
Relative humidity:10%-95%
Environment voice:<=60dB
2.Work voltage:11V-18Vdc(12Vdc/200mA)
3.Sleep current:<=30mA
4.Display way:Virtual image reflection
5.Display channel :LED Display
6.Reflector transmittance: 98%
Display functions
1.RPM(OBD mode), Satellite numbers(GPS mode)
2. OBD mode:Battery voltage/Fuel consumption/Satellite numbers
GPS mode:Battery voltage/Satellite numbers
3. Icons: Satellite signal / Error code /Fatigue driving /Driving direction
4. Speed
5. Speed unit: KM/H=kilometer/hour, MPH=Mile/hour
6. V=Unit of voltage, LKH=Unit of fuel consumption,including Instantaneous fuel consumption (idle speed),100 km instantaneous fuel consumption (in driving),Average fuel consumption (after driving)
7. Multi functions display:
OBD mode:RPM,single trip distance,altitude,driving time,clock,water temperature,driving direction
GPS mode:Clock,driving direction,single mileage,altitude,driving time
8.Unit icons :RPM=engine speed, Trip=trip distance, ASL=Altitude, MIN=driving time, C/F=Water temperature
Packing List:
1 x host
1 x obd line
1 x usb line
1 x mat
1 x instruction
1 x mat
Note: Light shooting and different display may cause the color of the item in the picture to be slightly different from the real thing. The measurement tolerance is +/-1-3cm.
