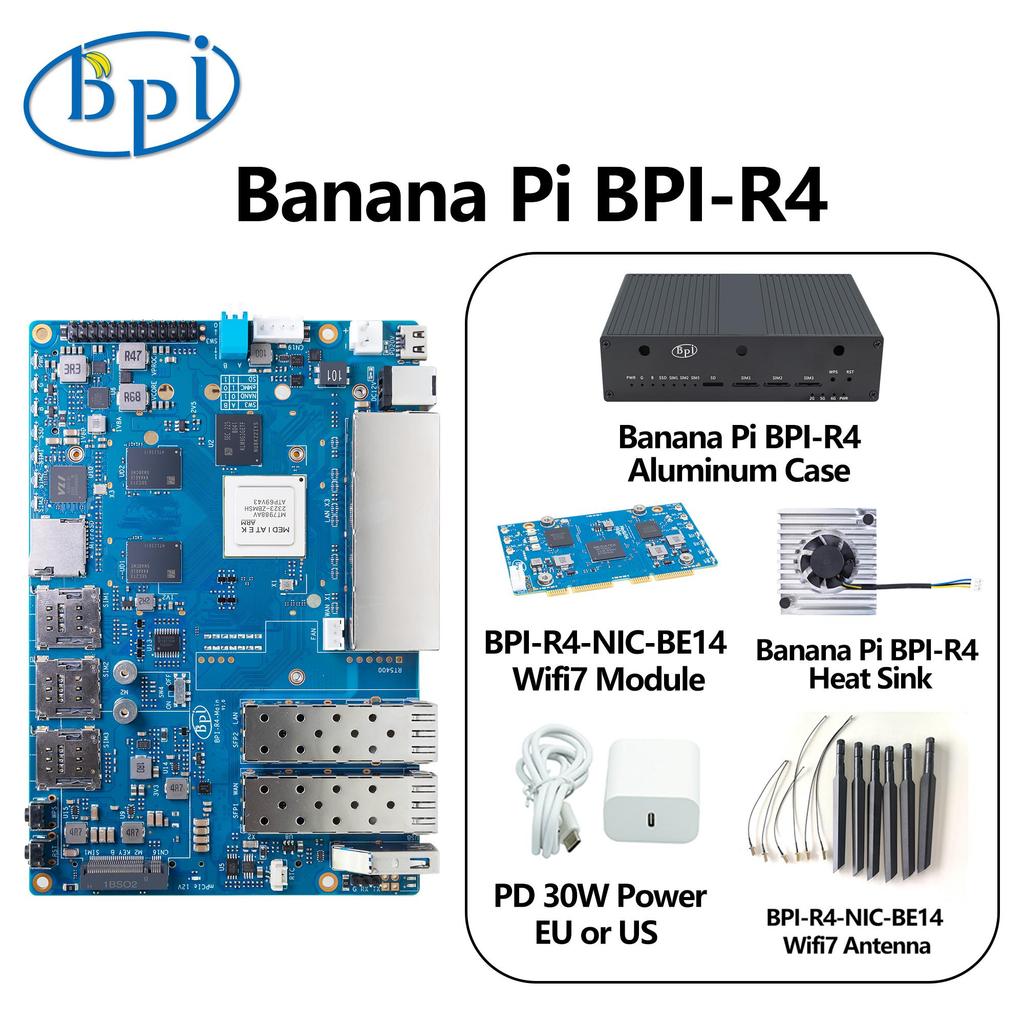

Banane Pi BPI-R4 Media Tek Mt7988a (filo Gic 880) Quad-core Arm Corex-A73 4gb Ddr4 8gb Emmc Flash Smart Router Board

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design ,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high performance open source router development board.

MediaTek MT7988(Filogic 880) Mediatek Filogic 880. the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2 US下GMII interfaces. 4 PCIe Interfaces,and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC.

To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Application direction Internet service Router Wifi 7 Wireless Router 4G/5G Wireless Router Wireless Repeater Home security Gateway Home Automation Nas device Network and communication applications Key Features MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor 4GB DDR4 8GB eMMC flash 128MB SPI-NAND Flash Micro SD card slot 2x 10Gbe SFP slot 4x Gbe network port 1x USB3.2 slot 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) 26 PIN GPIO Header for expanding application POE function customizable (present version not support POE function)
