Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
Highlights：
Powerful & Endurance Riding
The Touroll U1 26/29 electric bike delivers exhilarating power with a mighty brushless motor that churns out 45Nm torque. With a top speed of 25km/h, you’ll feel the thrill of bike riding. Its removable 13Ah lithium-ion battery propels you through 65km (40.38 miles) per charge in assist mode, making your daily commute and day trips a breeze.
Enhanced Smoothness & Comfort
The Touroll U1 26/29 boasts 26/29-inch wheels that roll through trail obstacles and speed bumps with ease. Its 2.1/2.25-inch wide CST pneumatic tires offer better grip, improved handling and stability. The knobby tire surface markedly absorbs the unevenness of terrain for smoother riding. Enhanced with a reliable suspension, this bicycle significantly reduces the shock impact, enabling you to traverse bumpy roads with comfort and confidence.

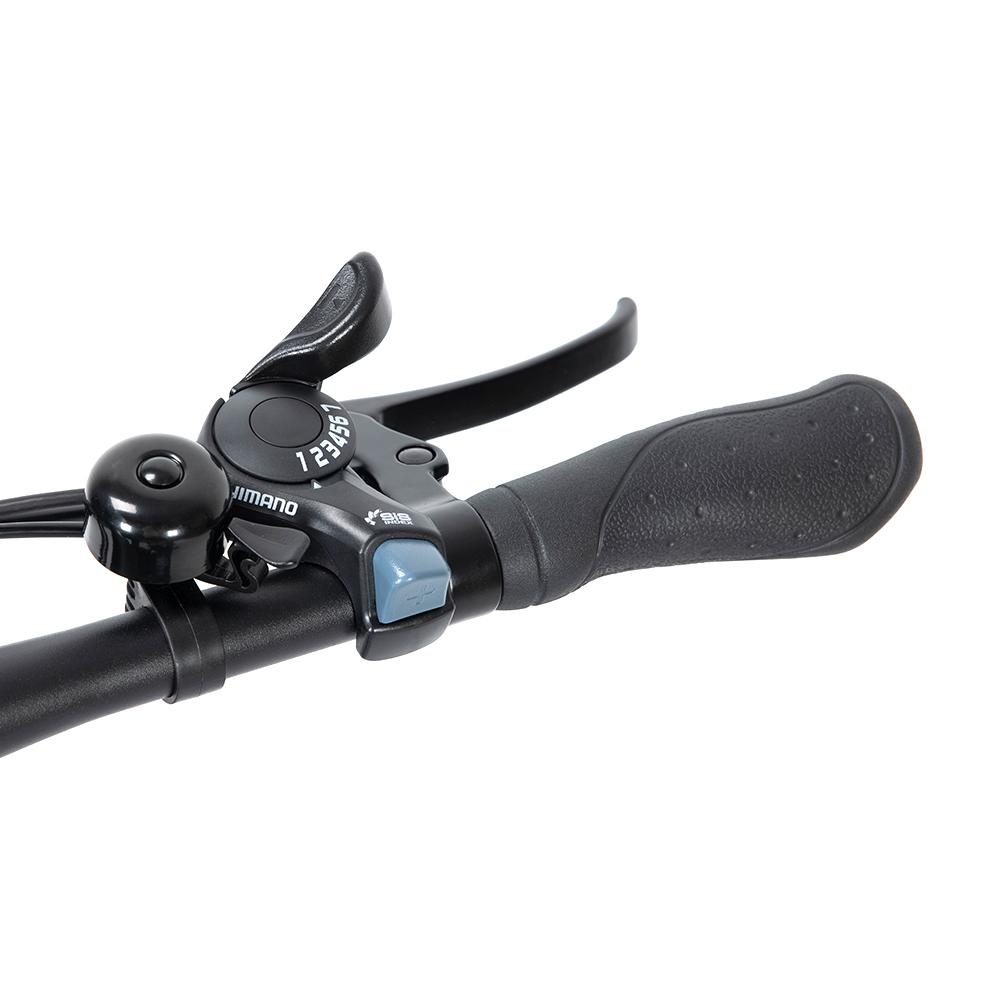

Fun Cycling with 21-Speed Shimano Gear
With professional Shimano derailleurs in the front and rear, you can shift among 21 gears at any time and indulge in the exhilaration of variable speed. Experience the speed and pleasure of a ride on the U1 26/29.
Improved Safety
The Touroll U1 26/29 features an advanced braking system consisting of an e-brake and dual disc brakes for maximum responsiveness. Our StVZO-certified light is crafted to meet the rigorous standards of German road regulations. Providing high lighting efficiency without glare, this bike light increases visibility on the road and guarantees the safety of other road users. Go on a ride with peace of mind!

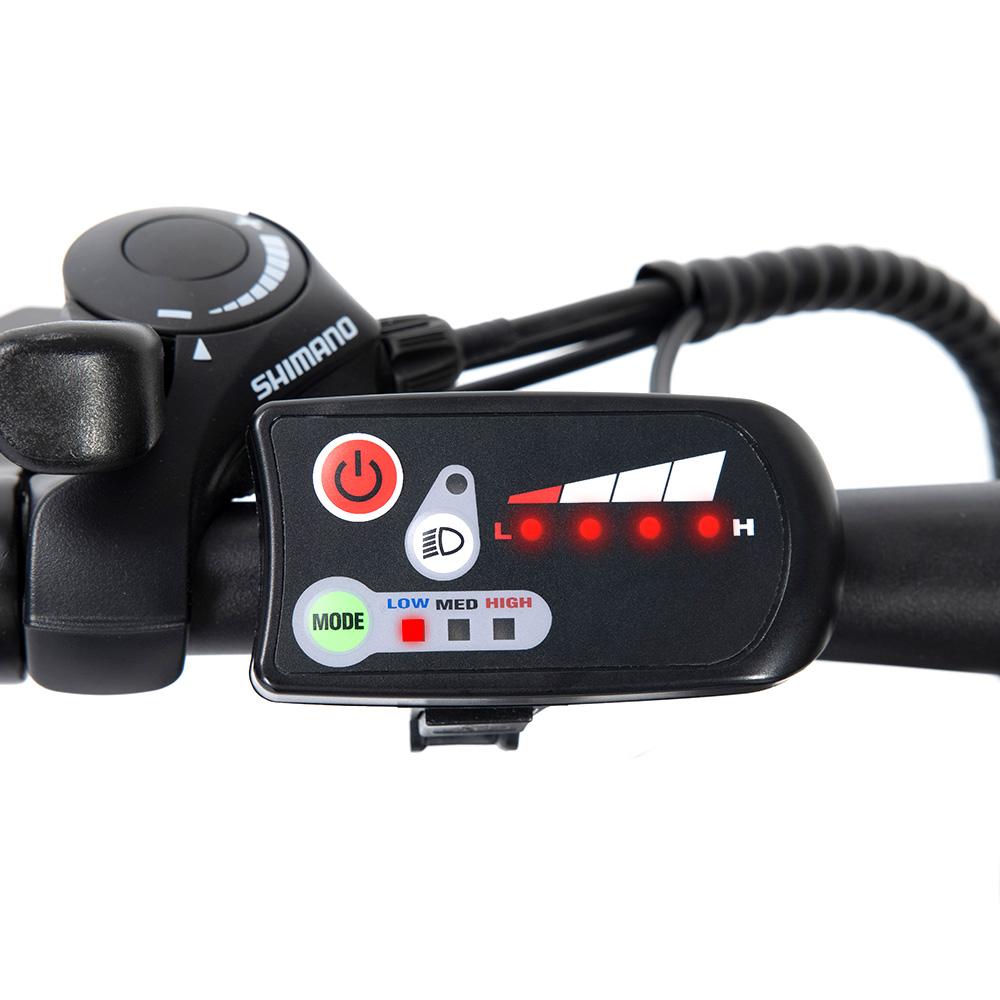

Easy Instrument Control
With a compact instrument, you can easily monitor the battery level and seamlessly switch among 3 pedal assist levels - 12, 18, and 25 km/h. With just a touch of the button, you can activate the 6km/h walk mode and walk the bike effortlessly, perfect for a leisurely stroll along the roadside. Enjoy the scenery at your own pace with the Touroll U1 26/29.
Specification：
General
Brand: Touroll
Name: Upeak
Model: U1 26/29
Color: Black
Basic Specification
Net Weight: 21.7kg/23.5kg
Unfolded Size: 1720x680x1030mm/1870x690x1110mm
Size of Frame: 26"x17"/ 29"x19"
Length of Handlebar: 680mm (26.8")/690mm (27.2")
Height of Saddle (From the Ground): 32.3"-38.6"/36.6"-41.7"
Recommended Rider Height: 155-190cm (Around 5' 1"-6' 3")/160-195cm (Around 5' 3"-6' 5")
Max Load of Bike: 120kg
Cut-off Speed: 25km/h
Max Range: 65km (Assist Mode)
Pedal Assist Levels: 12/18/25 km/h
Walk Mode: 6km/h
Waterproof Level: IPX4
Material of Frame: STL
Braking System: Disc Brakes & E-Brake
Suspension: Mechanical Shock Absorber
Motor

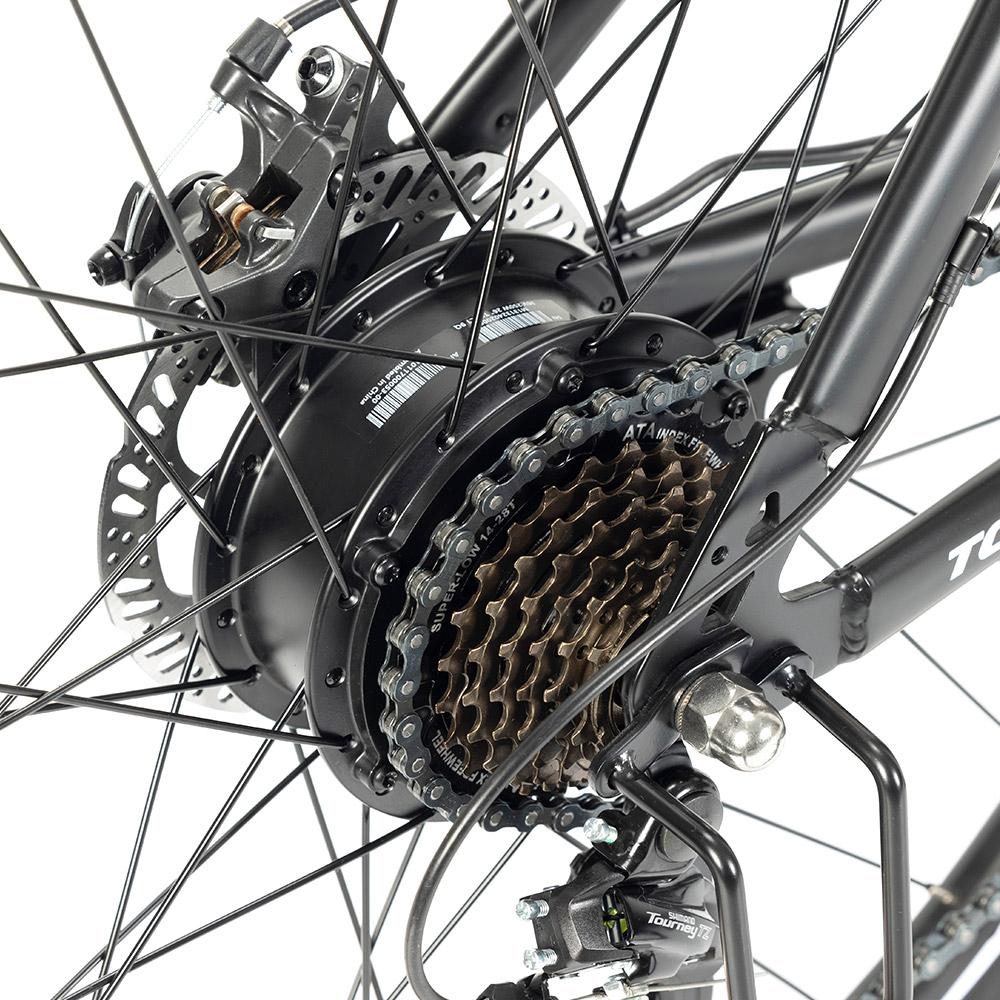

Type: Hub Motor
Rated Voltage: 36V
Max Output Torque: 45N.M
Derailleur
Brand: Shimano
Number of Gears: 3 (Front), 7 (Rear)
Battery
Capacity: 13Ah
Voltage: 36V
Charging Time: 4-6h
Power Capacity: 468Wh
Protection System: Yes
Charger
Input: 100-240V, 2.0A
Output: 42V, 2.0A
Tires
Brand: CST
Size: 26x2.1"/29x2.25"
Type: Pneumatic Rubber Tires
Tire Pressure: 40-70PSI
Best Tire Pressure: 45-65PSI
Instrument
Information: Assist Level, Battery Level, Light Indicator
Functions: Power On/Off, Turning Light On/Off, Shifting Assist Levels, Activating Walk Mode
Package
Size: 1400x250x700mm/1540x250x780mm
Gross Weight: 28kg/31.6kg
Package List
1 x E-Bike 1 x User Manual
1 x Charger 2 x Pedal (Left & Right)
1 x Taillight 4 x Spoke Reflector
1 x Headlight 1 x Saddle
1 x Instrument 2 x Key
1 x Tool Kit
Note: the max range is achieved under the following conditions: 75kg load, 26℃ temperature, 15km/h constant speed, on flat roads with no strong wind.
