Features:
It\\\'s an advance pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Light weight and small size, convenient to install and operate.
It has complete voltage function.
Works for oil, fuel, , gas, water, pressure, can be used in oil , gas , etc.
Specifications:
Material: Stainless steel
Voltage: 5V

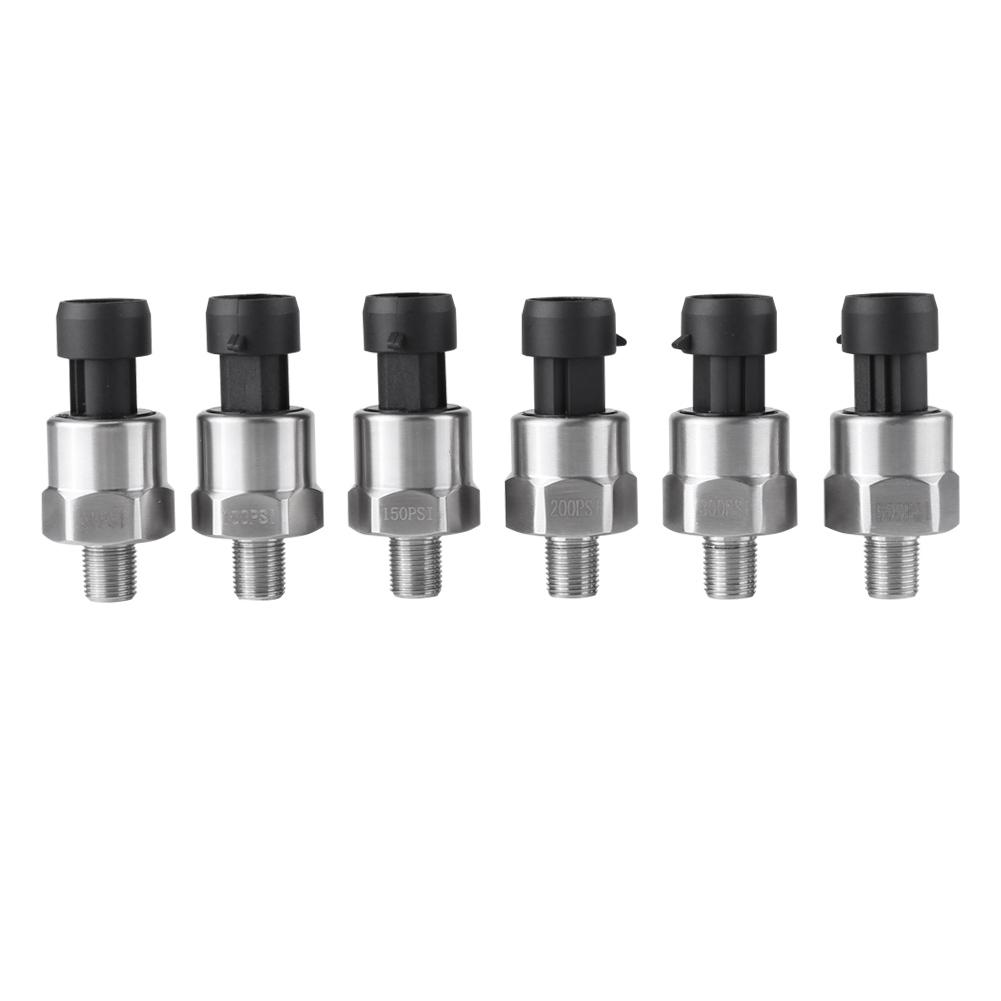

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (
Optional
)
Thread Type: 1/8\\\" NPT
30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8\\\"-27 NPT.
Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for output.
100 psi
Input: 0-100 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8\\\"-27 NPT
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V; Black for ground; Blue for output.
150 psi
Input: 0-150 psi
Output: 0.-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.%FS
Thread: 1/8\\\" NPT
Wiring: Red for +5V; Black for ground; Green for output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
200 psi
Input: 0-200 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V
Working Temperature: -40~+125℃
Accuracy: ±1%FS
Thread: 1/8\\\"-27 NPT
Overload Capacity: 2 times of rated pressure
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: ± 0.2%FS/year
Temperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Temperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Shock Resistance: 100g
Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for IN+; Black for GND; Green for OUT.
300 psi
Input: 0-300 psi
Output: 0.-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V
Accuracy: +/-0.%FS
Thread: 1/8\\\" NPT
Wiring: Red: +5V; Black: ground; Green: output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120℃
Compensation Temperature: 0℃~+80℃
Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Temperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.
500 psi
Input: 0-500 psi (Gauge Pressure)
Output: 0.-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.
Accuracy: +/-1%FS
Thread: 1/8\\\" NPT
Wiring: Red for +5V; Black for ground; Yellow (Green) for output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum:0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.
Package Includes:
1 x Pressure Transducer (With cable)
