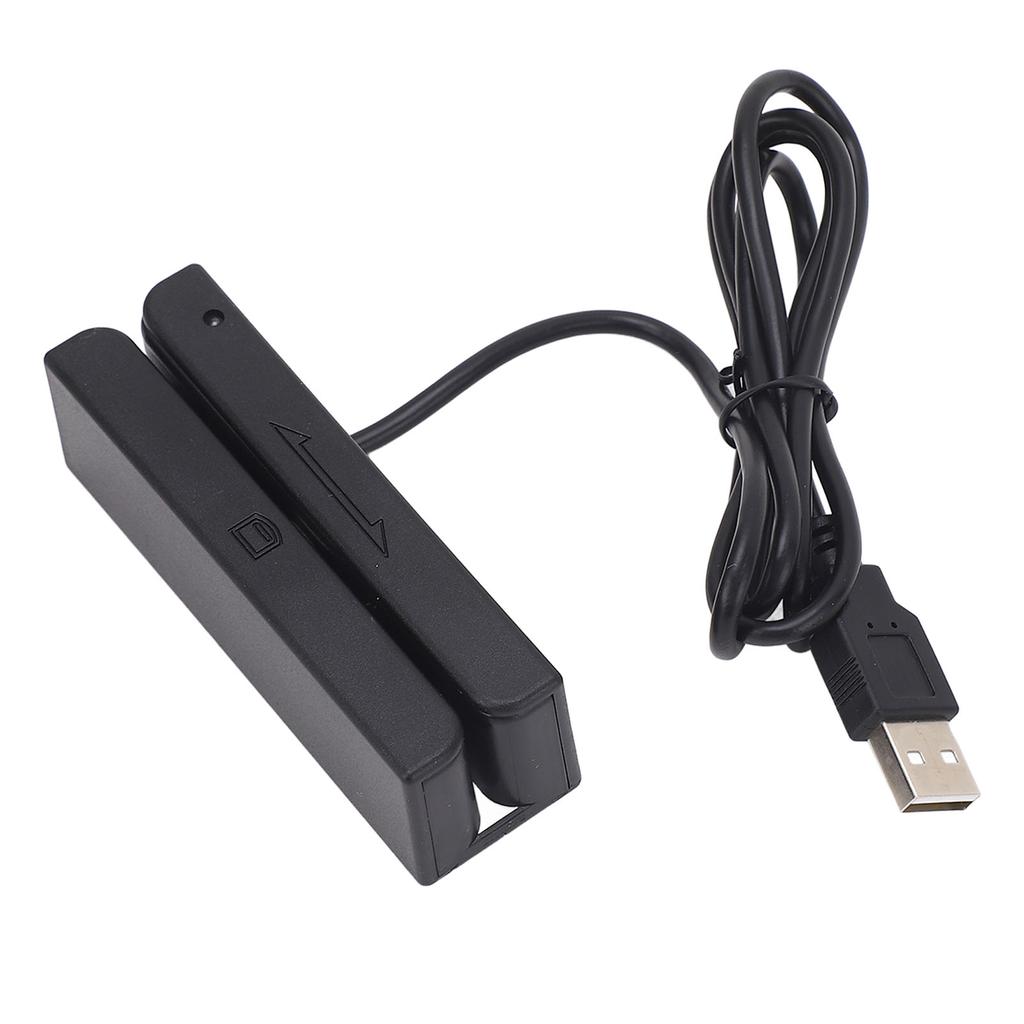

Feature:
1. USB COMM PORT: This magnetic stripe card reader is equipped with USB comm interface, plug and play. Simply plug it into the computer USB port and it can be used normally.
2. HIGH EFFICIENCY: Supports bidirectional reading of magnetic stripe card information, which is precise, stable, and sensitive, suitable for high load work, with power on self test function.
3. LED AND BUZZER: The magnetic stripe card reader is equipped with LED display light and buzzer, the green LED light and the buzzer sound indicate successful card reading.
4. MULTIPLE FUNCTIONS: Users can set the start and end symbols, carriage return and line feed, and buzzer sound on off functions of the card reader to meet the needs of more scenarios.
. WIDE APPLICATION: This bidirectional manual card reader is suitable for sales POS, access control, authentication, and other applications, which is compact and practical.
Specification:
Item Type: Magnetic Stripe Card Reader
Model: MSR580
Card Reading Speed: 15-120CM/SEC
Data Content: 1 Track, 2 Track, 3 Track Data
Working Voltage: DC5V±%
Comm Interface: USB
Status Prompt: LED Single Color Light and Buzzer Prompt
Card Thickness: PVC0.76±0.08mm
Product Size: Approx. 91.4 x 27.6 x 28.2mm / 3.6 x 1.09 x 1.11in
Operating System: For Android, for XP, for 7, for 10, and other system
Working Environment: Temperature 0℃-70℃; Humidity: 0%-90%RH
Storage Environment: Temperature -30℃-70℃; Humidity 0-95%RH
Magnetic Card Standard: ISO7810-7813
Magnetic Lifespan: ≥ 800000 Times
Magnetic Function: Read Track Width: 1.5mm
Working Current: <50MA
Material: ABS
Magnetic Track Position: ISO1 (1ATA), ISO2 (ABA), ISO3 (MINTS)
Record Density: 210BPI, 75BPI, 210BPI
Record Density: 79 Characters, 40 Characters, 107 Characters
Package List:
1 x Card Reader
