Feature:

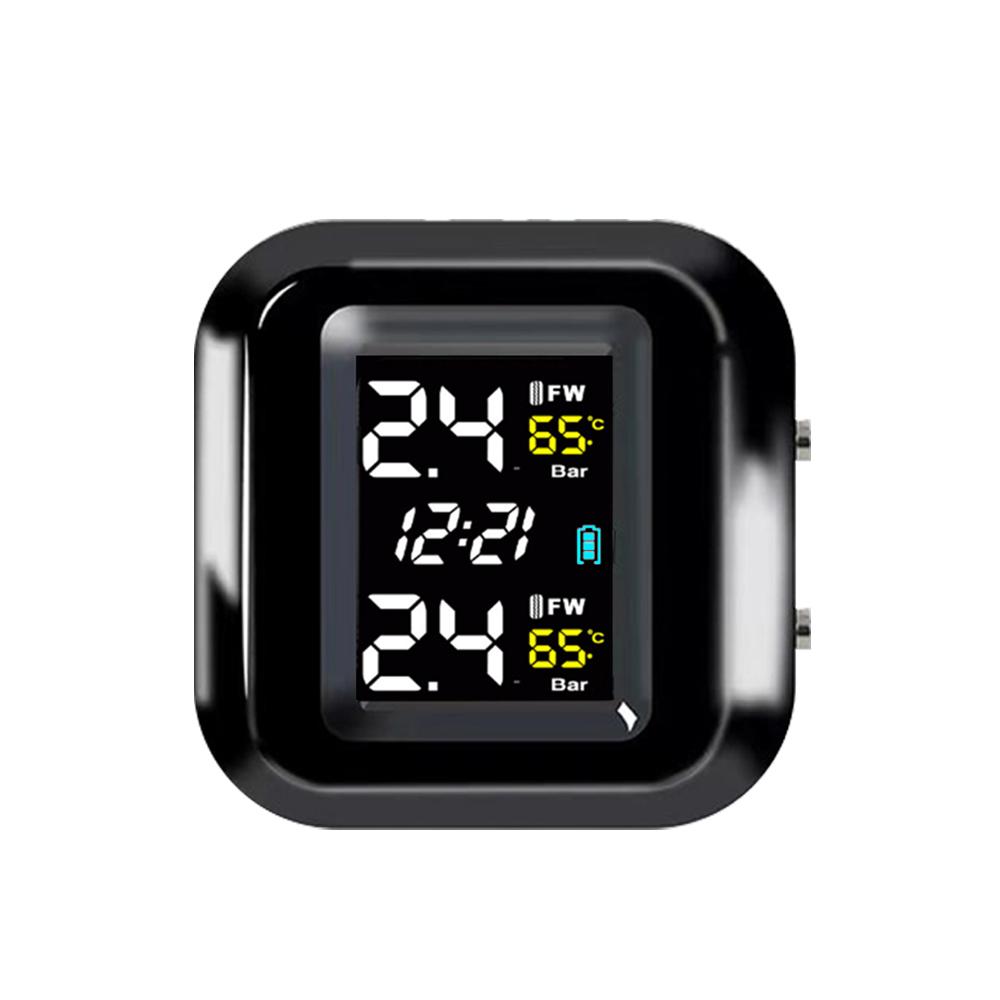

LCD digital display, nice and compact
Simultaneously monitor two wheels, tire pressure and tire temperature.
Psi and bar tire pressure units can be switched arbitrarily, which is universal in the world.
Adjustable alarm pressure value, suitable for two wheels of different models.
Magnetic USB charging port can quickly charge it at any time.
Specification:
Model Name: M6
Item Type: Alarm Systems & Security
Origin: Mainland China
Material: ABS + PC
Color: Black
Voltage: 5V
Host size: 50*50*28mm/1.97*1.97*1.10;
Host receiving frequency: 433.92 MHz
Host receiving sensitivity: 110-110dbm
Host working temperature range: -20~75 ℃
Adjustable range of high and low pressure alarm value: 0.3-6.2 bar (5-90 psi)
Sensor working temperature: -30~+80 ℃
Sensor pressure monitoring range: 0-8bar (116psi)
Sensor pressure accuracy: 0.0.1bar (1.5psi)
Temperature sensor precision: ±3℃
Transmitting power of sensor: <10dbm
Sensor transmission frequency: 433.92 MHz
Sensor size: 21x17x17mm/0.83x0.67x0.67; (height x diameter)
Sensor weight: 8g
Sensor battery model: CR1632, replaceable
Sensor battery life: 2 years (1-2 hours per day, normal travel time)
Voltage: 5V
Item Width: 13cm
Item Weight: 200g
Item Height: 4.3cm
Item Length: 16cm
External Testing Certification: CE
Bracket installation instructions
1. Unscrew the 2 screws and put on the motorcycle/electric vehicle/bicycle to tighten;
2. Point the bracket mounting head to the position you need, and make sure the bracket is firm;
3. Install the tire pressure receiver on the bracket, tighten and then lock;
4. Rotate the tuning knob by the ball head to move the joint to adjust the appropriate angle.
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Package includes:
1 X Host
1 X USB Cable
1 X Bracket
2 X External Sensors
1 Set X Parts
1 X Instruction Manual
