3mtr 12v Ready Made Split Charge Relay Kit with 140amp Intelligent Voltage Sense Relay
Applications:
This type of kit is suitable for Camper Vans, Motor homes, 4x4s, Day Vans, Mobile workshops,Cars or Boats.
Voltage sense systems are especially suited for modern vehicles with canbus controlled wiring as this type of kit does not need an ignition feed or any additional wiring and are very simple kit to install, all you need to do is to connect your starter battery to your leisure battery(s) by using the kit supplied, with very easy to understand fitting instructions and a wiring diagram.
The voltage sense relay simply detects the rise in voltage from you vehicles charging system to allow you to charge your leisure battery(s) while your engine is running. When your engine is switched off, the relay will isolate your leisure battery(s) from your main starter battery. So it does not drain your main starter battery and you will always be able to start your vehicle.
The kit includes comes pre-assembled with terminals:

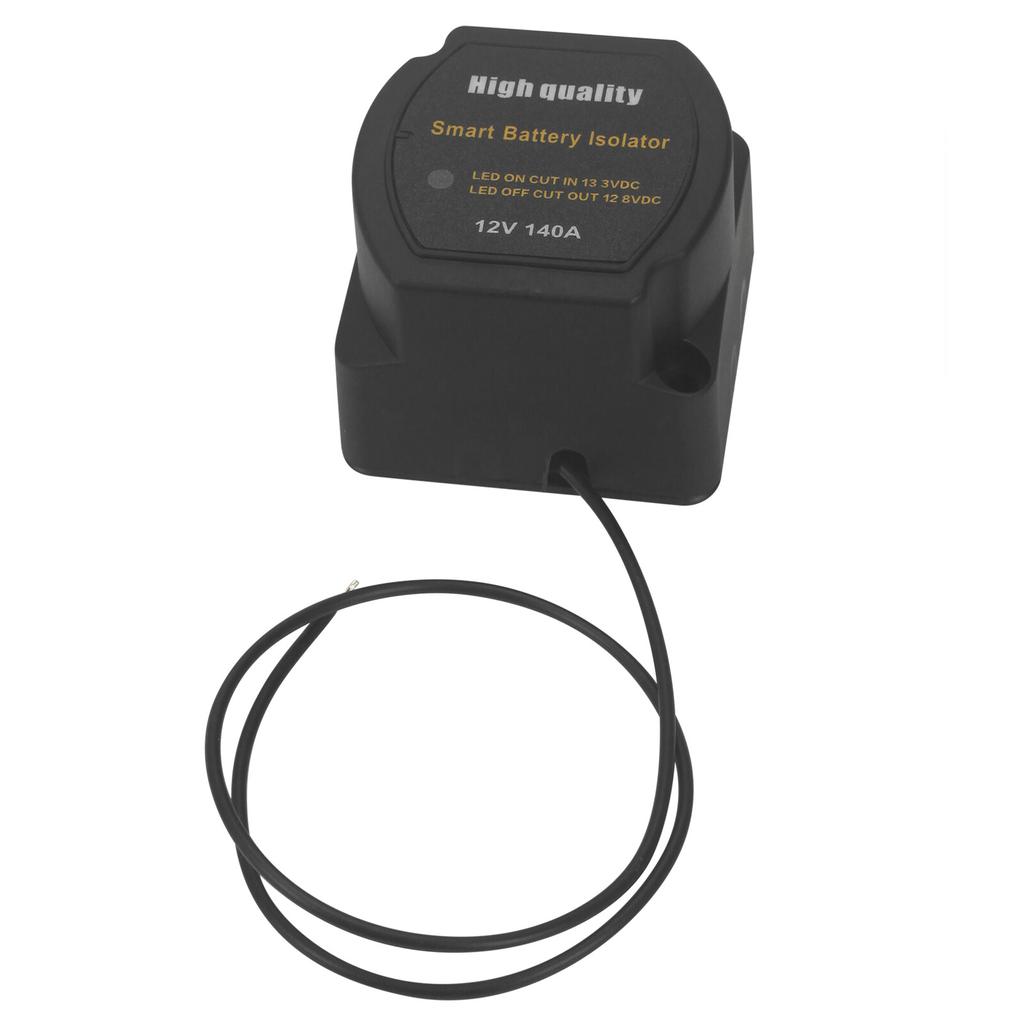

12v 140amp Intelligent Voltage sense Split Charge Relay
2 x 250mm red 70amp cable from Battery to fuse holder leads (Lead terminals pre-crimped)
1 x 500mm red 70amp cable Relay to fuse holder lead (Lead terminals pre-crimped)
1 x 2 metre 70amp Relay to fuse holder lead (Lead terminals pre-crimped)
1 metre 70amp of Black earth cable (Lead terminals pre-crimped)
1 Pair 8mm Post Type Battery Terminals
2 x MTA MIDI Fuse holders
4 x 60A MTA MIDI Fuses including 2 spares.
Red Black Heat shrink to protect all the connections.
10 x Cable ties
10 x adhesive cable tie fixings base to keep everything tidy.
15 x fixing screws
Easy to understand Fitting Instructions + after sales support if required
Please note: The 3 mtrs of Red cable supplied in this kit are made up of the 4 separate leads which is pre-assembled with terminals as described above.
Package Includes: (You will be supplied with everything you need to fit this kit)
12v 140amp Intelligent Voltage sense Split Charge Relay
3mtrs 10mm² Red PVC 70A@12V Power Cable
1mtr 10mm² Black PVC 70A@12V Earth Cable
1 Pair 8mm Post Type Battery Terminals
2 x MTA MIDI Fuse holders
4 x 60A MTA MIDI Fuses including 2 spares.
10 x Cable Crimps Terminals Connectors .
Heat shrink to protect all the connections.
10 x Cable ties
10 x adhesive cable tie fixings base to keep everything tidy.
10 x fixing screws
Easy to understand Fitting Instructions + after sales support if required
