Product name: 12V Water pipe heating cable/self regulating heat trace cable
Starting current: 0.5m:1A; 1m:2A; 2m:4A; 5m:10A
Voltage: 12V(Note:for 12V, do not beyond 5 meters, redundant length will not heat up.)
The cable will not over heat, average temperature will be 30~60 C degree.
Power:25w/m
Feature: The self regulating heating cable is with low voltage, that can be powered by many types of DC power supply, such as the car/truck batteries and so on
It's used for heating applications, freeze protection, heat trace. It's very soft and easy to wrap on the small pipes.

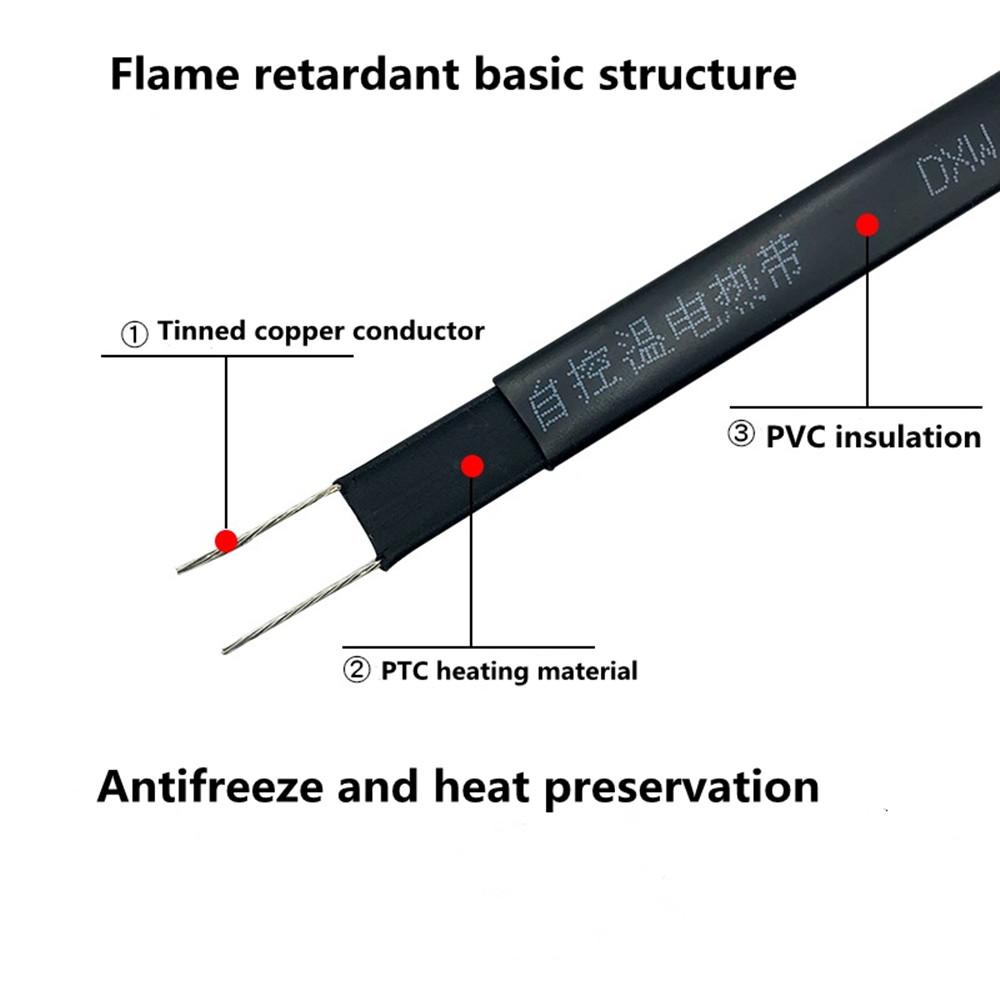

Structure:
1. Pure copper conductor
2. PTC heating element
3. PVC insulation
Minimum installation temperature:-30°C
Max Enduring temperature:105°C
The cable is Designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.
The cable is very easy to install, suit for metal and plastic water pipes.
Installation steps:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape.DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).
3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 12V. The heat trace system is finished.
