Feature:
1. Support Voice Service: Use this terminal to connect with ordinary wired desk phone and standard SIM card to make local, domestic and international calls.
2. Reverse Polarity Signal: GSM desktop caller with reverse polarity signal, can be connected to a billing device or use a computer billing device.
3. Multi Group IP Setting: automatic IP function, multi group IP setting, using GSM 4G cell phone SIM card, without changing the original dialing habit, easy to use.
4. Strong Signal Reception: GSM ID dialer is easy to install, simple to operate, strong signal reception, clear call setting, long service life and stable performance.
5. Widely Used: GSM caller is widely used in remote villages, mountainous areas, houses with weak signals, public telephone stores, offices, telemarketing, ships, trains and other mobile places.
Specification:

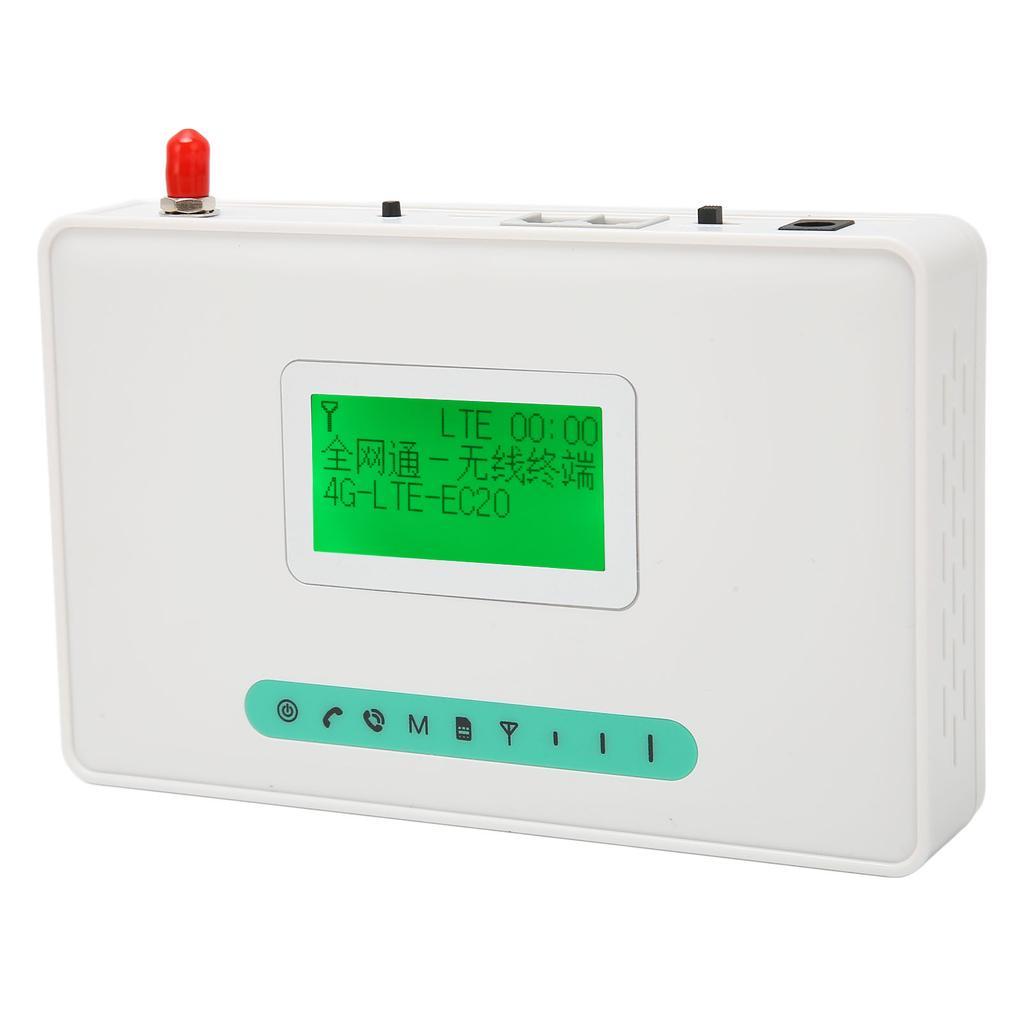

Item Type: Fixed Wireless Terminal
Material: ABS
Installation: No need to invest in ground wired line, support 4G/GSM cell phone SIM card. Easy installation
Voice Services: Support International and Domestic, Local, Fixed/Mobile Voice Services
: Do Not Change the Original Dialing Habits, and the Habits of Ordinary Telephone Landlines Are the Same
Antipodal Signal: With Antipodal Signal, Can Be Connected to the Fare Register or Use a Computer Fare Register.
Watchdog: Inbuilt Watchdog Circuit on Duty. Automatically Detects the Running Status of the Device, and Restarts Automatically when a Fault Occurs
No Error: DTMF Transmission Mode, the Caller ID Error is 0
IP Function: Automatic IP Function, Multiple Groups of IP Settings
Calling Party: Calling Party IP Prefix of Fixed Long Distance Calling, Such As 17951, 17911, and 193, etc.
Permission Setting: Permission Setting of Incoming Call of International, National, and Local Calls
Code Preset: Preset Local Area Code, Local Number Segment, and Forbidden Number or Number Segment
Encryption Settings: Such As PIN, PUK Encryption Machine Card Locking Function
LED Lights: Display Signal, Standby State, Working State and Other Information
Caller ID: Yes
Interface form: RJ11
TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
EC25 AF:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Recording Function: None
Signal Sensitivity: <-104DBM
Transmit Power: <2W
Antenna Power: >1.5db
Power Supply: 5V 1A
Equipment Power: <5W
RJ11 Tone Frequency: 450HZ
RJ11 Feed Current: 20MA to 40mA
RJ11 Reversed Polarity: Supported
RJ11 Call: DTMF
Working Environment Temperature: Minus 20℃ to 50℃
Operating Environment Relative Humidity: 10 to 90%
Product Size: L x W, Approx. 15.5 x 10cm / 6.1 x 3.9in ( Manual Measurement, Slight Error May Exist )
Package List:
1 x Fixed Wireless Terminal
1 Plug
1 x Antenna
1 x Antenna Receiver
1 x Phone Line
1 x User Manual
