About this item:

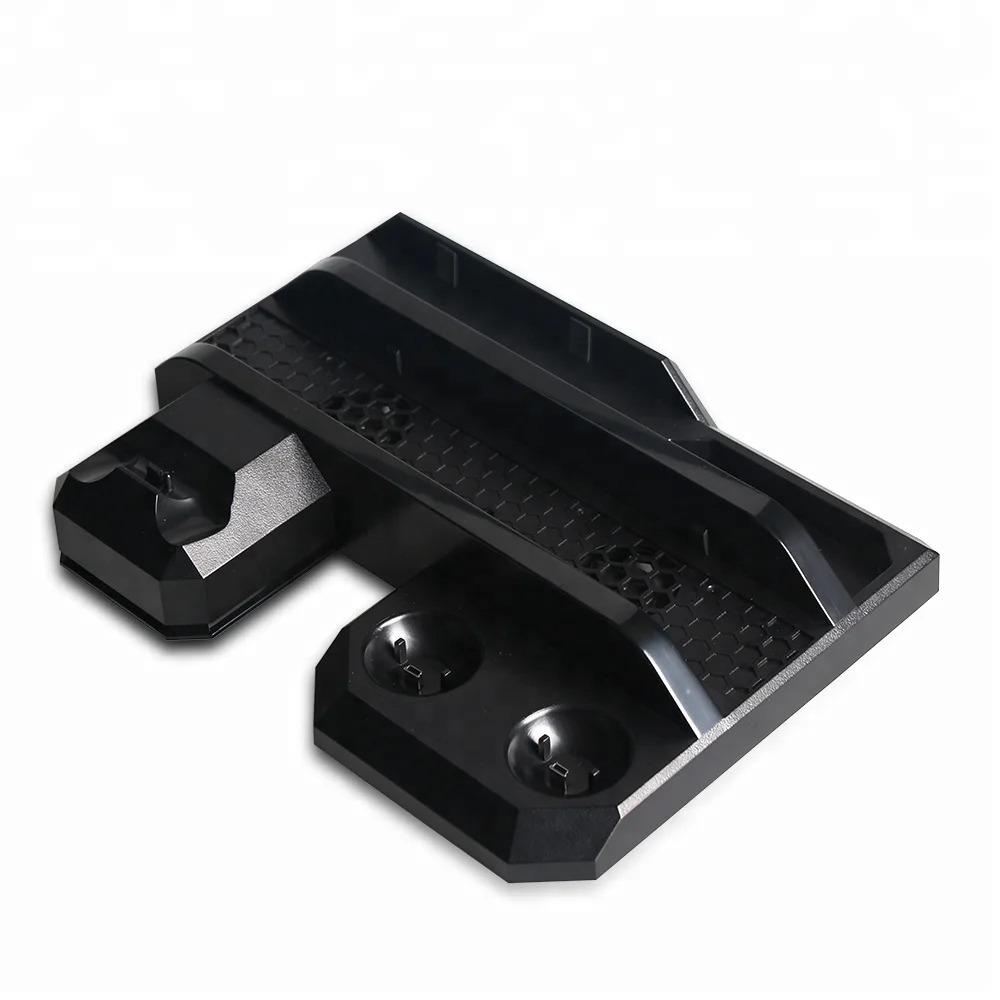

1.Sony PS4 Slim Pro charging station, multifunctional vertical cooling bracket, charging station, showcase bracket
2.Compatibility: Vertical support for PS4, PS4 Pro, PS4 Slim, and PS VR controllers
3.Unique design: The cooling fan at the station reduces the temperature of the control console
4.Space saving: Whether you are playing games or not, it is ideal to support placing the controller in the charger. You can make your PS controller and PS VR looks very clean
5.Powerful - CNA base station can simultaneously load PS4 controllers and support two mobile PS consoles charger
6.Easy to install - only use two USB cables to power the PS4 series drivers, no need to add.
Product Description:
1.This product's host base is compatible with old PS4 hosts, PS4 Slim hosts, and PS4 Pro hosts
2.Built in two high-speed fans to accelerate the air circulation inside the PS4 host, achieving the purpose of heat dissipation
3.This product can accommodate SONY's original PS VR host
4.This product uses two USB ports on the PS4 host for power supply, without the need for additional power supply
5.This product can simultaneously charge one original PS4 controller and two PlayStation Move controllers.
Product Specification:
1. Voltage: USB3.0 5V/1.5A (connected to the console via USB cable)
2. Current: When charging a single original PS4 controller, the maximum charging current can reach 800mA; Maximum load
The current of two original PS controllers charged simultaneously is 420 milliamperes (with the fan turned off).
3. Charging time: The original PS4 controller can fully charge for 2.5 to 3 hours, while the original PS Move controller is 3.5 to 4 hours
4. Maximum fan speed: 5000 ± 10% rpm; Maximum air volume: 12.6 CFM
5. Material: ABS.
6. Package size: 30.5*21.5*6.8cm
7. Item weight: 0.676kg
How to use it
1. Place this product horizontally, Micro USB side up, and PS4 console vertically on the fan bracket (if
The slim PS4 console must be fixed with auxiliary screws. Install the PS4 console upside down and tighten it firmly.
Attachment nut).
2. The lever switch in the DELA section
Product instructions for use：
1.Place the fan base on a well-ventilated platform, and then place the PS4 console vertically on the fan base.
2.Put the front of the PS4 host on the same side as the micro-USB interface surface of the fan base. (Note: If it is a PS4 slim host, you need to use the supplied screw to fix it. First install the PS4 slim host upside down and use the supplied screw to lock it tightly.) If it is an old PS4 console or a PS4 Pro console, it is not used, it is directly fixed by the rubber on the inside of the base.
3.The L base has two built-in fans with high wind speed, which are controlled by a toggle switch in front of the base. Off is to turn off the fan, L gear is low wind speed, and H gear is high wind speed.
4.On the left is the card slot where the PS VR host is placed, which can place SONY's PS VR conversion box.
5.There is a device on the right side of the base that can directly place the original PS4 handle and charge it：
A. When the PS4 handle is not connected to the PS4 host, charge the PS4 handle, the PS4 handle indicator light is orange and the breathing type is shining, and the full handle light is off. Put the handle that is fully charged on it and only light up yellow and go out.
B. When the PS4 handle is connected to the PS4 host, the indicator light is always blue. If you need to see if it is in the charging state, you can press and hold the PS button, The handle battery symbol appears in the lower right corner of the TV screen. See if the three-cell power indicator in the battery symbol is changing. If it does not move, it means it is full.
6.When charging, the PS4 handle obtains the electrical energy required for vibration through the rechargeable battery, so the indicator light may change from red to green.
7.The PS4 handle battery has a protection function, and it will only start charging when the battery is below a certain value.：
A. For example: the power of the PS4 handle is more than 70%, and it will not be charged if it is plugged into the charging base. Because of the problem of the charging life of the rechargeable battery, charging starts when it is full, which reduces the battery life in disguise. Assuming that the battery power of the PS4 handle is only 20%, plug the PS4 handle into the charging base to start charging. After 2-3 hours of charging, the battery power reaches 80%, and the handle indicator light has been orange breathing and shining. At this time, suppose you unplug the handle for some reason. When you plug it in again, because the battery is already high, it will not continue to charge, and the PS4 handle indicator will light up and the yellow light will go out. Of course, if you continue to charge during the charging process and have not unplugged it, it will stop after it is 100% full, and the PS4 handle indicator light will go out.
8.If you accidentally touch off the USB charging cable while charging and then plug it in, if the power exceeds 70% at this time, the charging will stop. In this case, the PS4 handle will definitely be used for a shorter time than the natural one.
9.There are also two devices on the right side of the base that place the PlayStation Move handle and charge it. When the PlayStation Move handle is normally charged, the LED indicator under the PlayStation Move handle keeps flashing and turns off after it is full.
Product precautions:
1.Please place this product on a level surface and in a well-ventilated area during use.
Please use the USB cable used with this product.
2.This product is a ventilation and heat dissipation product, so when using this product, do not block any side of the ventilation grille.
3.Do not insert any objects (especially metal components) into the heat dissipation holes, as this can cause a short circuit in the circuit of the fan base and cause damage to the product.
When cleaning this product, please use a dry cloth to wipe it. Do not use water or alcohol to wipe this product, as it may allow water or alcohol to flow into the product through the cooling hole, causing short circuit damage to the product.
4.When cleaning this product, please disconnect it from the PS4 host.
5.When not using this product for a long time, please unplug the peripherals and input plugs of each port connected to this product.
6.This product is prohibited from being stored or used in damp or high temperature environments.
7.If this product is rained, soaked, or damaged, please stop using it and promptly send it to a professional repair department for repair. Do not disassemble it on your own.
8.Do not let children play with the fan base.
