Features:
Built with premium components and designed for durability.
Dshot support for smooth and precise motor control.
Versatile receiver compatibility, including ELRS, CRSF, SBUS, IBUS, PPM, and Spektrum DSMX.
Suitable for a wide range of models, from 5 inches to 15 inches and traversing aircraft.
Exclusive support for Betaflight software, ensuring optimal performance and customization options.
Specifications:

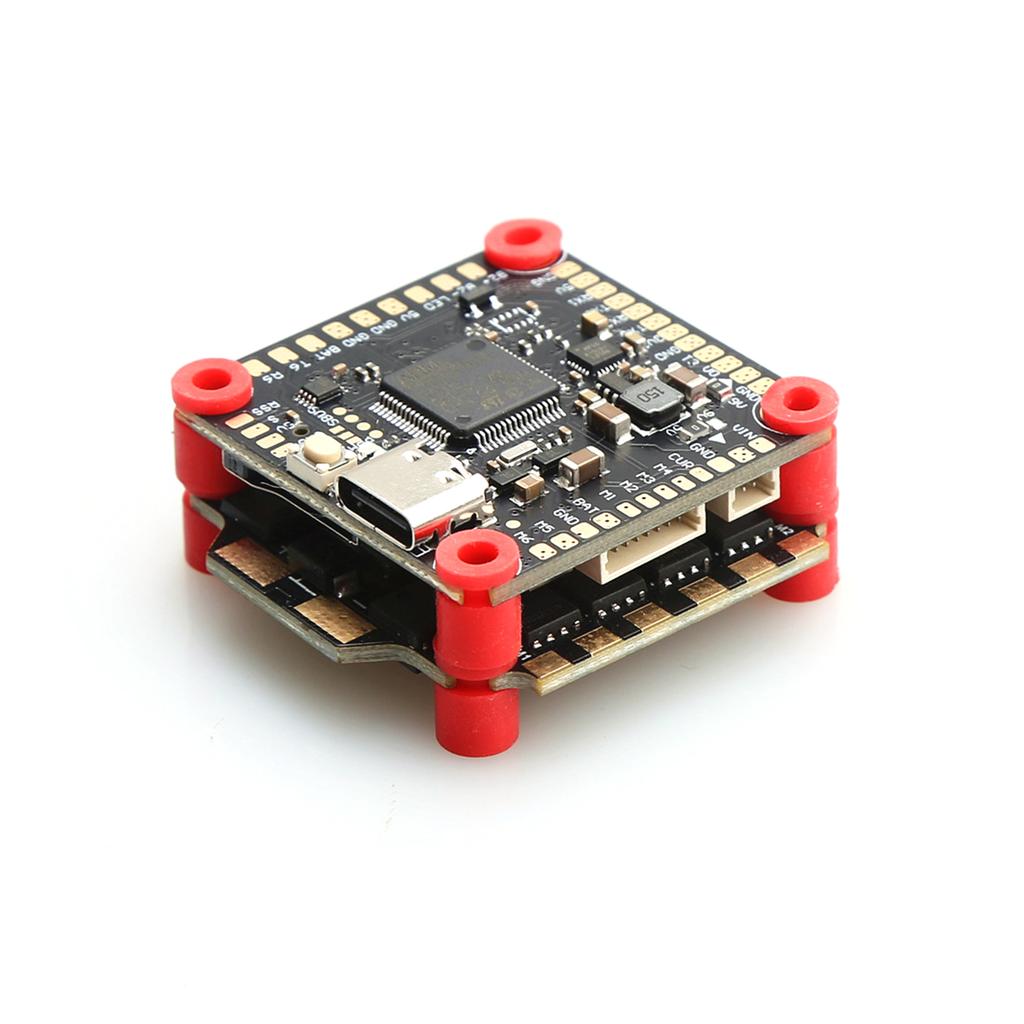

F405 V3 Flight Control FC
Project Name: F405 V3 Flight Controller
Size: 3.6*3.6cm/1.42*1.42inch
Weight: 13g
Installation hole: 3.05*3.05cm/1.2*1.2inch
STM32 F405 microcontroller
Dshot support
Drag and drop OSD configured through Betaflight
Gyroscope: MPU6500
Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc
MicroSD card black box
BEC: 5V3A/9V3A
Car video filter (only 5V to VTX and camera)
Suitable models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
Please note: The F405 flight controller only supports Betaflight software and does not support INAV firmware
?

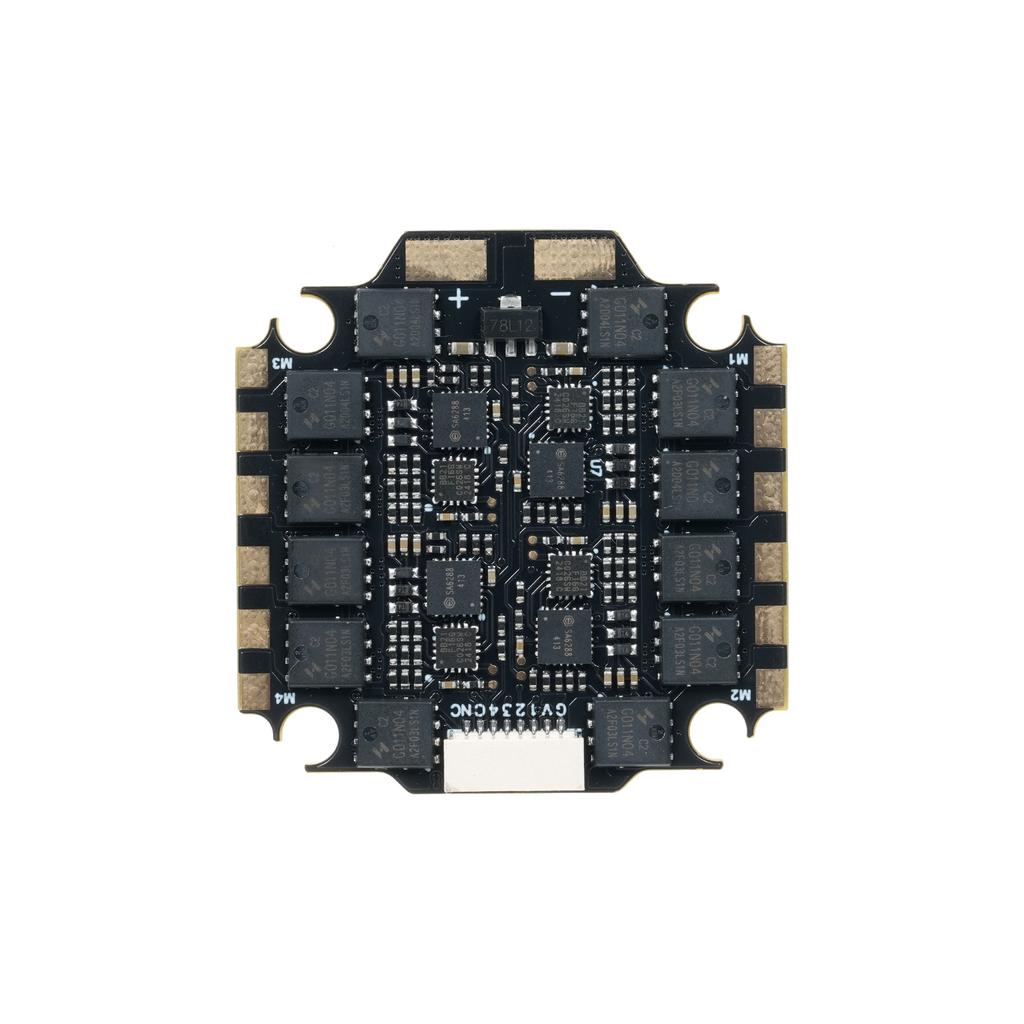

60A V3 4in1 ESC HV 2-6S
Size: 4.1*3.9*0.5cm/1.61*1.54*0.2inch
Aperture: 3.05*3.05cm/1.2*1.2inch (after installing the shock absorber ball, the aperture is 3mm)
Firmware: BLHELI-S
Weight: 15g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 65A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
?
Package Information:
Package Size: 12*9*1cm/4.72*3.54*0.39inch
Package Weight: 41g
Package List:
1 * F405 V3 60A Stack?Set
