Digital Multimeter 6000 Counts DC/AC Ammeter Voltmeter Non Contact True RMS NCV HZ Ohm Capacitance Meter LCD Voltage Ohm Diode Tester High Precision for Live Wire Testing
Feature:
1. High Performance and Precision: This digital multimeter offers high performance, reliability, and precision with intelligent auto-ranging for AC/DC current and voltage measurements. Ideal for demanding circuit maintenance and testing, it ensures accurate results every time.
2. Advanced Gap Measurement: The dc/ac ammeter voltmeter features a high-precision gap measurement head, utilizing precision casting technology to reduce magnetic field interference. This ensures accurate and reliable readings for all your measurement needs.
3. Large Clear Display: Equipped with a large screen, the true rms ncv hz ohm capacitance meter provides clear, shadow-free, and reflection-free characters. This makes it easy to read measurements, even in challenging lighting conditions.

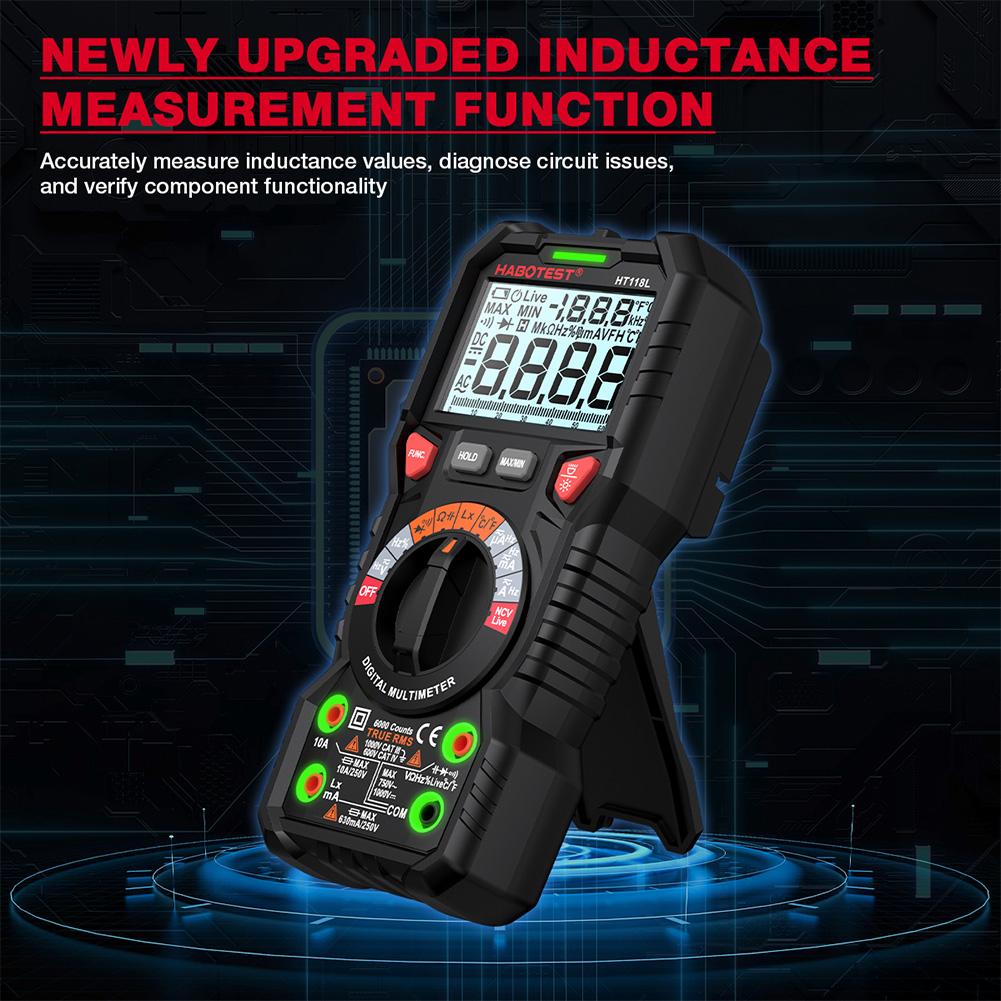

4. Inductance Measurement Function: The voltage ohm diode tester includes an inductance measurement function, perfect for quick circuit diagnostics and component status verification. This feature enhances your ability to troubleshoot and maintain electronic systems efficiently.
5. One-Handed Operation: Designed for ease of use, the voltage detector allows for single-handed operation with intelligent auto-ranging. This simplifies the measurement process, making it convenient for both professional and amateur electricians to perform accurate testing and maintenance.
Specification:
Display Type: Digital display
Origin: Mainland China
DIY Supplies: ELECTRICAL
Overview:

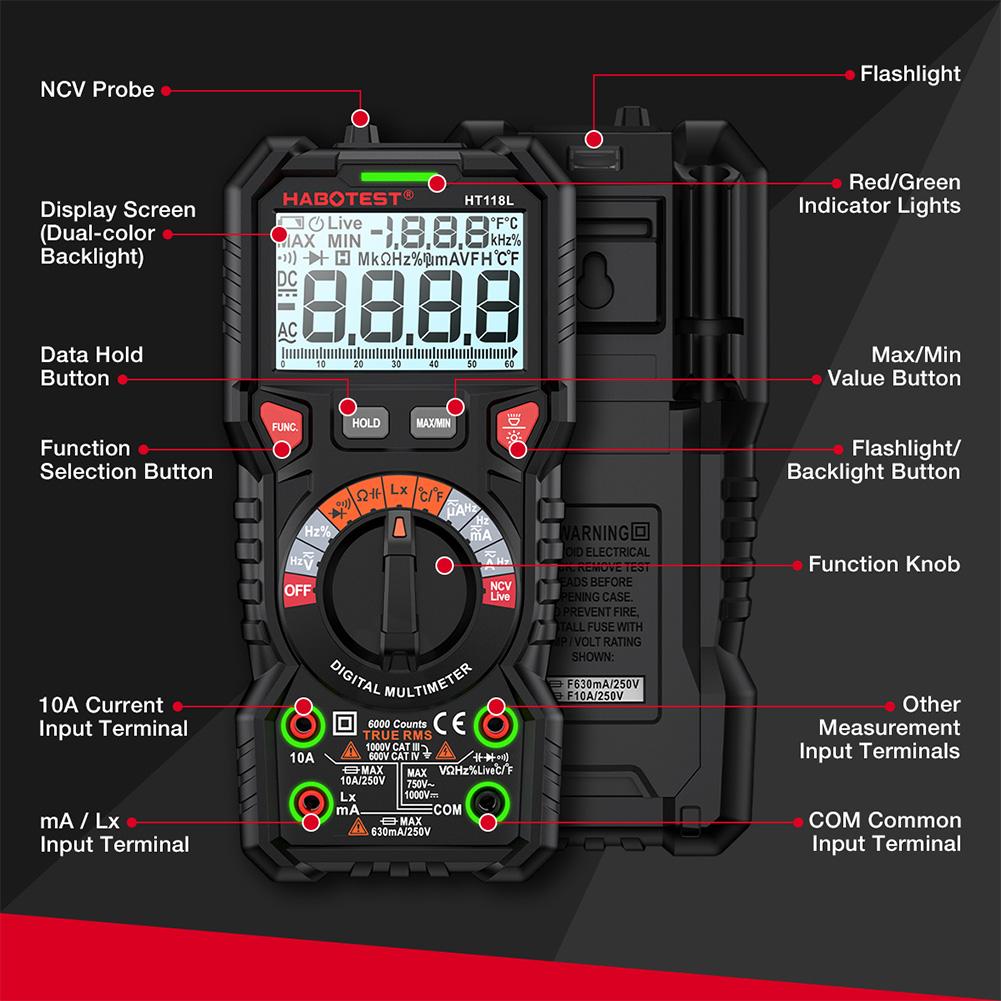

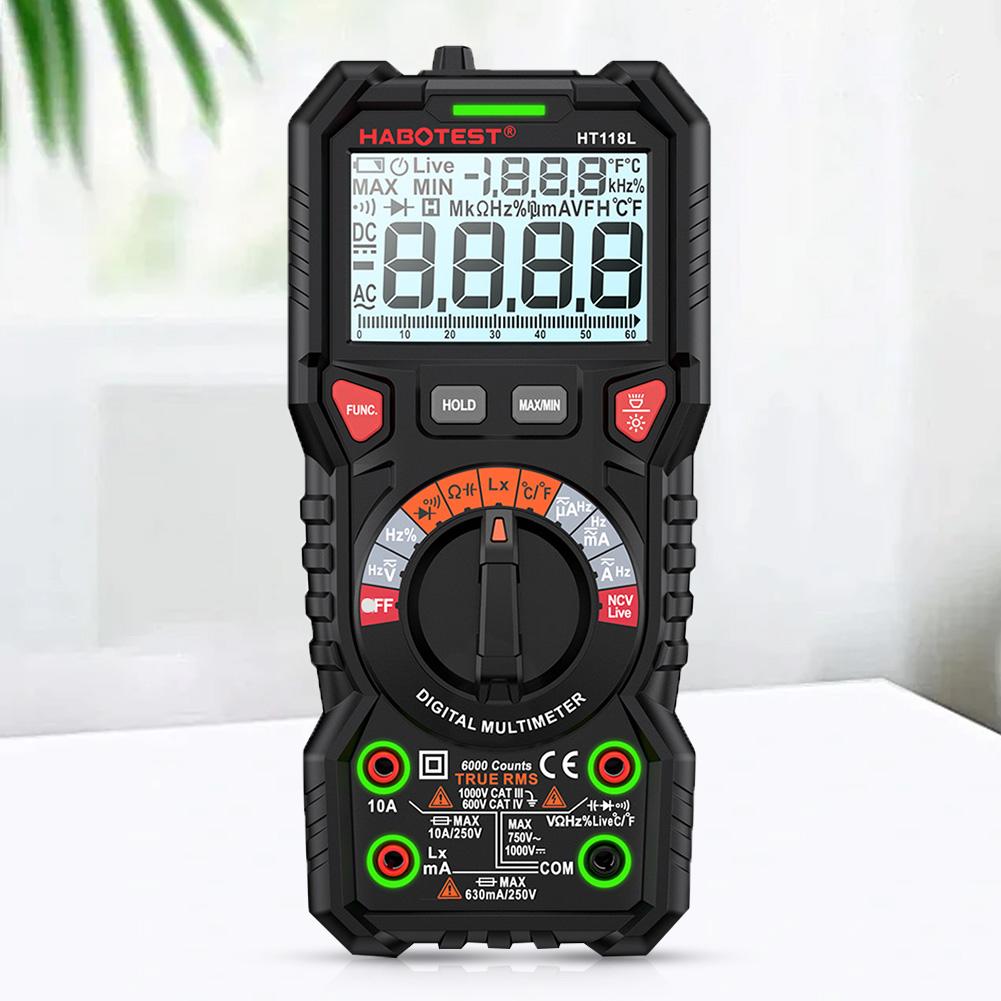

HT118L is a new generation of true RMS high performance auto-ranging digital multimeter with analog bars. The large screen LCD adopts a new display and function layout, providing clearer readings and enhanced user experience. It includes high voltage light alarm and input terminal light prompt functions, which is an ideal choice for professional electricians, hobbyists or home appliances

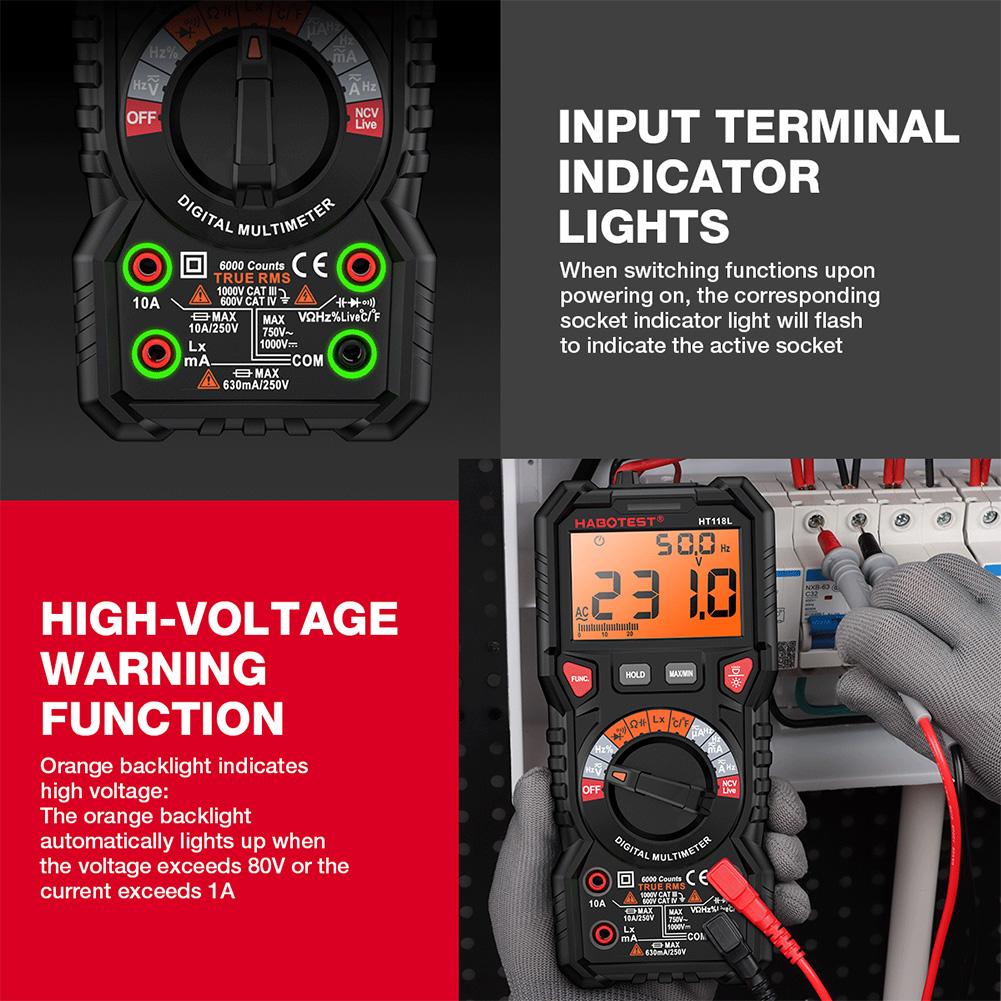

Input terminal prompt: When power is on or the function is switched, the corresponding input terminal indicator light flashes to prompt the user to insert the test lead into the input port.

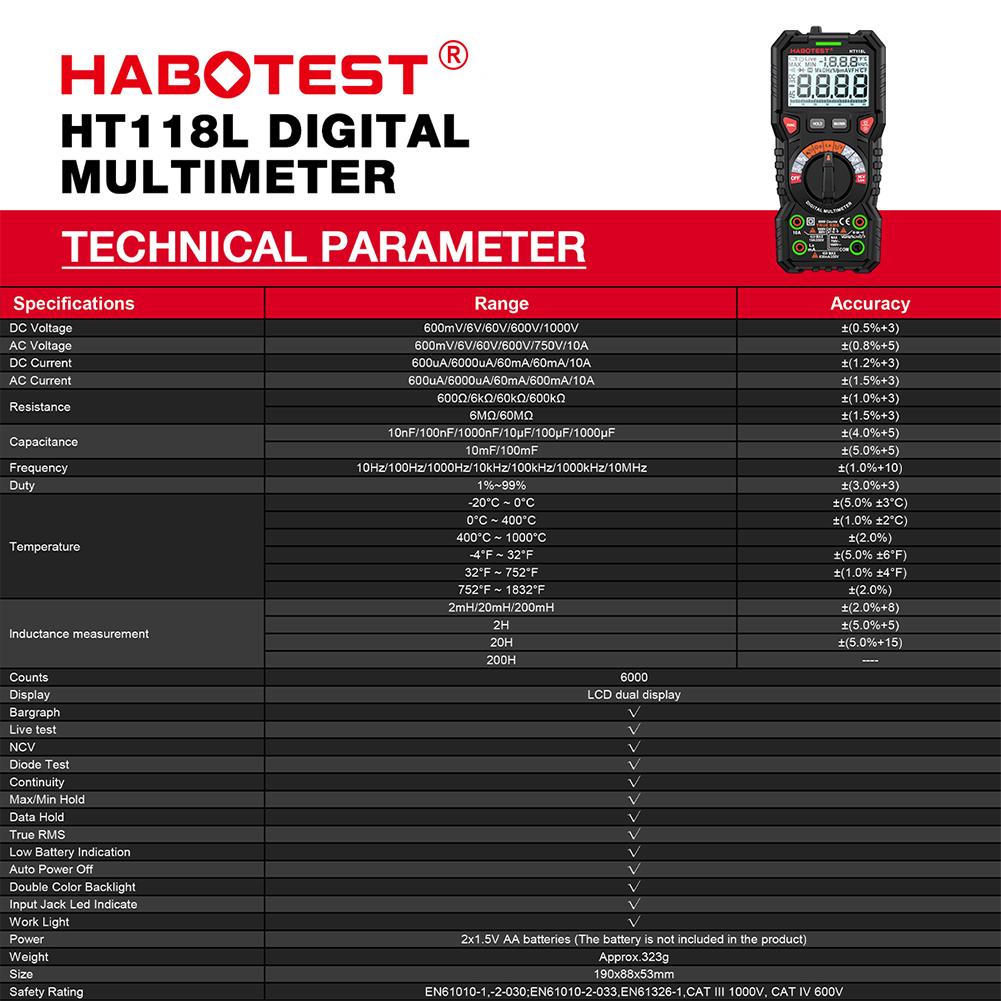

Specifications:
Brand: HABOTEST
Model: HT118L
Product Name: Intelligent Digital Multimeter
Color: Black and Red
Casing Material: ABS
Operating Environment Conditions:

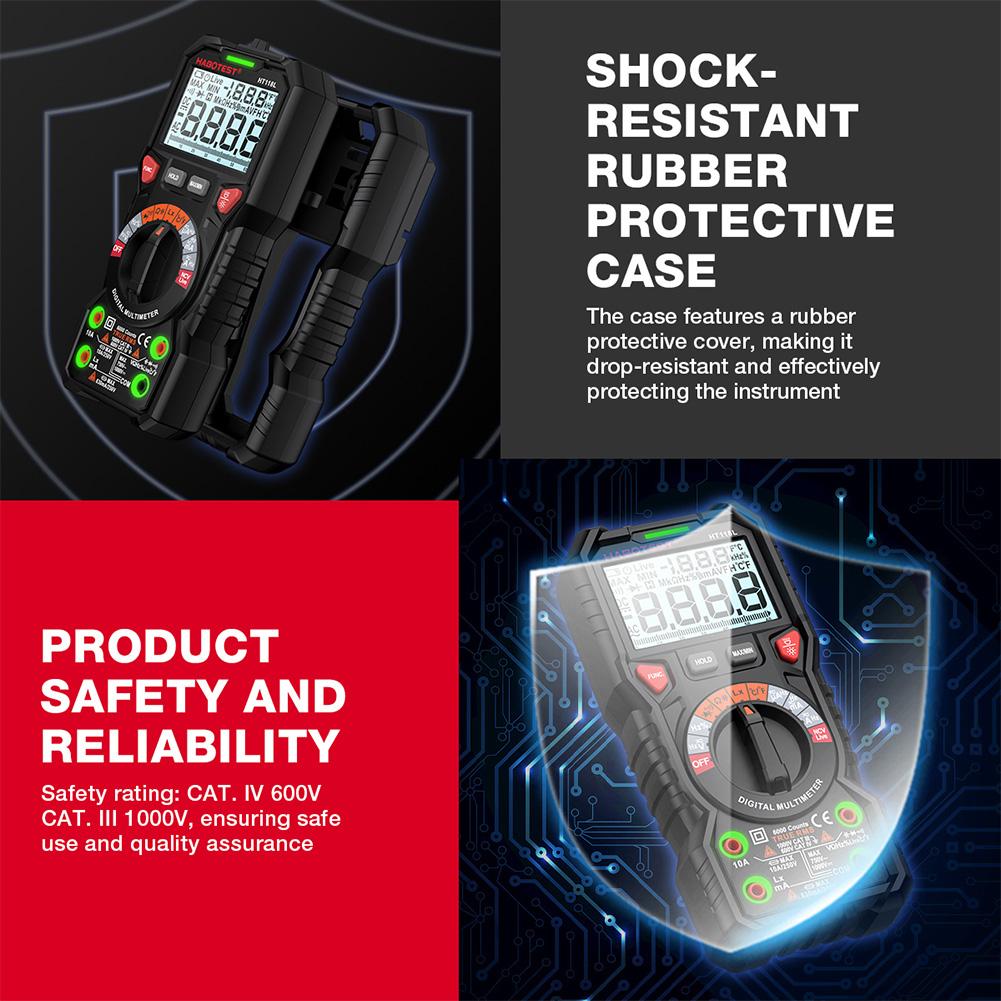

CAT. IV 600V; CAT. III 1000V
Pollution Degree: 2
Altitude: <2000m
Operating Temperature and Humidity: 0~40°C (<80%RH, <10°C non-condensing)
Storage Temperature and Humidity: -10~60°C (<70%RH, remove the battery)
Temperature Coefficient: 0.1 Accuracy/°C (<18°C or >28°C)
Maximum Voltage between Measurement Terminals and Ground: DC 1000V/AC 750V

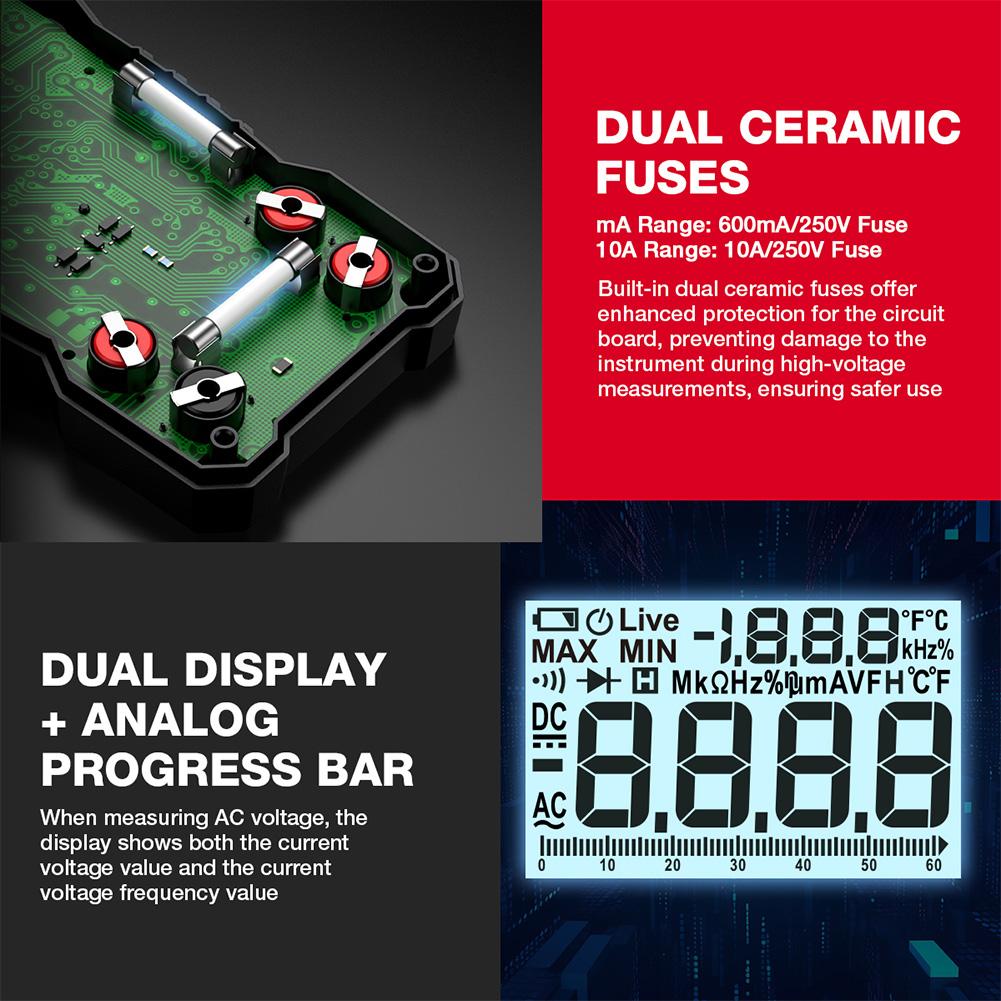

Fuse Protection:
mA Range: F600mA/250V Fuse
10A Range: F10A/250V Fuse
Sampling Rate: About 3 times/second
Display: 6000 count display. Automatically displays the unit symbol according to the measurement function
Over-range indication: displays "OL".
Low battery indication: When the battery voltage is lower than the normal working voltage, the battery symbol is displayed.
Input polarity indication: Automatically displays the "-" sign.

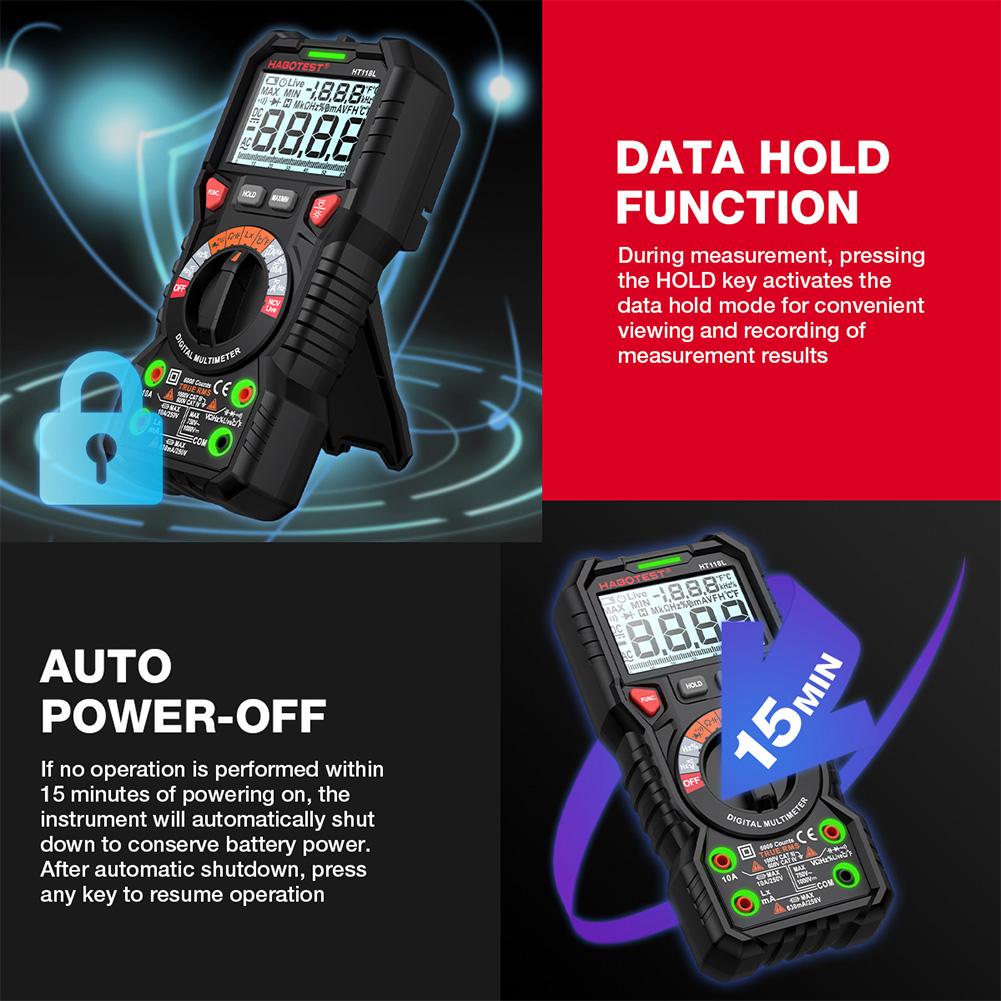

Automatic power off: If there is no operation within 15 minutes after power on, the meter will automatically shut down to save battery energy. After automatic power off, press any key to resume working state.

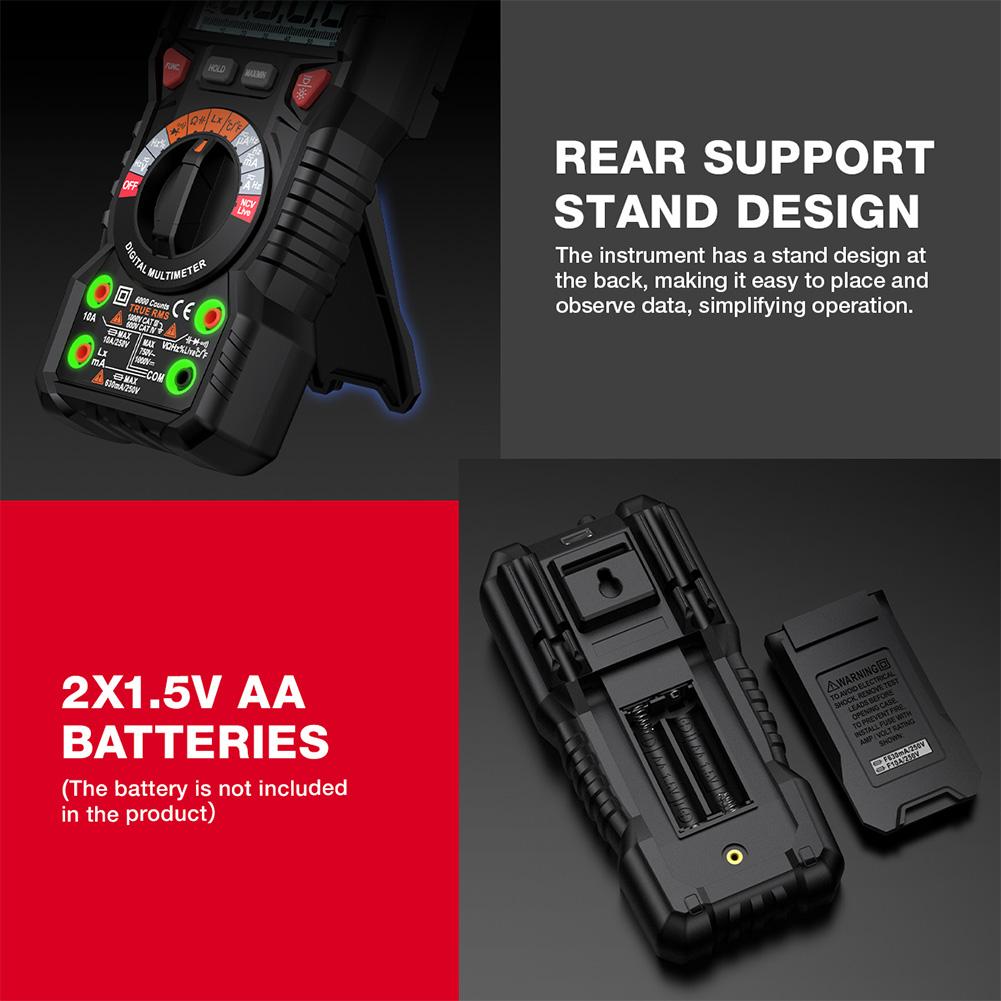

Power supply: 2 1.5V AA batteries (not included, need to be prepared by yourself)

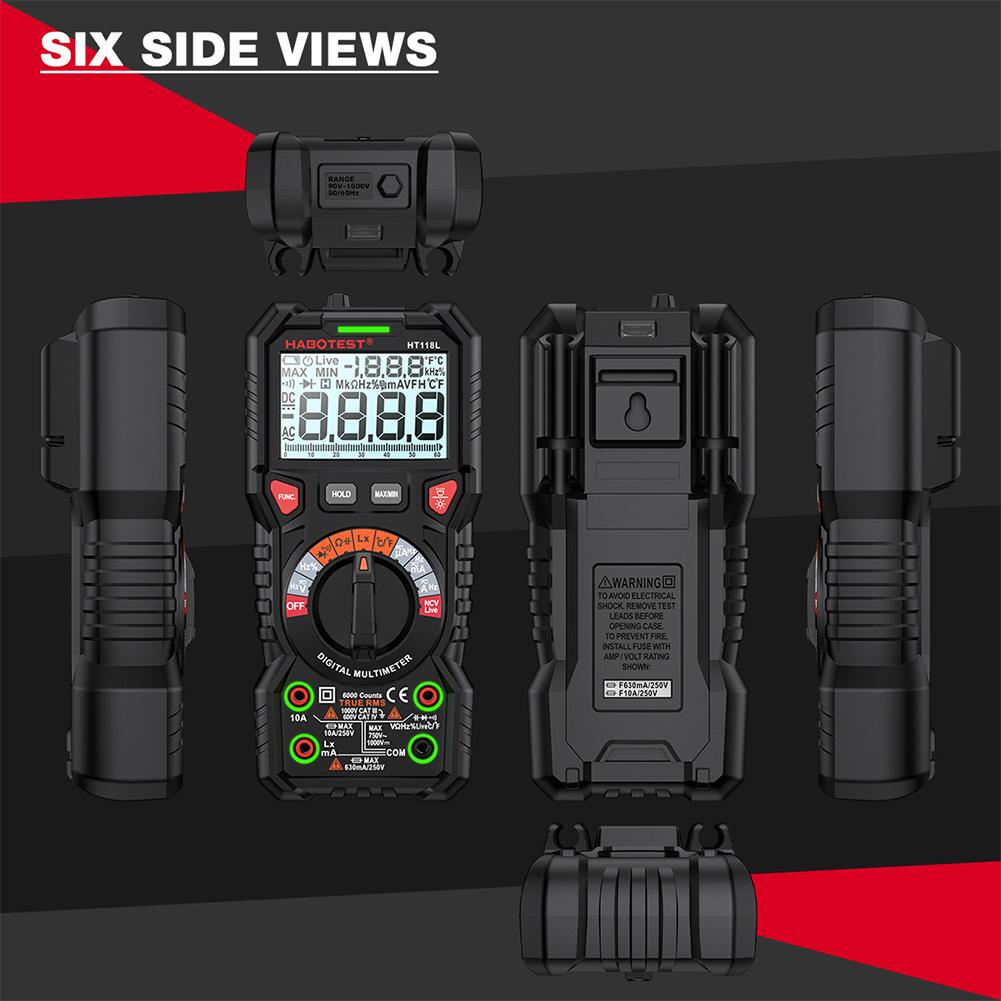

Product size: about 190.00x88.00x53.00mm
Product size: 7.48x3.46x2.09inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
