Product Information
Material : Anti-flammable PC
Type : Graphene PTC heating film
Working voltage : 220-240V , 50/60Hz
Rated power: 220W/m2 ±10%, this is 50cm width, so it is about 110w/m±10%
Length of far-infrared wave : 9.3~10.1um
Cut line: each 12.5cm (can cut each 12.5cm per piece)
Feature: self regulating output power; energy saving; anti-overheat, healthy to human, full heating area heats more evenly.
What is PTC Heating Film?
The PTC means Positive Temperature Coefficient, it refers to kinds of specia materials, the electrical resistance of the PTC materials will increase when the temperature of the material is raised, and also the electrical resistance of the material will reduce when the temperature is reduced.
The PTC heating film is a new type and updated warm floor product based on the ordinary heating film.
Temperature limiting function of electric heating film. The working principle is that if the temperature rises, the resistance will increase, so that the current will decrease, and the temperature will not increase endlessly. Conversely, if the temperature drops, the resistance will decrease, the current will increase, and the temperature will not decrease endlessly. Thus, the temperature is controlled within a safe and reasonable safety range. To achieve the effect of energy saving and power saving.
Thermostat
The thermostat is suitable for the temperature control of floor heating cables or heating films, which can keep the room at a suitable temperature and meet the requirements of a safe, energy-saving and comfortable environment
Warning:
Please do not rotate the control knob since the factory default has been calibrated !
Specification:
Voltage: 220~240VAC 50/60Hz
Power consumption: 5VA
Temperature control range: 5~40℃
Temperature limit range: 25~55℃
Power save mode temperature: 5℃
Temperature deviation: ±0.5K
Ambient temperature: -5~50℃
Degree of protection provided by enclosure: IP20
Outer sensor: Length of cable: 3M

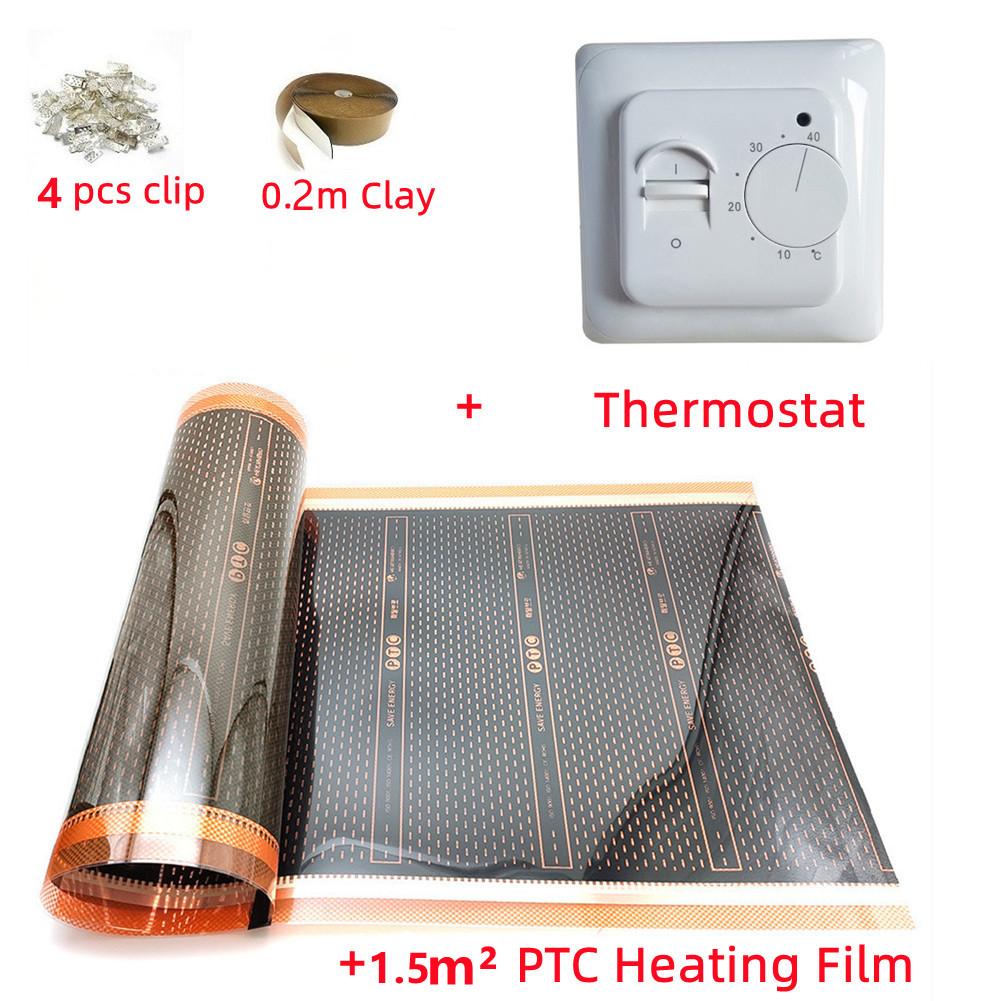

Package includes :
heating films
1 pc x thermostat (external sensor included)
clamps
insulation paste
