Feature:
1. EXCELLENT PERFORMANCE: The built in high power thyristor chip and DCB ceramic base plate have small size, stable performance and is reliable. Wide input range, premium output regulation accuracy and strong anti interference ability.
2. LIGHT INDICATOR: The relay has light indicators, and the green LED is the power indicator, the red LED is the output regulation indicator.
3. BUILT IN SCR: Linear compensation function, output characteristic curve is linear. Harmonic interference is small, and SCR protection circuit is built in the product.
4. LONG LIFE SPAN: The relay has additional output maximum limit and regulation function and slow start regulation function to effectively defend the voltage safety module and prolong the service life of voltage regulation module and load.
5. WIDE APPLICATION: This relay is suitable for electric furnace, injection molding equipment, fan motor, water pump motor, industrial lighting, etc.
Specification:
Item Type: 3 Phase Solid State Relay
Product Material: Metal, PBT, DCB ceramic
Output Current: 150A
Input Control: 90-250V AC
Control Current: 5-20MA
Maximum Output Voltage: AC 480V
Output Load Voltage: 24-480V AC
Peak Voltage: 600V AC
Ambient Temperature: - 30 to 70 ℃
Coefficient is Determined According to the Load Type of the Equipment You Want to Carry:
Resistive Load: 60%
Inductive Load: 30%
Application:
Heating: Electric furnace, injection molding equipment, thermal molding, textile equipment, infrared heating, drying system
Motor: Fan motor, water pump motor, common motor soft start
Lighting: Public lighting, industrial lighting, stage lighting
Others: Transformer, inductor coil, welding, electroplating
Package List:
1 x

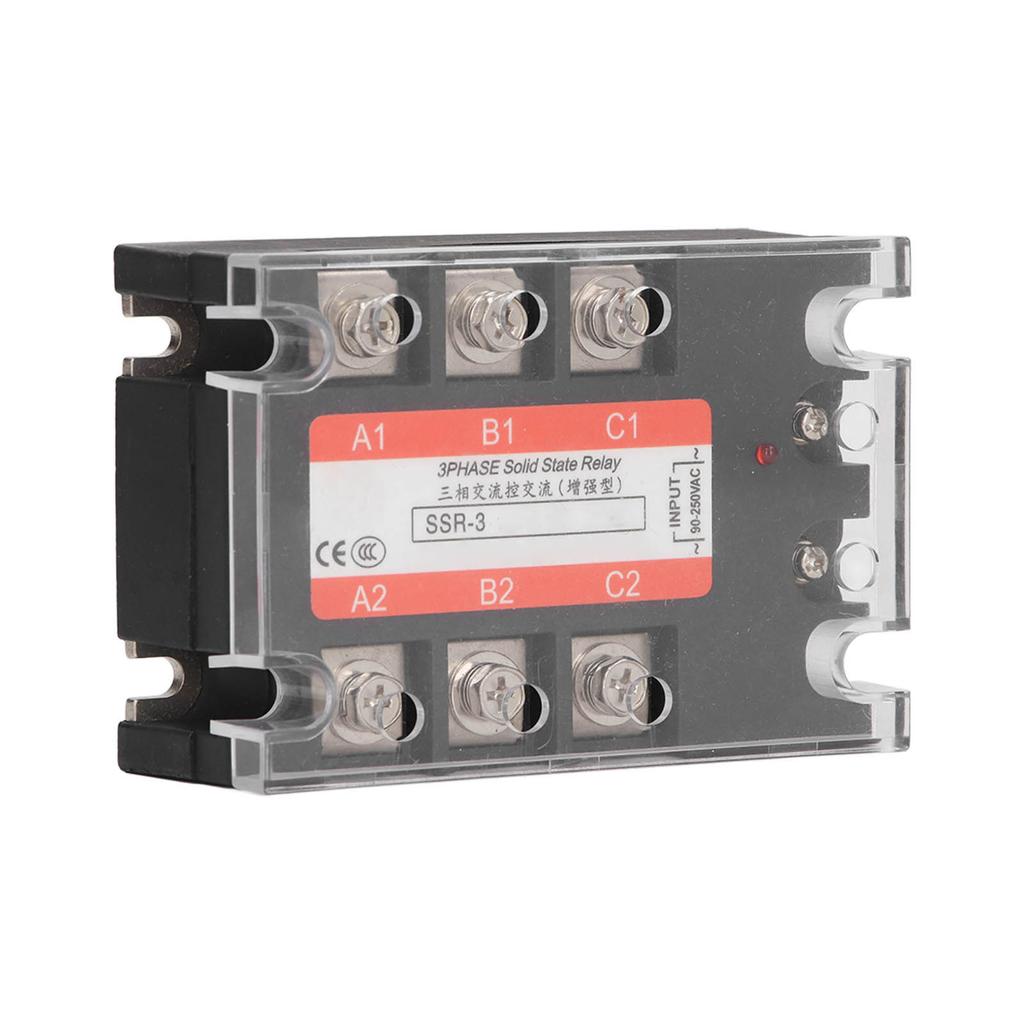

3 Phase Solid State Relay
