Feature:

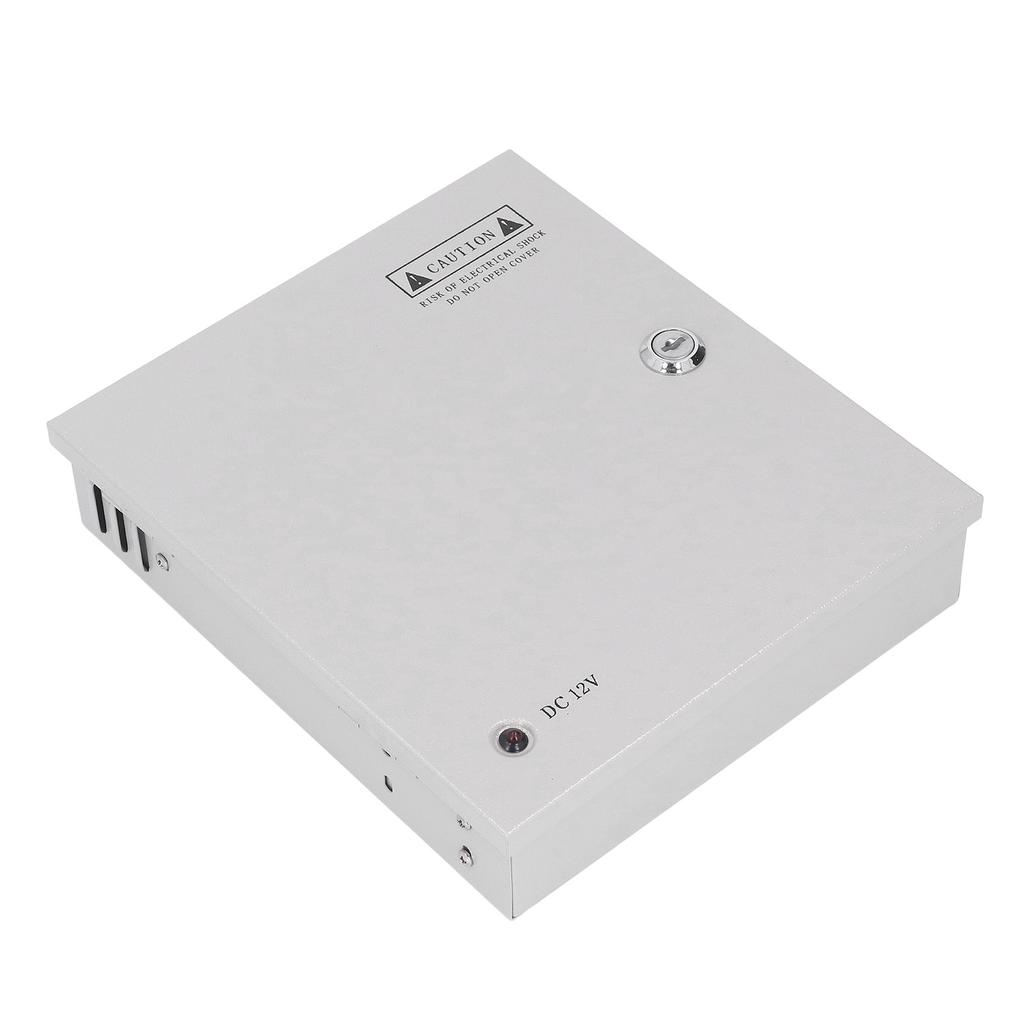

1. High in Security: Lock design. The power box is equipped with an independent lock and key, which can prevent rain and electric shock.
2. Stable Output: Double cover core fuse, fuse damaged during startup will not affect the performance of other output lines, very stable.
3. Heat Dissipation: Multiple cooling vents on both sides of the power box to effectively improve the heat dissipation of the power supply.
4. Wide Application: Widely used in LED, lighting, security monitoring, 3D printing, automation equipment, data, lamps, instruments, etc.
5. Quick to Install: Clear in panel, the power supply box enables convenient installation that can be quickly finished in several minutes.
Specification:
Item Type: Power Supply Box
Ripple: 80MV
Output Voltage and Current: 12V 10A
Input Voltage: AC100-120V 110V or AC220-240V 220V.
Output Voltage Accuracy: ± 2%
Adjustable Range of DC Voltage: -5% ~ +10% of rated output voltage.
Work Efficiency: 80%
Leakage Current: 240V AC <1MA
Overload Protection: 105-150% burping mode, automatic recovery.
Overvoltage Protection: 100-135% diode clamping, output cut off, automatic recovery.
For EMC Standard Emission: EN5022 (CISPR22) CLASS B, harmonic: EN61000-3-2,3
For EMC Standard Anti Interference: EN61000-4-2,3,4,5,6,8,11, EN55024, Class A heavy industry standard
Operating Temperature and Humidity: - 15℃ ~ +70℃, 20% - 90%RH.
Safety Certification: CE, ROHS, FCC
MTBF: ≥ 824600 hours, MIL-HDBK-217F, 25℃.
Start, Rise and Hold Time: 1000MS, 30MS, 50MS.
Package List:
1 x
Power Supply Box
2 x Key
4 x Screw
4 x Accessory
2 x Fuse Tube
Note:
Please pay attention to safety during installation.
