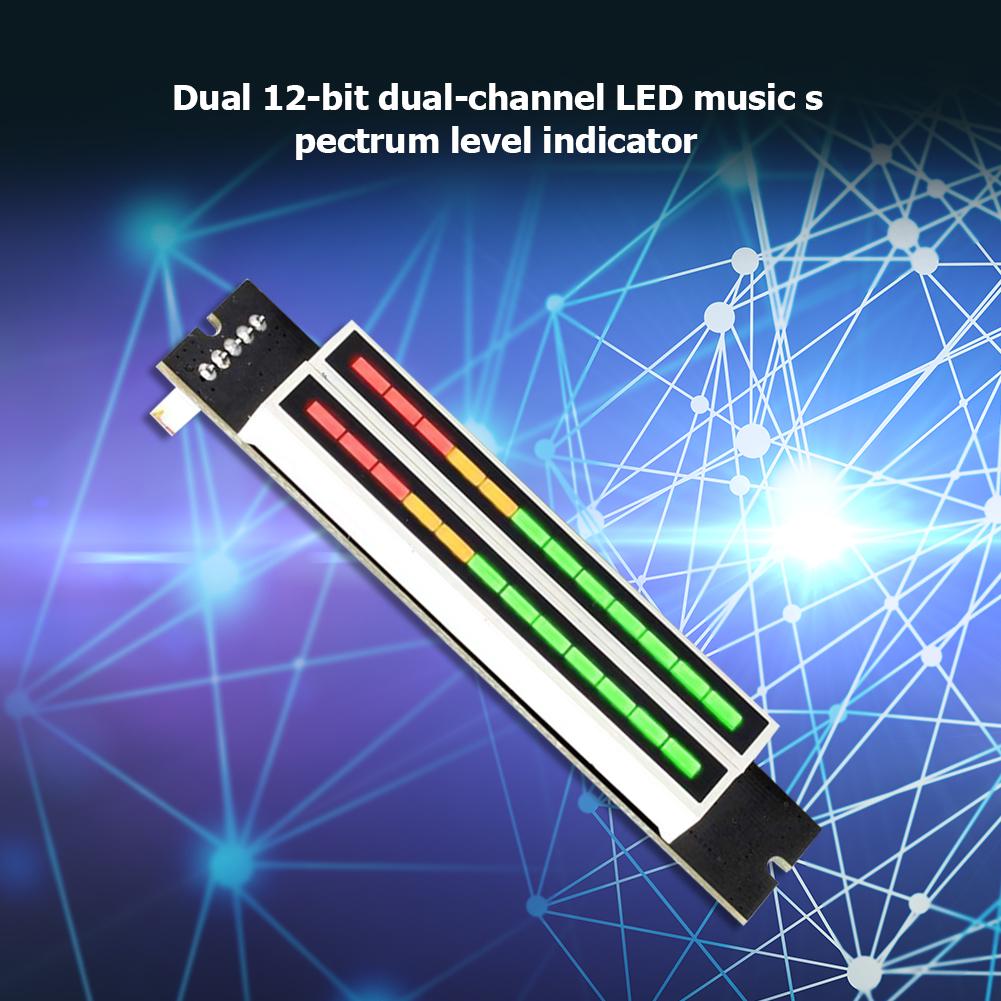

DC 7-12V Amplifier Board Mini Dual 12 Level Indicator VU Meter Stereo Adjustable Light Speed Board with AGC Mode
Feature:
1. 12-segment Tri-color LED: The LED light strip includes 12 segments in three colors (green, orange, and red) to provide a vivid display of music spectrum.
2. Adjustable LED Parameters: The rising and falling speeds, peak hold time, and peak falling speed of the LED lights can be independently adjusted according to your preferences.
3. Real-time Mode and AGC Mode Options: With an ultra-wide range of adaptive AGC algorithms, this indicator can deliver optimal results in real-time.
4. Easy to Install: With its small size, this indicator can be easily installed into small computer cases or other tight spaces.
5. Easy Operation with Single Button: With a simple interface and single button operation, the REV1.10 version also supports brightness adjustment to suit different lighting conditions.
Specification:
Working voltage: DC 7-12V/100mA
Light color: 7 * green+2 * orange+3 * red
Size: approximately 79 * 14 * 8mm/3.11 * 0.55 * 0.31 inch
Important note:
1. MCU in the sampling time-sampling, so that there is dual-channel simultaneous parallel input signal changes fast, the amplitude of the two light bar display may vary, this is a normal situation.
2. In extreme cases, there may be very slight high frequency noise. Recommended to replace the signal input line head position as dual-core shielded cable.
3. Operating voltage: 7-12v current can work in more than 100MA. Prohibited or voltage exceeds 12v positive and negative reversed, whether the person will cause light damage level
Display effect:
1. strip show+ after peak travel whereabouts
2. strip show after+ the disappearance of the peak travel
3. The strip display + (no peak display)
4. strip show+ right after the peak flow disappears
5. The strip display + (three lights)
6. striped marquee display + peak effect
7. Peak + strip show right jump lamp lights two bits whereabouts
Note:
Do not use under excessive pressure and do not connect the power cord in reverse.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
