Description:
brand new and high quality
Feature:

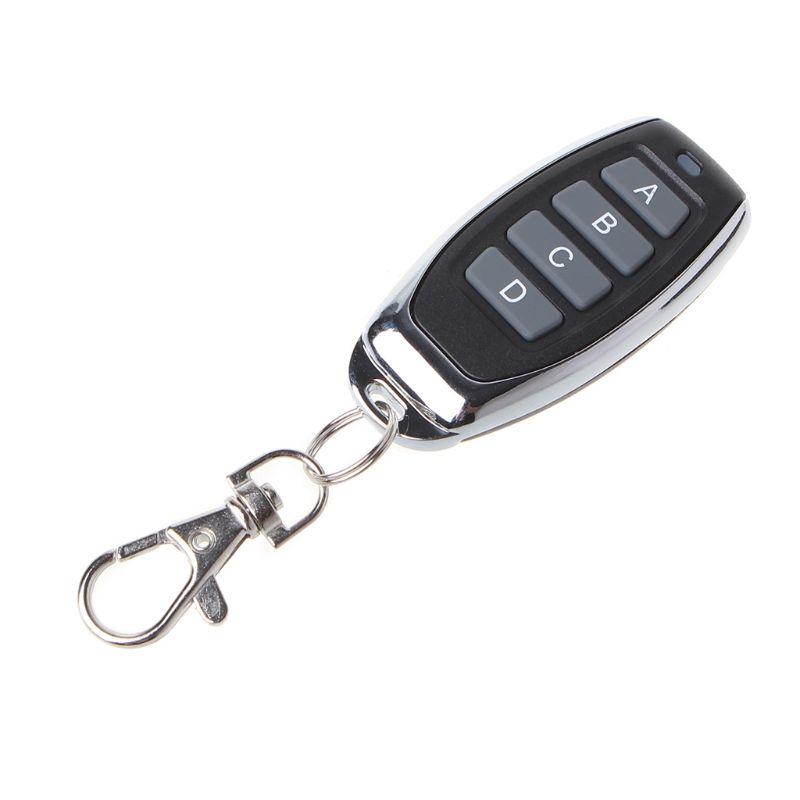

Remote Control:
The four-way remote control is a very widely used wireless control device. It uses microprocessor intelligent control. It can be used in garage door control, lighting control, remote control curtains, electric door locks, wireless doorbells, etc. It is simple, safe and .
The remote control has a small , and is suitable for remote control of access control systems, wireless modification of garage doors, intercom doorbells, remote control of car trunks, and wireless control of household appliance es.
The receiving sensitivity is high, the remote control is more than 50 meters away from the open ground, using fixed code wireless coding technology, no direction, and the es do not interfere with each other.
Receiver:
The contacts of the receiving board output independently, which is very suitable for directly controlling various loads.
Adopt fixed code wireless coding technology, no direction, and the es do not interfere with each other.
The circuit board on the receiving board has enough materials, and the power supply part of the circuit board uses a professional-grade ing power management chip, which has stable , low power consumption and high .
The fuse resistor and varistor can effectively protect the circuit board, which greatly improves the service life of the entire remote control .
Specifications:
Item Type: Receiver+Remote Control
Material: ABS+Metal
Size: receiver: 108x66x29mm/4.2x2.5x1.1in, remote control: 61x29x12mm/2.4x1.1x0.4in
Color: Black
Frequency: 433MHZ
Working voltage: AC85-250V
Remote control distance: 20-100m or more (open space)
Oscillation resistance: 820K
Contact capacity: less than and equal to 7A
Coding type: fixed code (2272 series chip), pad code
Output : four-way normally open and normally closed passive contact output
Quantity: 1 Set
Instructions:
Control the wiring of AC220V load:
The load receiving board for controlling lamps and generally chooses the self-locking working , the works independently and does not interfere with each other. Press the remote control button to pull in the corresponding . If you press the A button once to turn on, then press the A button again to turn , B, C, D are the same, the four channels can be turned on and independently. It is effective and does not affect other s. It can remotely control 4 channels at the same for time. It is recommended that each channel should not exceed 200W.
Control DC12V voltage wiring:
If you need to control other voltages, just change the DC12V in the figure to other voltages. If you control the load receiving board of lamps and , you generally choose the self-locking working .
Remote modification of garage doors and electric doors:
The receiving board generally selects the -locking jog working . The electric door has three manual buttons of "open, close and stop", and the three buttons of the remote control control the three pairs of contacts and three pairs of contacts of the three s of the remote control receiving board. Received on the "on, , stop" manual buttons respectively. The four-way remote control receiving board is provided, and three of them can be used. The for one can be used or used as a backup.
Remote control modification of the speed of the electric fan:
The receiving board generally chooses the interlocking working , the interlocking is that the alternately pulls in. If you press the A button, A is connected and locked and for always connected, then press the B button to disconnect A, B is connected and locked and for always connected, C button, D button and so on, four-way interlock, only one way to connect Pass; here press the D for key, which is the fourth way for the stop for key. At this for time, no matter which way ABC is connected before, press the D for key, the previously connected will be disconnected to achieve the stop function.
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 Remote Control
1 Receiver
