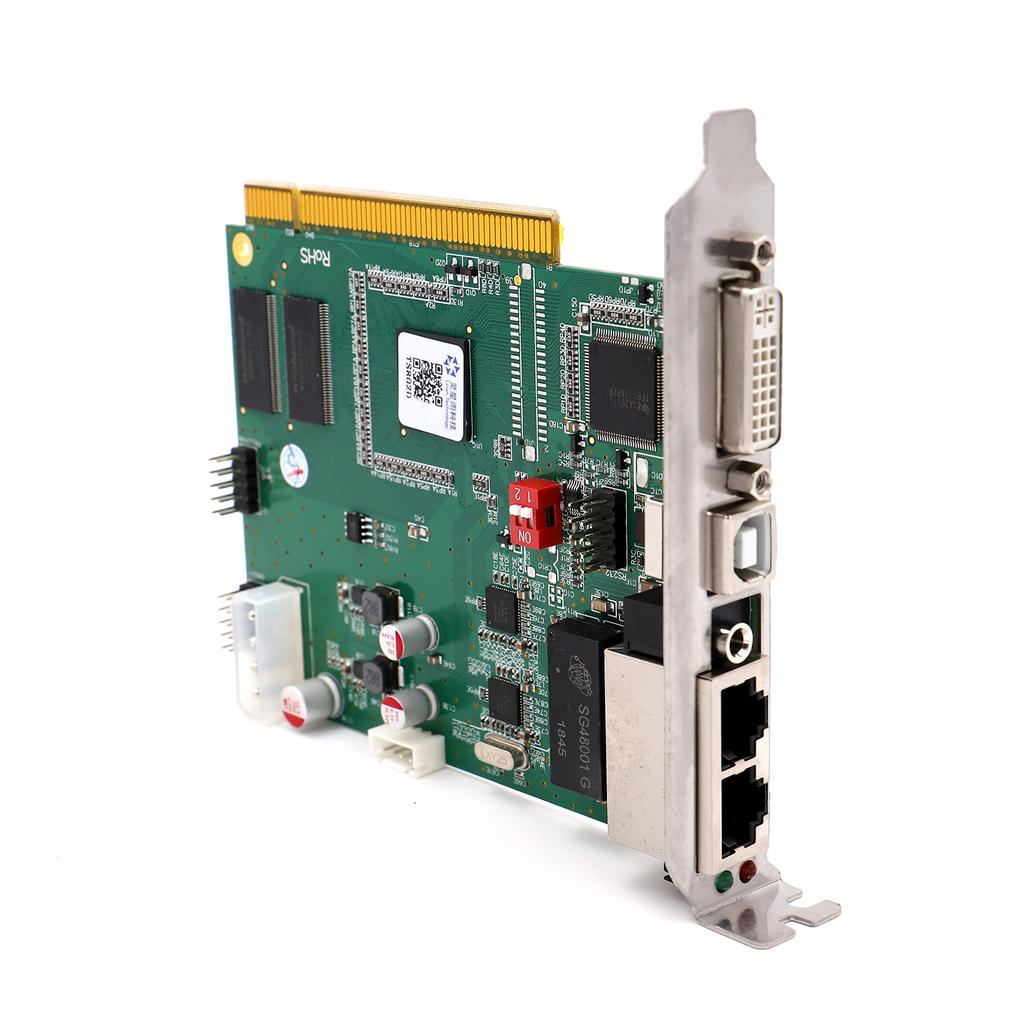

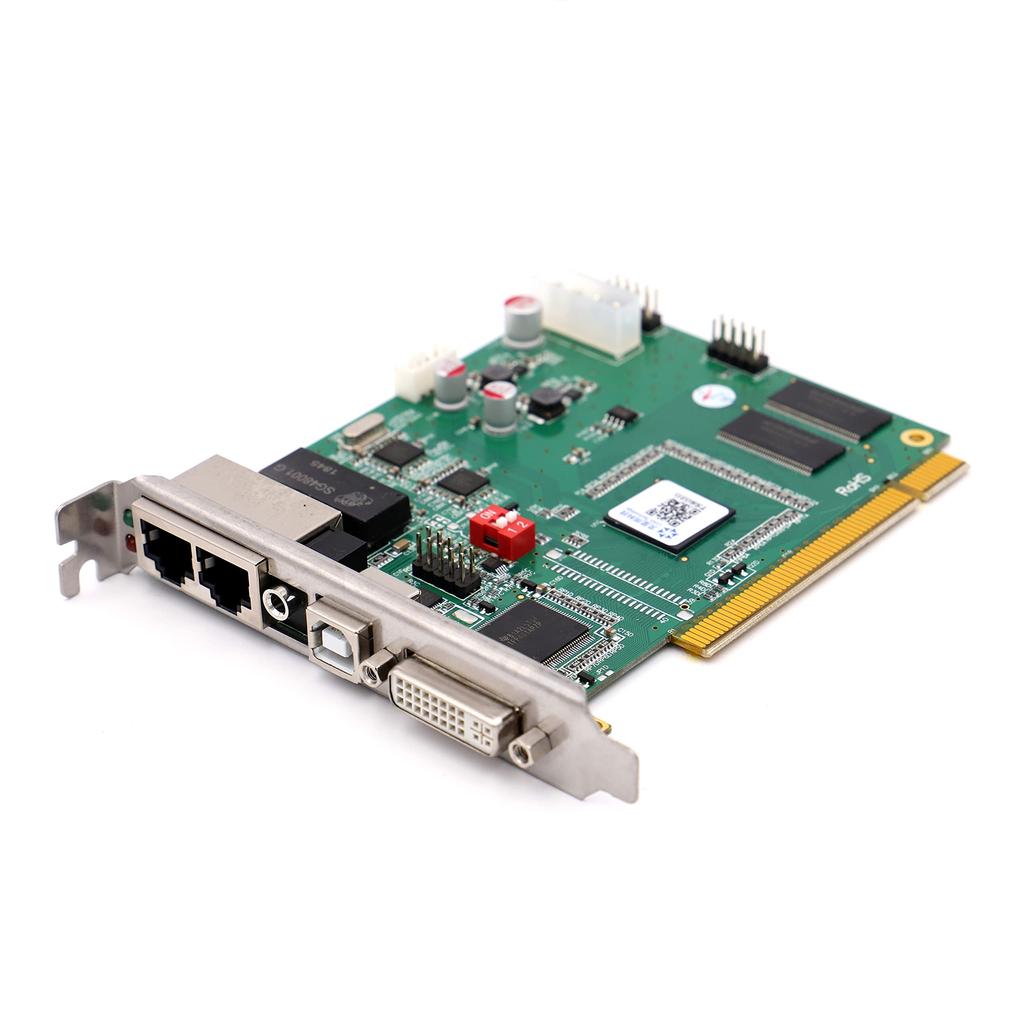

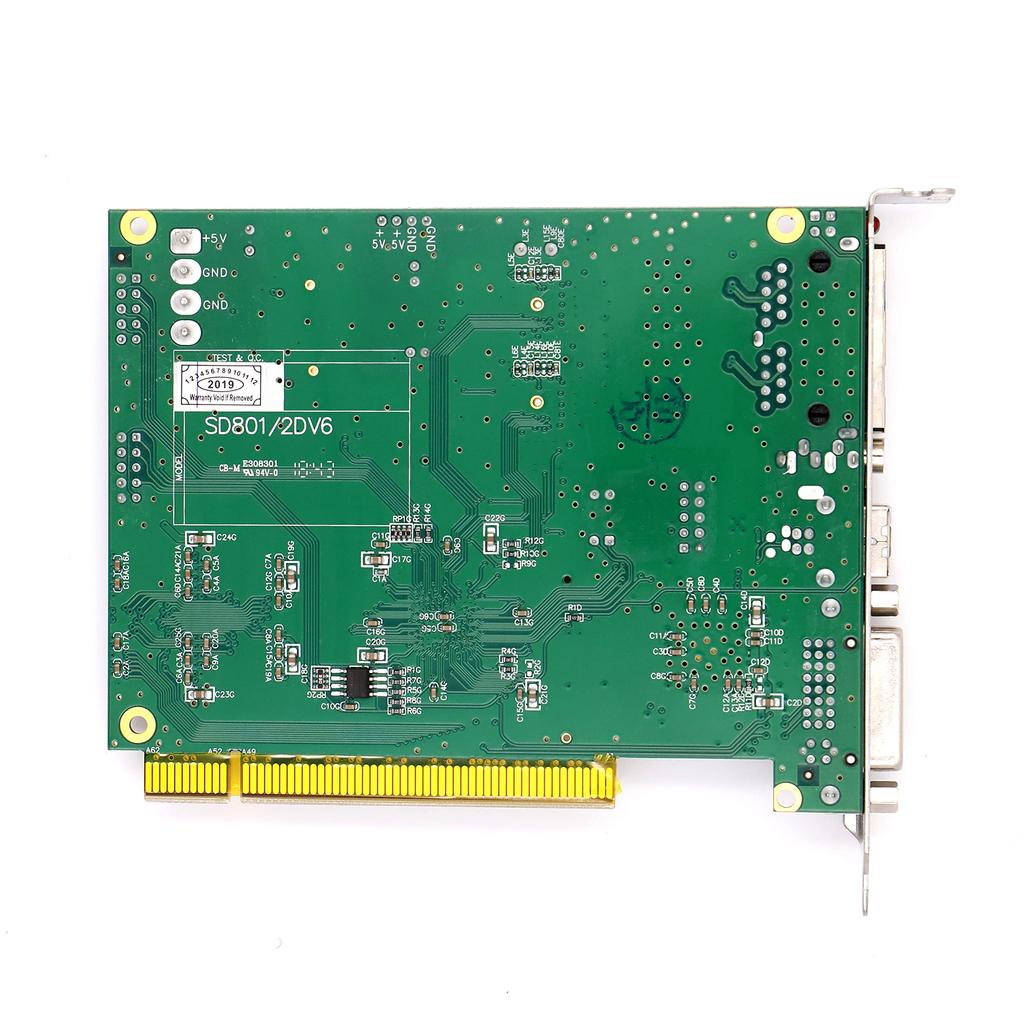

Linsn TS802D Transmission Card LED Display Synchronization Control Card with Software Configuration Instructions (Updated Version)

We offer a wide variety of products, and the following precautions apply to some of them. Please note that they are listed for all products. 【Voltage Compatibility】Designed for Japanese voltage (90-110V). Using with a different voltage may cause malfunction. 【Plug Type】Japanese plugs (A or B type). Use a conversion adapter if needed. 【Transformers & Adapters】Transformers adjust voltage; adapters only change plug shape. Using an adapter without a transformer may damage the product. 【Liability】We are not responsible for damages caused by improper use, such as using the product without a transformer. Upgrade version - Linsn ts802D synchronous sending card can replace the old version TS801 and is compatible with use. Easy software setup - TS802D sending card supports up to 1.3 million pixels. Versatile - Compatible with all types of video processors and graphics cards. Real Color Output - Make your LED display more vivid display effect. Combination function - Support one sending card control with multiple LED screens. Multi-screen working status can be any combination, synchronized display and independent play. 1. Supports 802 sending card maximum 2048 x 640. 2. Compatible display modes: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*10555 0 172. 8×1296 1920×1080 1920×1200 2048×1152 2048×1280. 3. Audio transmission function The 802 transmission card uses the network cable to transmit audio data, and the function board outputs the audio signal to the display. Double 24bit 64KHZ HiFi digital signal to analog signal or analog signal to digital signal. Perfect video effect. 4. Cascading Function The drilling switch of 802 sending cards allows you to easily cascade 802 sending cards, supporting super large LED display. 5. The sending card U/D port is flexible and can be carried half-width or half-height. For example, TS801 can support up to 1280*1024 with two ports. Single network output port supports 1280*512 or 640*1024. 6. Sending card rotation function, sending card has 0, 90, 180, 270 degree rotation function. 7. Sending card zoom in/out function. In the sender settings, you can set the width and height ratio to zoom in or out. 8. Supports 10-bit color 7th supports 8-bit color: 256*256*256=16777216 kinds of colors. The 8th corresponds to 10-bit color: 1024*1024*1024=1073741824 different colors. Must work with a video processor using 30-bit TTL. 9. Multi-display synchronization and combination function. Control multiple displays with one sending card, allowing display combinations, synchronized displays, and independent play. Package contents: 1 x ts802 sending card 1 x DVI cable 1 x USB cable 1 x carton box
