Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
🚕 [Convenient wired CarPlay/Android Auto function] KAR7 is compatible with CarPlay, which allows you to play music, make calls, display navigation information, etc. by connecting it to your iPhone or Android smartphone. In addition to the screen display, you can also use the voice control functions "Siri" and "Google Assistant" to make calls, manage schedules, check nearby spots, etc. hands-free. Note: Wireless connection is not supported.
🚕 [Smartphone USB mirroring is possible] KAR7 can be connected to a smartphone and enjoyed in the car while playing video content such as video distribution services on the monitor. ●Wired mirroring of Android smartphones allows you to control your smartphone via the KAR7 touch screen. Note: Wireless connection is not supported.
🚕 [Adopts 7-inch IPS high-definition LCD touch panel] KAR7 is equipped with a 7-inch IPS full-touch capacitive screen with an ultra-high resolution of 1024 x 600 pixels. This allows you to display a more detailed screen. Also, the special touch button design allows you to operate the panel easily and precisely with your fingertips.
🚕[Equipped with reverse linkage/back mute function]★When you switch to reverse gear, it automatically switches to the image from the rear camera. Supports CVBS and AHD cameras up to 720P. You can also choose to display or hide the guidelines. (*Please prepare a backup camera separately.) ★Reverse mute function is a function that sets the media volume of the car audio to 0 when the car is put in the reverse. This allows the driver to more clearly hear the surrounding sounds of the car and the warning sound of the reversing sensor when backing up. Note: Even if you turn off the back mute function, the media volume will decrease to some extent when in reverse. If the volume itself is [0 to 10], the media volume will not be heard after reversing.
🚕 [Equipped with various useful functions] ① Equipped with video and audio input terminals: Equipped with one RCA video and audio input terminal on the back, allowing you to connect audio devices, etc. ②Built-in FM/AM radio tuner: Built-in FM/AM radio tuner that meets domestic specifications. ③ Compatible with Bluetooth connection: Bluetooth compatible devices such as smartphones and tablets can be connected to this unit. You can listen to music from your smartphone and make calls. ④You can enjoy various videos, still images, and music stored on USB/SD memory. ⑤ Connect to car speakers: Audio from car speakers is also perfect! You can enjoy both music and movies with great power.

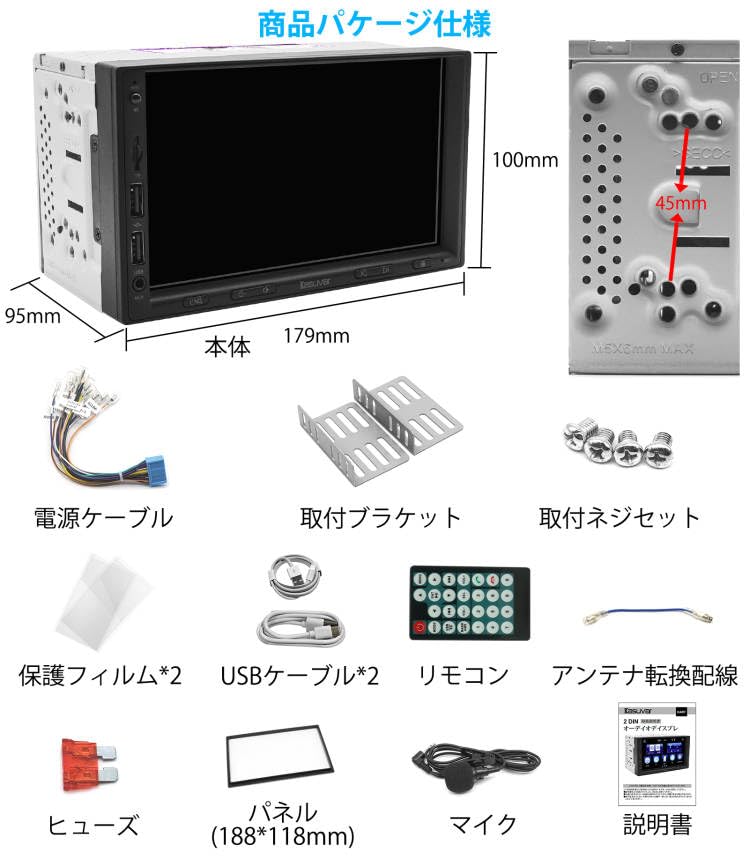

●[Currently, we have completed the development of a new model (179*100mm) with reduced dimensions to match the 2DIN size. ]●[ The included power cable has a bullet terminal. ● The back camera signal input port of this product is an RCA connection port. If you are using a genuine camera, a conversion cable is required. In addition, genuine cameras may not be compatible. ● Please prepare a separate radio antenna conversion cable for each car model. ]●[This product has already obtained the technical compliance certification mentioned above, technical compliance certification number: 210-204434. ]
Product specifications:
LCD monitor: 7 inch high brightness IPS LCD panel
Number of pixels: 1024×600pixel
CarPlay/AndroidAuto: Wired compatible
Mirror Link: Wired compatible
Bluetooth: Support
Car speaker output: FL, FR, RR, RL/RCA (FL, FR, RR, RL, subwoofer)
Video/audio input: 2 RCA video/1 audio, 1 for rear camera
Music playback format: MP3, WMA, AAC, RM, etc.
Video playback format: MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, etc.
Size: (approx.) 179 (W) x 100 (H) x 95 (D) mm
Power supply: DC12V
Warranty period: 12 months warranty
