Features:
Sound and light alarm, emergency alarm function.
LED flashing automatically after the state of acoustooptic alarming.
With the function of secret lock, the engine will be automatically locked after stopping and shutting down for 15 seconds.
With a key to start and a key flameout function, convenient use.
Prompt function of starting indicator light at night: when it is inconvenient to find the starting button position at night, the indicator light on the starting button will be on for 2 seconds after you step on the brake to facilitate the owner to find the starting button position, which is very practical.
Specification:
Condition: 100percent Brand New
Working voltage: DC voltage DC=12V, 24V power supply is not supported temporarily.
Standby current: 8mA (note: standby for up to 2 months continuously)
Package Size: 23 * 15.5 * 9.5cm 9.1 * 6.1 * 3.7in
Product Function:
1. Soundlight alarm: Press the set button and lock the door. After the LED flashes, it will automatically enter the soundlight antitheft alert state. If someone forcibly opens the door, breaks the glass or suffers external impact and towing, the antitheft system will be triggered immediately. When the antitheft system is triggered, the horn will blare loudly, the direction light will flash, and the engine will turn off. After the antitheft system is triggered, the alarm horn will stop automatically after 30 seconds and the alarm state will be restored.
2. Mute antitheft: press the mute button, the direction light flashes once, and the LED will automatically enter the mute antitheft alert state after flashing.
3. Warning release: press the "release" button to release the guard and unlock the door.
4. Emergency alarm: if ACC is triggered by the side door, the horn will alarm for 30 seconds, and the direction light will flash synchronously, the car cannot start.
5. Remote control rear door (the car must have a rear door motor): press the release button for 2 seconds to automatically open the rear door.
6. Central door lock automation:
A. The foot brake will automatically lock the door after driving for 15 seconds.
B. When the car stops and turns off, the door will unlock automatically.
After C,ACC and ON, press the setting key to lock the central control lock, and press the release key to unlock the central control lock.
7. Car search:
A, press the mute button, the horn does not sound, and the direction light flashes for 15 seconds, which is convenient for car search;
B, press the setting button for 2 seconds, the horn blares for 15 seconds, and the direction light flashes synchronously, which is convenient for car search.
8. Maydayovertaking: press the "find car" button in any state, the horn will sound for 15 times and the lights will flash synchronously for 15 seconds.
9. Trigger memory: in burglar alarm, the system is triggered too. When the alarm is lifted, open the door horn B1 twice, indicating that the vehicle has been triggered.
10. Automatic reply: if the door is not opened within 25 seconds after lifting the antitheft warning, the antitheft system will automatically revert to the original antitheft warning state and lock the door to prevent lifting by mistake.
11. Emergency call (antirobbery): ACC,ON, press the mute button, and the direction light will flash immediately; press the setting button again within 30 seconds, and then enter the antirobbery state.
12. Prompt setting antitheft: stop the car, the owner closes the door 10 seconds later, the direction light flashes three times, reminding the owner to open the antitheft system.
13. Power off memory: after the burglar alarm system is damaged by power off, regardless of the length of time, after 3 seconds of power on, the burglar alarm system will reply to the warning state before power off.
14. Warning light: in the warning,LED flash. Triggered by vibration,LED long light.
15. Emergency relief: in the state of antitheft, open the door,ACC, onoff 10, the horn will give a sound and the direction light will flash twice, remove the warning.

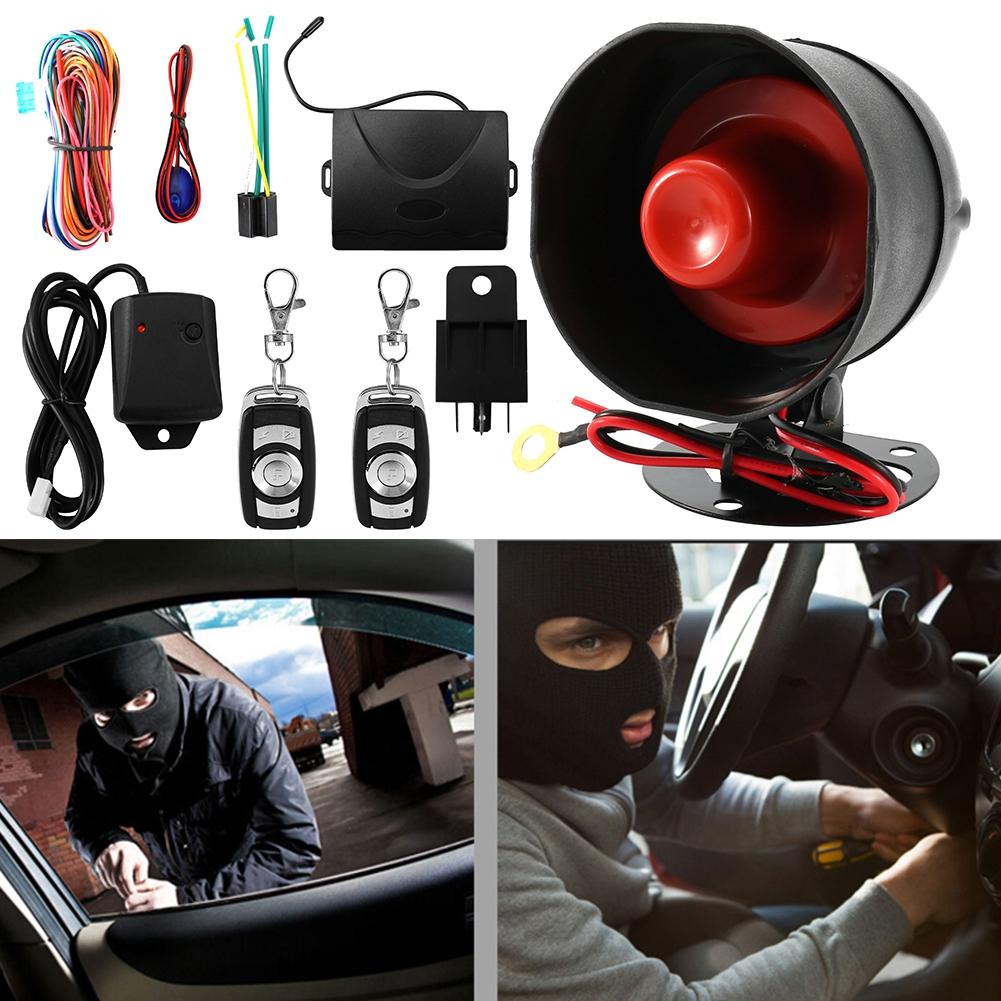

Package List:
1 * Main Unit
1 * Horn
1 * Vibration Sensor
1 * Detection Line
1 * Disconnect Relay
1 * LED Indicator Light
2 * Intelligent remote control
1 * Glue Slice
Installation Note:
1. When the vehicle has a steering wheel lock, the key is inserted into the keyhole and punched in the ACC gear to unlock the steering wheel, and the ignition plug of the original car is removed to prevent the original car"s audio power consumption.
2. When the original vehicle has an antitheft chip, take out the antitheft chip of the original vehicle and stick it to the area where the original vehicle can be scanned, otherwise it may to the startup failure.
3, Because the base of the start button is metal material, when pasting and putting, if interference with the original car"s antitheft chip, then choose other areas to put or pad high processing.
4. The output of this product is made of 5 lines, i. e., 12V red wire connection original fire line, ACC line of orange wire connection original car (usually in 1 gear), ON1 power line of white wire connection original car (usually in 2 gear), starting point fire line of yellow wire connection original car (this line is powered at the start moment, no power after startup), brown wire connection of the original car ON2 power supply line (this line when the key hit ON gear when there is electricity, and in the start of the moment no electricity, when startup, there is electricity, installation should be careful to judge).
5. When there are only 4 output wiring for some models, only orange (ACC), white (ON), yellow (ignition starting line, red line (fire line at the key head of the original car), brown line is not used or used with white ON1 line.
6. When you meet a number of vehicles with 6 output wiring, in addition to following the way of the fourth item above, but also find out the function of the sixth line, the way is to play the key in ACC file, ON file, start file, In these three different states to detect the power supply of the sixth line, so that the sixth line in the startup need power supply, and yellow startup line phase connected or used relay isolation, in the case of power supply at ON, and connect the white line or use relay isolation power supply, keep in mind, otherwise it will be difficult to start the situation.
7. In contrast to the starting part of the whole machine (with a key start and no key access function), it is important to remember that the ground wire must be connected firmly and the ground wire cannot be connected long, otherwise it will be difficult to start or the starting indicator light will be extinguished with one foot brake. All because the ground line is loose or the connection iron bad result.
