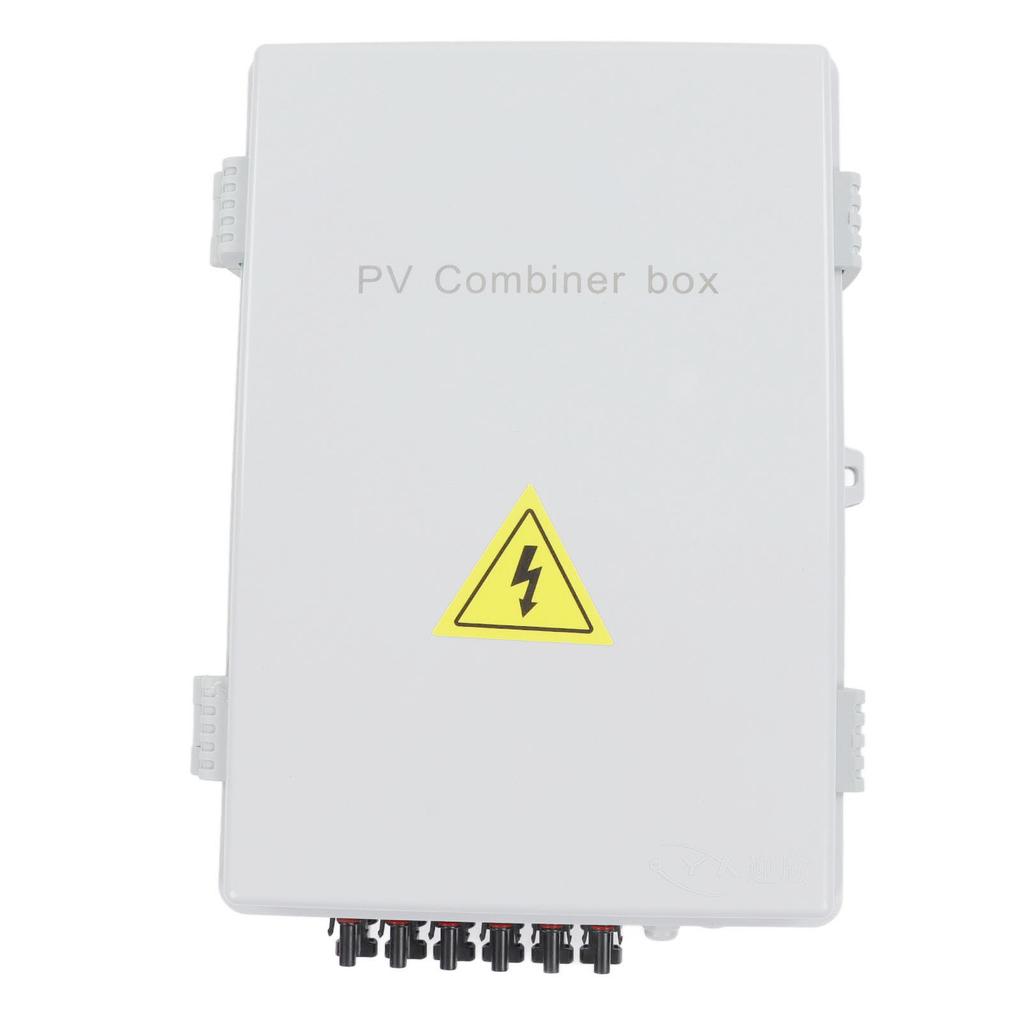

Tongou 6 String PV Combiner Box with Arrester 10A Fuse 63A Circuit Breaker Off Grid System

Feature: 1. Combiner Box Contents: This PV array combiner includes output cable glands, safety labels, and surge protection modules. 2. Maximum Current: This PV combiner is a 6 string configuration with a maximum current of 10A for a single PV input array and a rated continuous load of 250VDC per string. 3. Overcharge Protection: Single PV input array is installed with high voltage fuse with overload and overcharge protection. 4. Anti Reflux: PV sink box with anti reflux diode, anti reflux and anti reverse protection, touchable safe circuit breaker and non conductive box. 5. Reliable and Safe: Professional high voltage circuit breaker control output with short circuit protection to make the system more reliable and safe. Specification: Item Type: 6 String PV Combiner Box Material: PC Maximum Number of Connected PV Arrays: 6 Maximum Individual PV Array Input Current: 10A Total PV Array Input Current: 60A Total Maximum Input Voltage of PV Array: 1000V Protection Grade: IP65 Operating Ambient Temperature: 30 celsius to +70 celsius Relative Humidity: 0 to 95percent Cooling Mode: Natural cooling Surge Thunder Protection: Yes. Package List: 1 x Solar Combiner Box1 x Password Lock4 x Fixing Sheet14 x Screw4 x Washer4 x Expansion Screw1 x Wrench1 x Instruction Manual Note: Regardless of the solar panel specifications and whether the connection is in series or parallel, as long as the current and voltage of a single PV does not exceed 10A 250VDC, a combiner box can be connectedCombiner Box Contents: This PV array combiner includes output cable glands, safety labels, and surge protection modules. Maximum Current: This PV combiner is a 6 string configuration with a maximum current of 10A for a single PV input array and a rated continuous load of 250VDC per string. Overcharge Protection: Single PV input array is installed with high voltage fuse with overload and overcharge protection. Anti Reflux: PV sink box with anti reflux diode, anti reflux and anti reverse protection, touchable safe circuit breaker and non conductive box. Reliable and Safe: Professional high voltage circuit breaker control output with short circuit protection to make the system more reliable and safe.
