Feature:

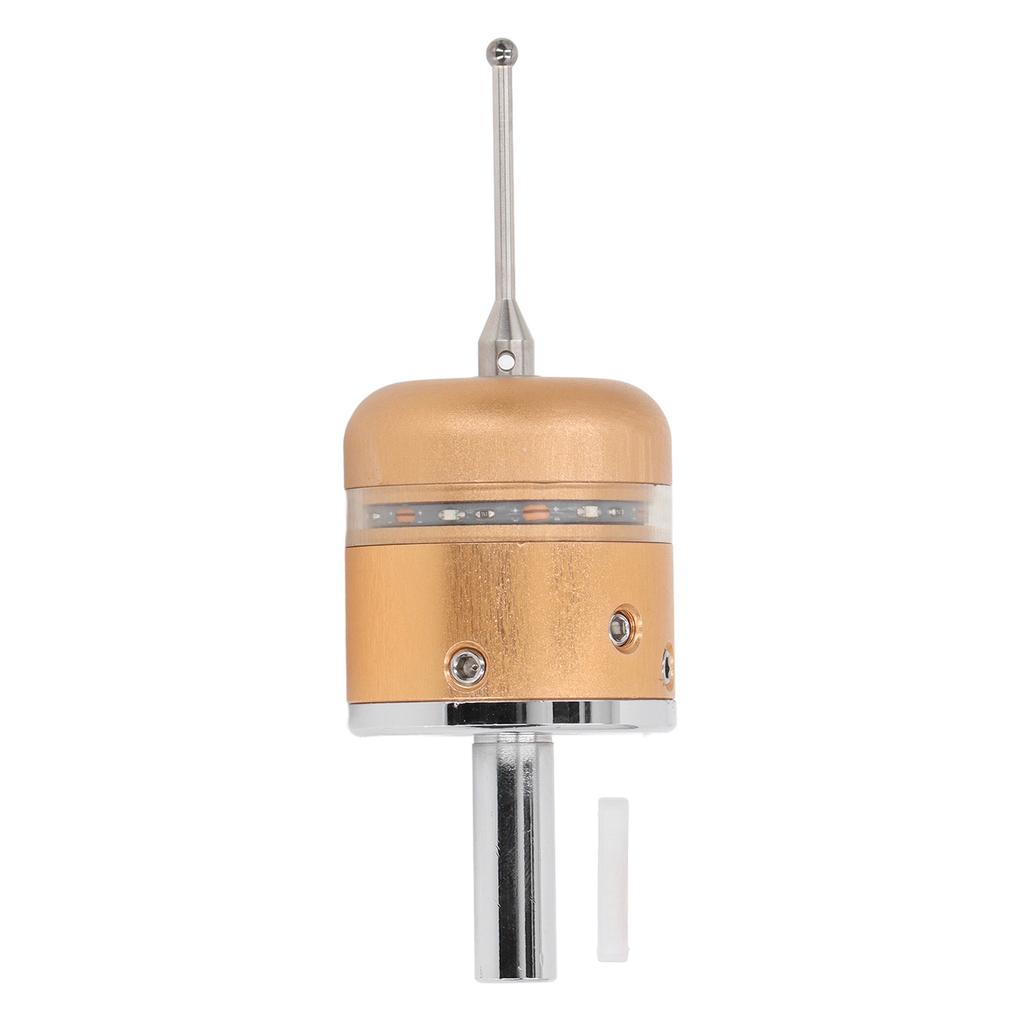

1. 3 AXES DIRECTION: The 3D edge finder supports 3 coordinate measurement, that is, the X, Y, Z axes measurement directions, with wide measurement range.
2. GOOD PERFORMANCE: The edge finder adopts a sturdy sealing shell, with good structural stability, excellent performance and high measurement accuracy.
3. 180 degrees ROTATION: No need to rotate the spindle during measurement and centering, the probe can be rotated 180 degrees, more flexible and convenient.
4. GOOD PROTECTION: Support dustproof and a small amount of dripping and waterproofing (not support long term dripping and washing), has long service life.
5. FOR CNC LATHE: Equipped with 2pcs 3V CR1616 button batteries, easy to use at any time, widely used in CNC lathe positioning and measurement, etc.
Specification:
Item Type: 3D Edge Finder
Material: Aluminum alloy, tungsten steel
Probe Ball Diameter: Approx. 4mm 0.16in
Measurement Direction: X, Y, Z axes
Reciprocating Accuracy: less than 0.01
XY Deflection Range: 06 degrees
Z Direction Telescopic Range: 1mm
Battery Type: 2 x 3V CR1616 button battery (including battery)
.
Package List:
1 x Probe1 x Probe Needle1 x Storage Box
Note:
Exceeding the safe range may damage the probe and probe needle, and does not support the detection of insulating materials and insulating machine tools.3 AXES DIRECTION: The 3D edge finder supports 3 coordinate measurement, that is, the X, Y, Z axes measurement directions, with wide measurement range.
GOOD PERFORMANCE: The edge finder adopts a sturdy sealing shell, with good structural stability, excellent performance and high measurement accuracy.
180 degrees ROTATION: No need to rotate the spindle during measurement and centering, the probe can be rotated 180 degrees, more flexible and convenient.
GOOD PROTECTION: Support dustproof and a small amount of dripping and waterproofing (not support long term dripping and washing), has long service life.
FOR CNC LATHE: Equipped with 2pcs 3V CR1616 button batteries, easy to use at any time, widely used in CNC lathe positioning and measurement, etc.
