Feature:
1. HIGH SPEED AND ACCURATE SCANNING: Scanning rate of 120 frames per second while featuring a resolution of 640 x 480, meticulously capturing the details of barcodes and 2D codes for fast and accurate reading.
2. GLOBAL EXPOSURE SCANNING: Adopting CMOS global exposure scanning technology, it is able to fully scan the target at different angles, including left and right, front and back, and rotation.
3. WIDE COMPATIBILITY: Supports a wide range of 1D and 2D code decoding, including EAN13, EAN 8, UPC A, UPC E0, UPC E1, Code128, Code39, Code93, etc., and also supports cell phone screen reading.
4. WIDE RANGE OF APPLICATIONS: Suitable for supermarkets, retail stores, banks, libraries and many other scenarios, providing fast and accurate scanning and identification services for merchants.
5. VARIOUS PROMPTING METHODS: Built in buzzer and LED light can prompt the user the scanning result by sound and light.
Specification:

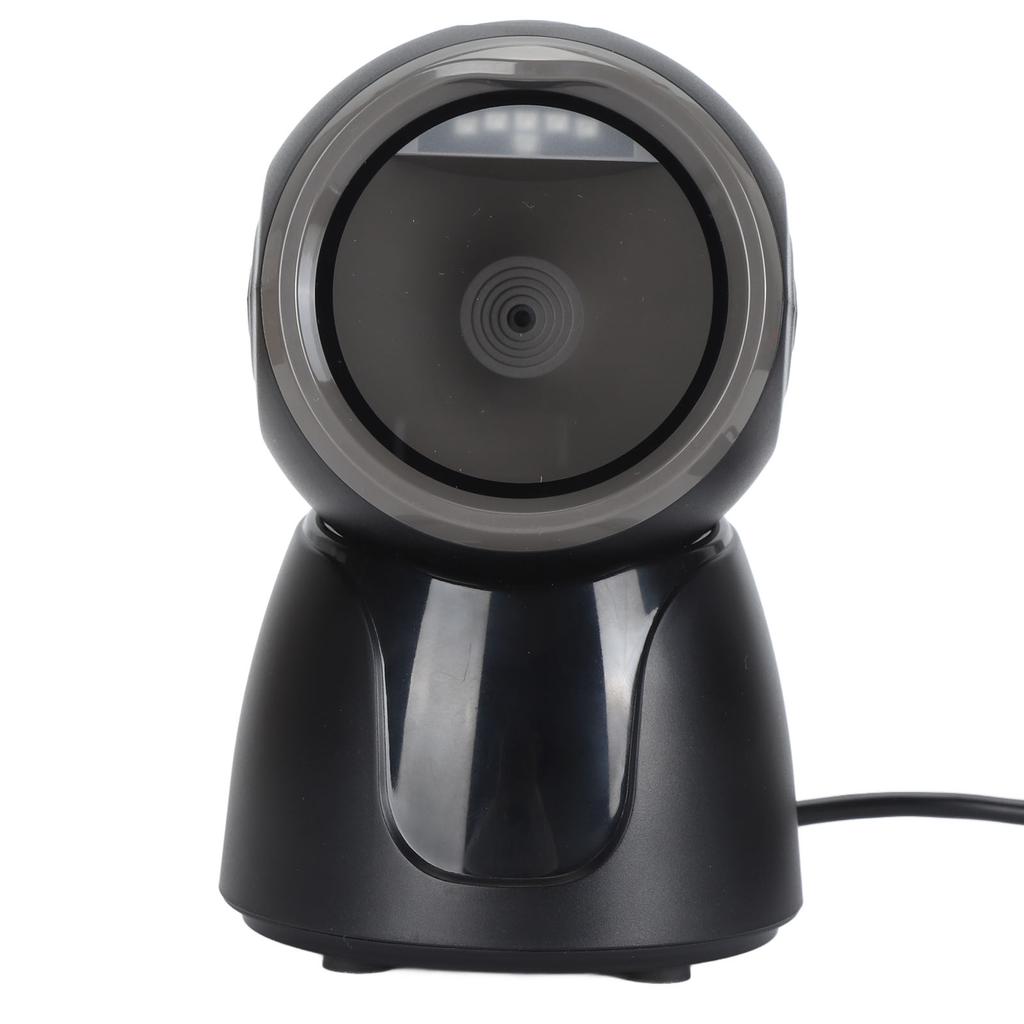

Item Type: QR Code Scanner
Material: ABS
Connection: Wired USB
Cable Length: Approx. 1.35m4.4ft
Resolution: 640*480
Light Source: 617nm Red LEDs
Scanning Mode: Auto Sensing, Continuous Scanning
Scanning Type: CMOS Global Exposure
Scanning Angle: +-60 degrees , +-54 degrees , 360 degrees (Left Right, Front Back, Rotation)
Scanning Rate: 120 FramesSec
Field of View: 48 degrees (Horizontal) X 30 degrees (Vertical)
Print Contrast: 20percent Minimum
Prompt Mode: Buzzer, LED Light
Setting Mode: Press Button to Set, Manually Scan the Setting Code Sequentially
Decoding Types:
1D: EAN13, EAN 8, UPC A, UPC E0, UPC E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Code11, CodeBar, MSI, for RSS 14, for RSS Ltd, for RSS Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite
2D: QR Code, DF417, Micro QRCode, MaxiCode, Aztec Code, Supports Cell Phone Screen Reading.
Minimum Resolution: 1D 3mil, 2D 5mil
Application Scenario: For Supermarkets, Retail Stores, Banks, Libraries, Etc..
Package List:
1 x Scanner1 x Instruction Manual
Note:
Manual measurement please allow some error.
