Feature:
1. Record o and video from external devices through the HD multimediainterface, you can easily save and share files through the computer, and support real‑time RTMP video streaming. And compatible with popular streaming software and services, such as for OBS StudioVLCPotPlayerVmix, etc.
2. High‑definition acquisition, strong compatibility, smooth pictures without delay, no delay, no external power supply, small size, ultra‑thin and easy to carry.
3. There is no driver, just plug it in and use it. It is a real‑time stream with low latency and can be used for game recording and conference recording. You can share for YouTubeFacebook Twitter to let more gamers know you. It is compatible for WindowsLinux OS X.
4. The capture card supports 4K 30P HD inputoutput. A fast, familiar and economical way to share content in conference rooms and online meetings. To connect to a presentation, you don"t need any software, just connect your laptop or tablet to start sharing via HD multimedia interface.
5. Connect the HD input end of the capture card to the signal source, and the HD output end to the display port, high‑definition capture, video recording, video live broadcast, teaching recording, game live broadcast, video live broadcast, high‑definition video recording camera, etc.
Specification:

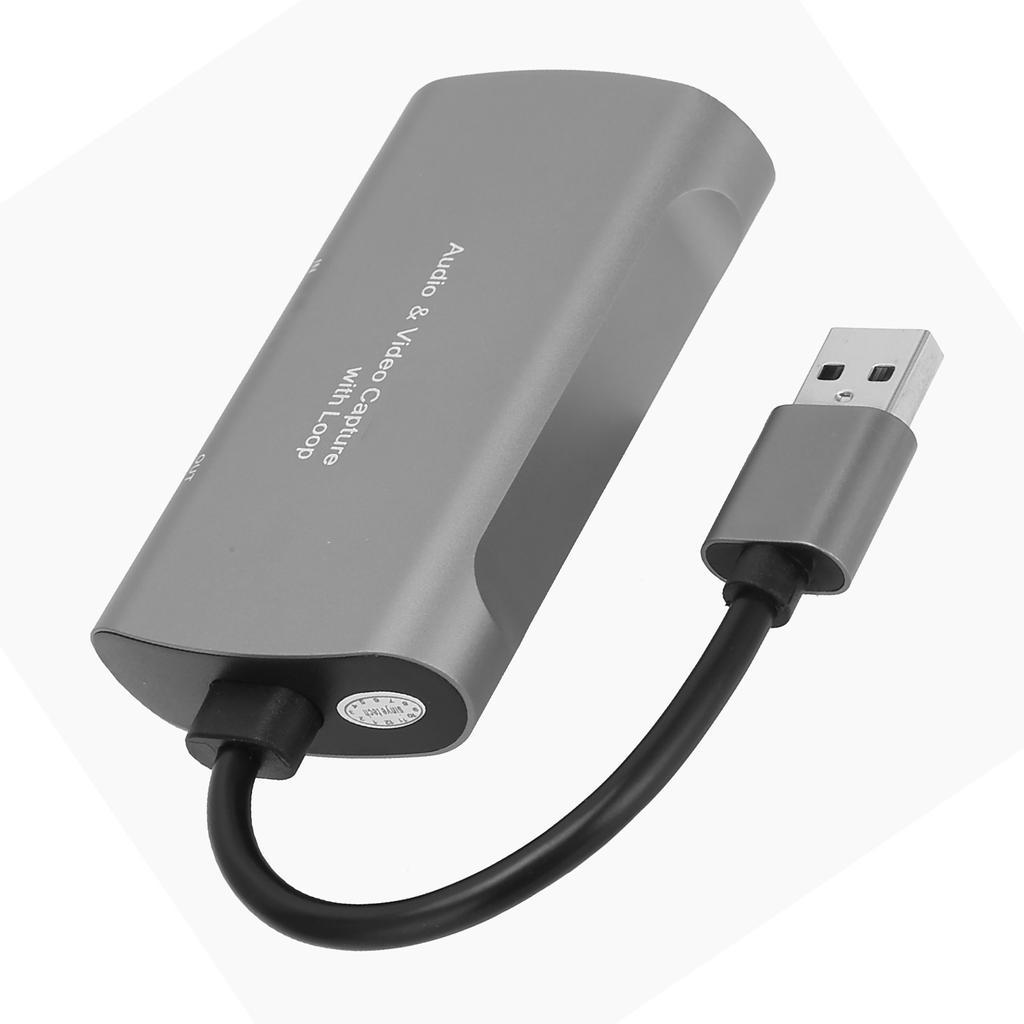

Item Type: Video Capture Card(Support loop outputo)
Material: aluminum alloy+ABS
Color: As Pictures Shown
Weight: Approx. 90g3.2oz.Model: Z31
Interface: 2 x HD Multimedia Interface, 1 x USB
Input resolution: up to 4K 30Hz
Output resolution: 1080P Maximum
The product conforms to USB video UVC specification
Support for WindowsAndroidLinuxOS X and other operating systems
Support most acquisition software, such as for VLCOBSAMCAP, etc
Support HD local loop out;
Input terminal: HD input can support 4K 30Hz, 81012 bit color deep input format
Output terminal: USB2.0M support 1080P 60Hz, YUV, JPEG output mode
Support the use of AWG26 cable, input transmission distance up to 15 meters,(1080P and below resolution)
High-definition collection, smooth picture without jam, no delay;
No need for external power supply, small size, ultra-thin portable
How to use:Connect the signal source with the HD input interface of the acquisition card through the HD multimedia interface cable
Connect the display port with the HD OUT output terminal of the acquisition card through the HD multimedia interface cable
Connect the USB terminal of the computer with the USB terminal of the acquisition card
Operation steps of the acquisition card: open the software add a new source select the video capture deviceo input capture set the screen size select the studio mode (double window) and click to start recording
Package List:
1 x
Video Capture Card 1 x Manual
