【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

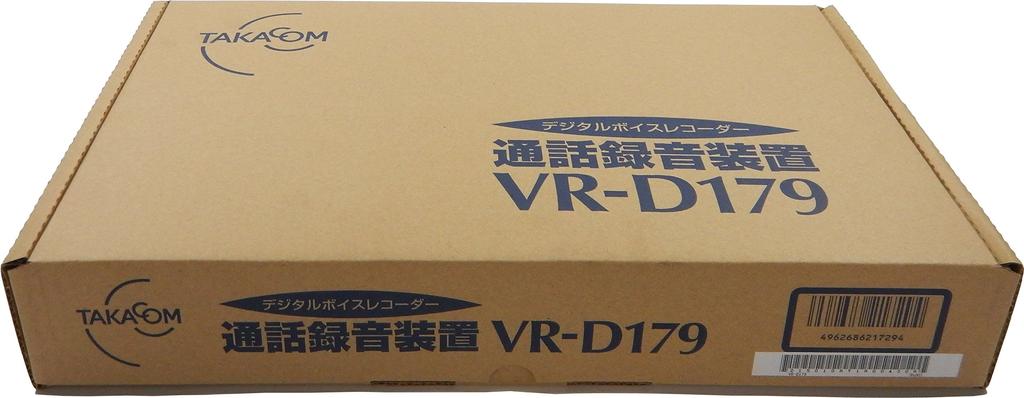

Call recording device equipped with "recording notification function"
You can also create your own recorded announcements.
Connection method: Handset connection (*not compatible with cordless handsets), compatible with external input connection
If you install the playback software "Voice Player VPS179" (*downloadable from the manufacturer's website) on your PC, you can search and play the recorded content.
D179 cannot be connected directly to a telephone line. The model that connects to the line is D179A, so please select this.
The modular arrangement (pin assignment) of the handset, which differs depending on the phone, can be easily set by changing the switch.
There are two connection methods: ``Handset connection'' and ``External input connection.''
You can send your own fixed announcements, such as "This call will be recorded to improve our service."
The start and end of recording can be selected from "Automatic recording (voice activation)" and "Manual recording", and can be set by switching the switch.
【specification】
Connection method (voice input method)
Handset connection: Handset modular terminal ＜modular arrangement (pin assignment) switchable＞ External input connection: 3.5Φ monaural mini jack impedance 15kΩ or 6kΩ
Storage medium: SD card (512MB ~ 2GB), SDHC card (4GB ~ 32GB)
Recording method: automatic recording/manual recording
Activation method: voice activation
Recorded announcement: Manual transmission
Power supply: AC100V±10V
Power consumption: max. 4.5W
Dimensions (width x depth x height): 180 x 260 x 15 mm (excluding rubber feet)
Mass: Approx. 440g
Accessories: Power adapter, SD card (4GB), security cover, modular cord 20cm,
Instruction manual (warranty) 1 each
