【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

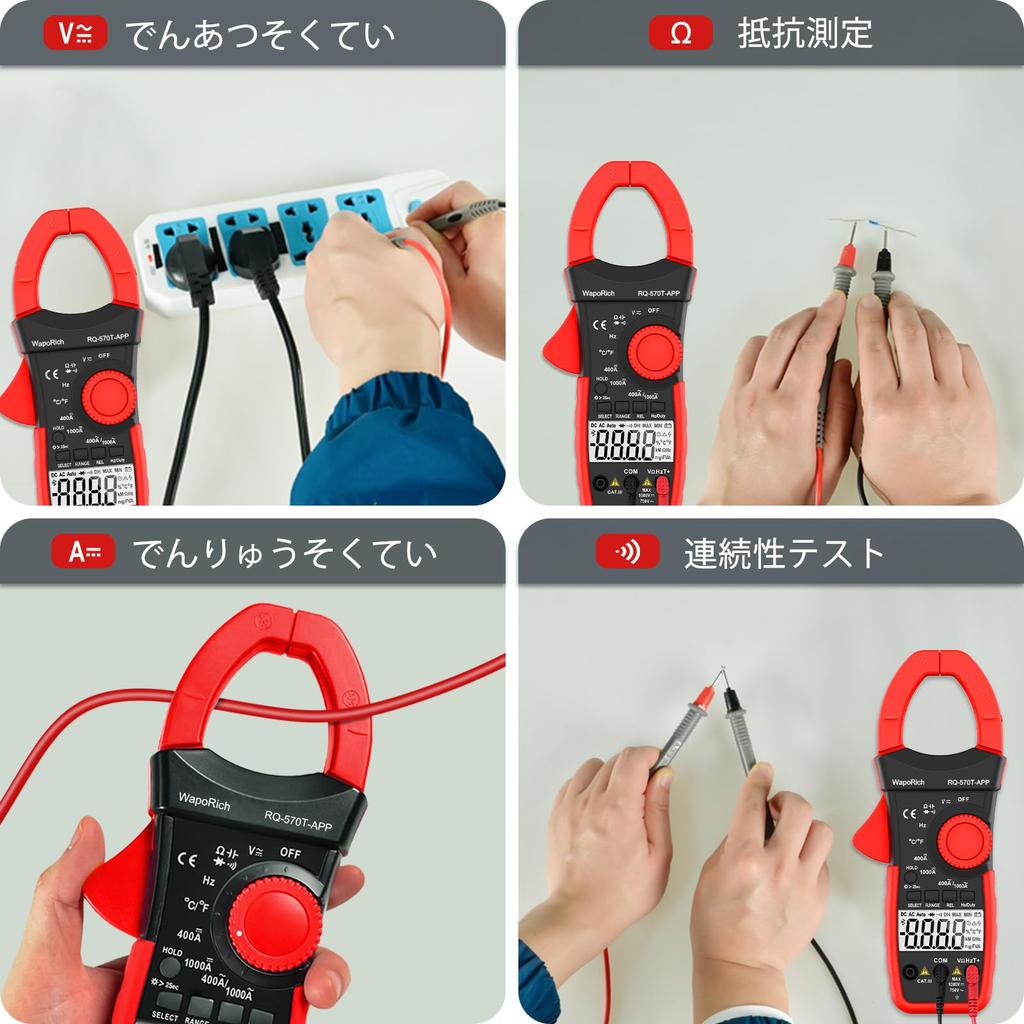

Multiple measurement functions: Accurate AC voltage (4V~750V)/DC voltage (400mV~1000V) and current (600A~1000A), resistance (400Ω~40MΩ), capacitance (4nF~20mF), frequency (9.999Hz~9.999MHz) , temperature (-4~1832℉/-20~1000℃), ℃/℉, diode, continuity test, complete clamp meter functions can be selected, easy for laboratory, factory, wireless technology and family use.

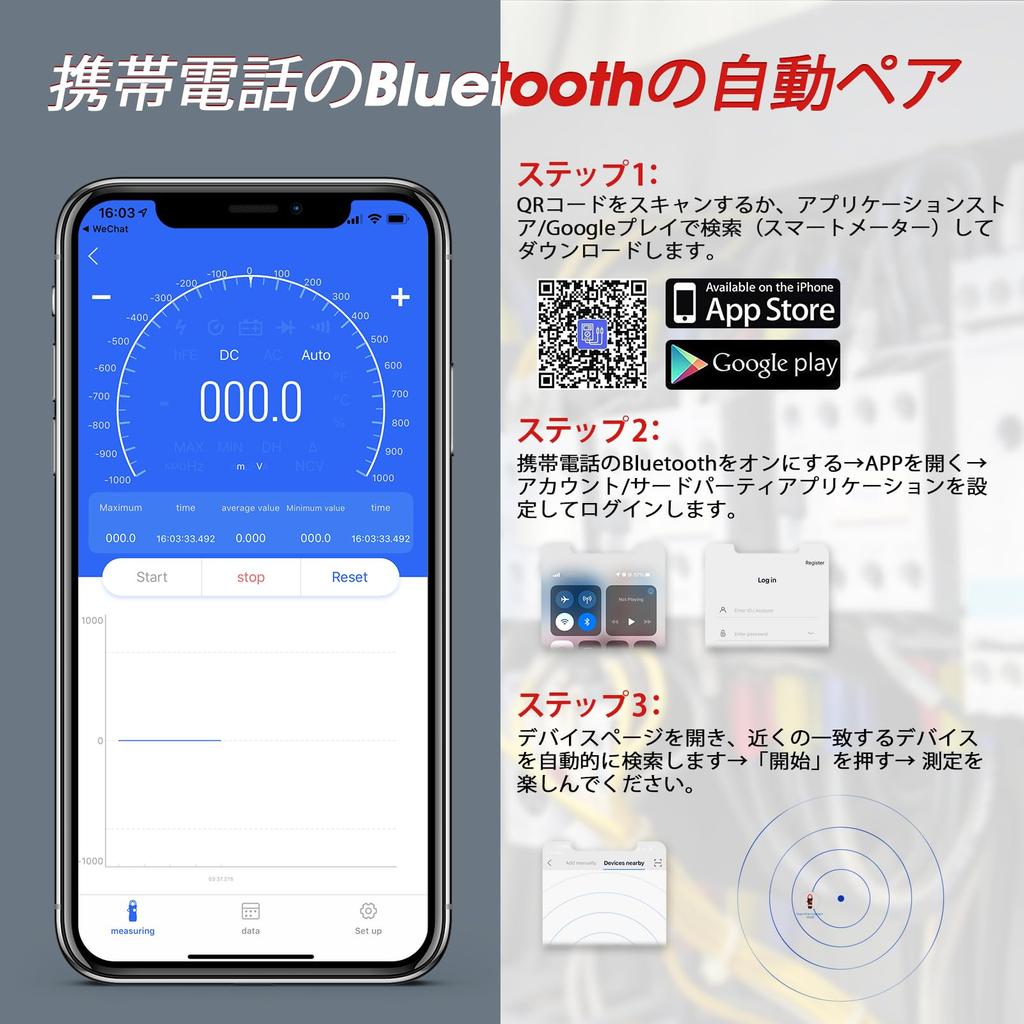

Wireless Connection: The device has serial data output capability. You can scan the QR code in the manual. Or search in APP Store, download and install "AILink" app. Through Bluetooth connection with mobile phone, real-time data can be recorded, analyzed and processed through mobile phone APP. There are two formats to choose from for data storage. Remote monitoring and measurement distance is 10-15m.
Large jaw opening: can clamp wires up to 45mm. The jaw opening measures AC current in a conductor without touching or breaking the circuit. To measure current, you must clamp the device to one of the wires, not the entire power cord. Its thin and compact size makes it easy to use even in tight spaces.
Easy to operate: The auto-ranging digital clamp-on multimeter features relative value measurement, data retention, and manual range selection, making it easy to operate. Helps you solve electrical problems in your car or home quickly and safely. Backlight and LCD display screen ensure clear reading even at night. The power consumption of the entire machine is low, making it an ideal tool for electrical measurements.
Safety and Service: This equipment has passed the IEC-1010 double insulation, environmental pollution degree 2, overvoltage category CAT II 1000V or CAT III 600V safety standard issued by the International Electrotechnical Commission. 1 year warranty and lifetime technical support. If you have any problems with the product, please contact us.
Other useful features Ergonomic design fits comfortably in your hand and can be used even while wearing PPE. Large, easy-to-read backlit display improves readings in low-light conditions Connectivity to your smartphone or tablet allows you to read readings from a safer distance during high-voltage tests. Record minimum/maximum/average values and automatically capture fluctuations Specifications DC & AC current: 400A/1000A ± (2.5%/ 3.0% +10 digits) AC voltage: 4V/40V/400V/750V ± (1%~1.5% +3 Digit) DC voltage: 400mV/4V/40V/400V/1000V±(0.5%~0.8% +2 digits) Resistance 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ Capacitance 4nF/40nF/400nF/4uF/40uF/200uF Frequency: 9.999Hz~9.999mHz Liquid temperature test: -20 °C to 1000 °C (-4 °F to 1832 °F), thermocouple included. Box Contents RQ-570T-APP AC DC Clamp-on Meter (1 pair of test leads 1 temperature thermocouple 1pcs multimeter carrying case
