Model Number : BT-168 BT-168D
Type : Household Battery Tester
DIY Supplies : ELECTRICAL
Origin : China
Certification : CE
Product Description
Attention:Only the pressure measurement function (i.e. the remaining battery capacity) is available, rather than directly detecting the battery capacity. Please do not misunderstand buyers.
The listed price is the unit price of the machine, excluding the batteries shown in the picture.
This product can only measure 1.5V and 9V batteries. If measuring other voltage batteries, it may burn out the instrument
Super Nanfu battery cannot be measured
This product does not require a built-in battery for measurement, and displays the power level of the tested battery
The voltage of the battery measured by this product shows what V it is. The voltage of the battery is proportional to its charge, and the higher the voltage, the more fully charged the battery is
This product mainly measures whether the battery is charged or not. It is not a professional voltage measuring instrument, please do not purchase it if needed!
Digital version:
9V battery:
The full charge voltage of nickel hydrogen, lithium, and alkaline batteries varies, but it is definitely above 8V, and generally below 7V when there is no power;
1.5V disposable battery (including 1.5V alkaline button cell):
Full charge is around 1.6V, and no charge is around 1.0V;
1.2V nickel hydrogen and nickel cadmium rechargeable batteries:
Full charge is around 1.3V, and no charge is around 1.0V
Pointer style:
Red (RE-PLACE replacement or RE-CHARGE charging): If the indicator needle points to this block, the battery under test needs to be replaced or recharged, which means the battery is basically unusable;
Yellow (LOW): The battery level is low, but some appliances can still be used
Green (GOOD): The battery is fully charged
Product model: BT168D export neutral

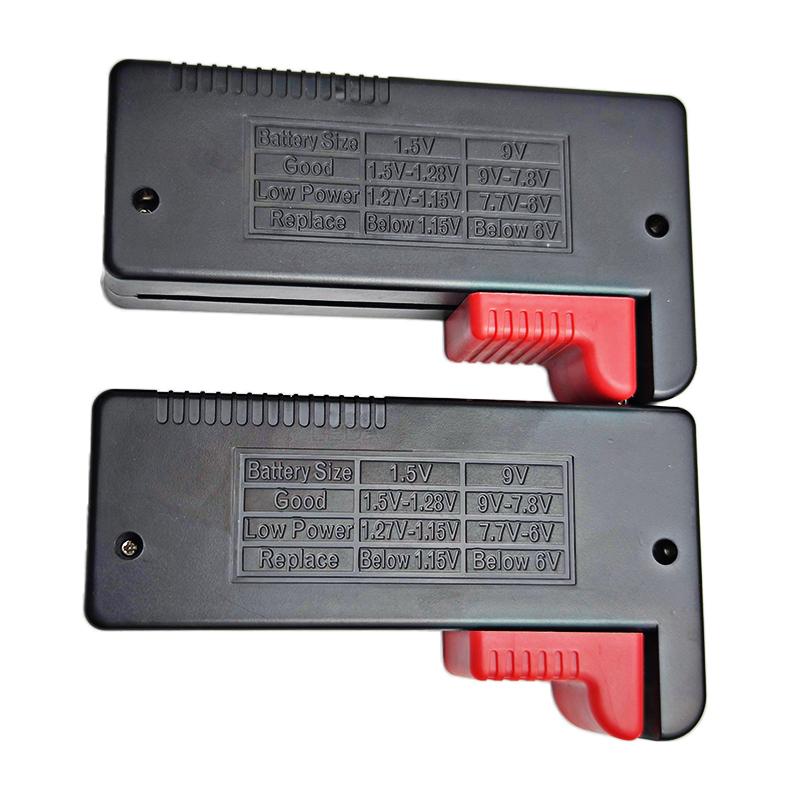

BT-168D Main technical parameters of battery tester
Battery nominal voltage
Model No
1.5V
AAA,HP6,MN2400,RO3,AA,HP7,MN1500,UM3
C,HP11,MN1400,UM2,D,HP2,MN1300,UM1
Button, small battery
Discriminate
1.28~1.5V Good
1.15~1.27V
Low Powe
Charging is required
below 1.14V
9V
6F22 ,PP3 ,MN1604
Discriminate
7.8~9V Good
6~7.7V Low Powe
Charging is required
below 5.9V
Overall Dimensions
109.6×60.3×25.3mm
Weight
48g
Measurement
environment
0-40 ℃ , 25%-80%RH
