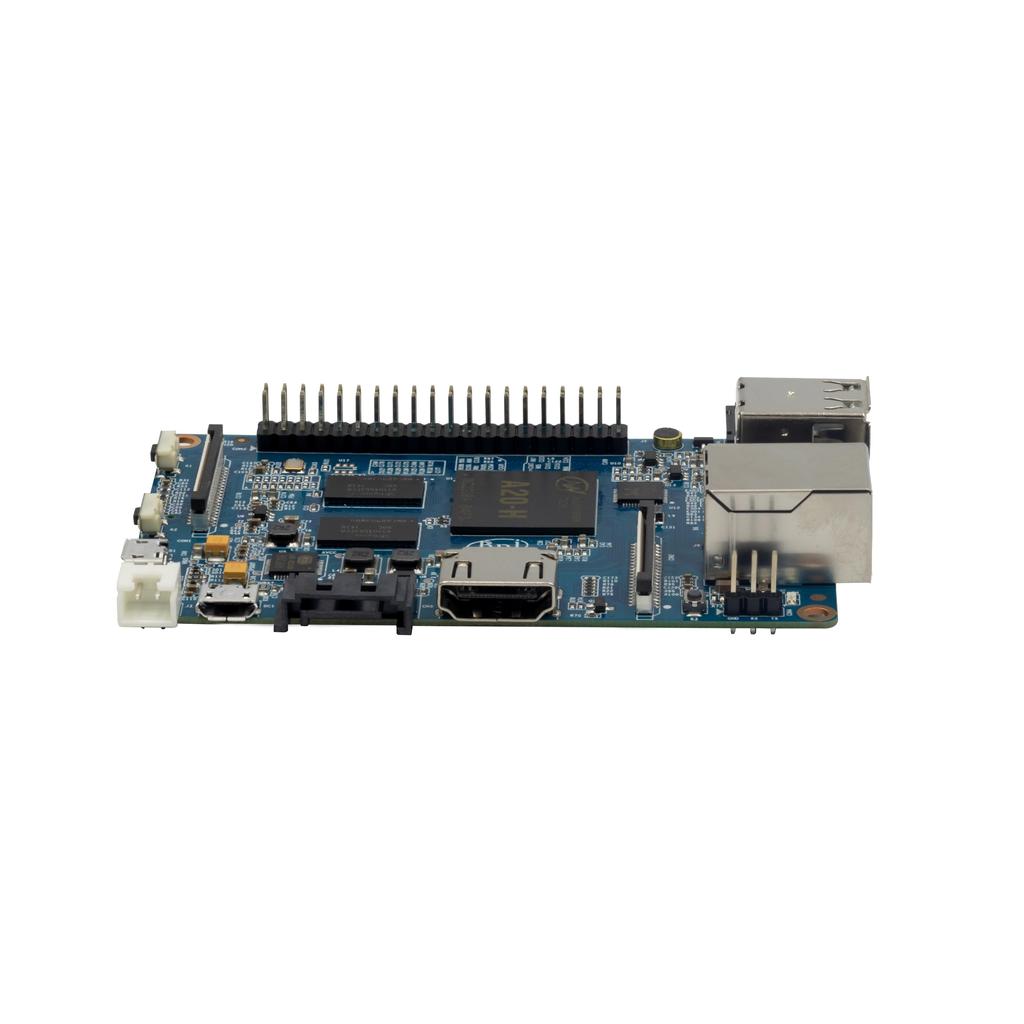

Banana Pi BPI-M1+ Allwinner A20 Single-Board Computer

Products include:

1pcs BPI-M1+ board

Product Size: BPI-M1+: length 10.5cm wide7.8cm high 2cm

========================

Introduction ------------------------ Banana Pi BPI-M1+ upgrade is an open-source single-board computer that adds more connectivity to the classic board. It features the same high performance AllWinner A20 dual-core SoC at 1GHz, 1GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections found in classic BPI-M1+ ; but the Banana Pi M1+ features onboard WiFi g/b/n. The board supports all classic projects and even more because of the onboard WIFi chip. Like its sibling, it can run operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

The Banana Pi M1+ is our upgraded M1 board. We feel like the onboard WiFi adds a lot more features to the board and makes it more convient for users to set up their linx desktop or router projects. Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. With a Banana Pi, we want you to explore and experience the world of DIY projects and portable computing. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

Key Features ----------------------- Allwinner A20 Dual-core 1.0GHz CPU Mali-400 MP2 with Open GL ES 2.0/1.1. 1 GB DDR3 memory. Wifi support onboard 1x SATA interface. 1x Gigabit LAN 1x USB otg and 2x USB 2.0 1X MIC AV out HDMI out IR CSI camera interface DSI display interface 40 PIN gpio 3.7V lithium battery interface

=================================

Hardware spec ---------------------------- Banana Pi BPI-M1+ CPU A20 ARM Cortex -A7 Dual-Core GPU ARM Mali400MP2Complies with OpenGL ES 2.0/1.1 Memory 1GB DDR3 Network 10/100/1000 Ethernet wifi&BT Wifi support onboard Video Input A CSI input connector allows for the connection of a designed camera module Video Outputs HDMI, CVBS, LVDS/RGB Audio Outputs 3.5mm jack and HDMI Power Source 5V/2A via Micro USB (DC in only) and / or Micro USB OTG USB 2.0 ports 2(direct from Allwinner A20 chip) GPIO GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND LED Power Key & 8P8C Storage SATA 2.0 OS Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian
