Banana PI BPI-M5 Single-Board Computer

Products include:

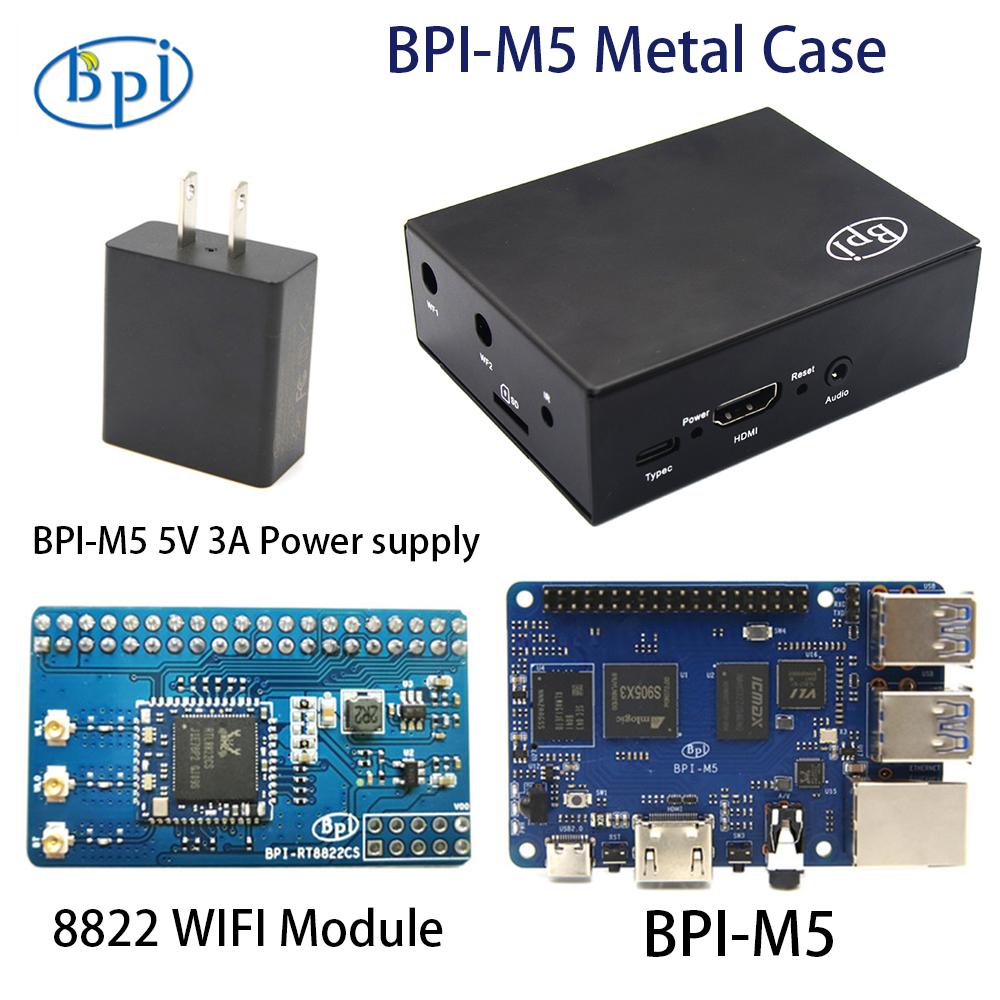

1pcs BPI-M5 board 1pcs BPI-M5 power supply 1pcs 8822 WIFI module 1pcs M5 metal case 1pcs M5 acrylic box A variety of matching packages are available

Product Size:

BPI-M5: length 10.5cm wide7.8cm high 2cm

BPI-RT8822 WIFI module: length 10.5cm wide7.8cm high 2cm

==========================================

BPI-M5 Introduction ---------------------------------- Banana Pi BPI-M5 is the next generation single board computer from Banana Pi in 2020. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 4GB LPDDR4 memory and 16GB EMMC storage, and supports 4 USB 3.0 interface, a gigabit network port.

========================================

Key Features ------------------------------------ Amlogic S905X3 quad core Cortex-A55 (2.0xxGHz) Mali-G31 GPU 4GB LPDDR4 16GB eMMC flash 4 USB 3.0 1 GbE ethernet HDMI output

=========================================

Hardware spec ----------------------------------- HardWare Specification of Banana pi BPI-M5

CPU Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) Memory 4 GB LPDDR4 Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB Network 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle Video Output(s) 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) Audio Output(s) 3.5mm jack and 1 x HDMI digital output USB ports USB 3.0 PORT (x4) GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM Switches Reset, Power and U-boot LED Power Status and Activity status Power Source 5 volt @3A via Micro USB (TYPE C) Size & Weight 92x60mm, 48g OS Android and Linux

Demo Board Type: ARM Memory Capacity: 4GB Model Number: BPI-M5 Processor Brand: AMLogic
