Description:
- Auto ranges, true RMS, 550V protection in resistance, capacitance and frequency ranges
- Large LCD display with backlight, maxdisplay 6000 counts
- Sample rate: 3 times per second, data hold, polarity identification
- Low voltage indication, 10A high current and low current measurement, auto power off
- Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity testing, temperature,frequency andduty cycle, etc.
Specification:
- Size: Approx. 130 ×65 ×30 mm/ 5.12 ×2.56 ×1.18 inch
- Frequency: 1Hz to 20MHz
- Temperature: -20℃ to 1000℃ (-4℉to 1832℉)
- Capacitance: 10pF to 6000uF
- AC volts: 0.1mV to 750V
- DC volts: 0.1mV to 1000V
- AC current: 0.1uA to 20A
- DC current: 0.1uA to 20A
- Resistance: 0.1Ωto 60MΩ
- Duty cycle: 1% to 99%
- Capacitance: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)
- DC volts: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
- AC volts: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)
- DC current: 600uA/6000uA(±1.5%+3), 60mA/600mA(±1.5%+3), 10A(±1.5%+3)
- AC current: 600uA/6000uA(±1.5%+3), 60mA/600mA(±1.5%+3), 10A(±1.5%+3)
- Resistance: 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3)
- Temperature: ＜400℃ ±(1.0%+5), ≥400℃±(1.5%+15)
- ＜752℉ ±(1.0%+5), ≥752℉±(1.5%+15)
- Frequency: 5/50/500/5k/50k/500k/5M/10M(±0.1+3)
- Duty cycle: 1% to 99%(±1%)
- Measurement mode: Double-integral style A/D transform
- Over range indication: OL
- Working environment: 0 to 40℃, relative humidity less than 80%
- Battery: 2×1.5V (do not contain)
Package Includes:

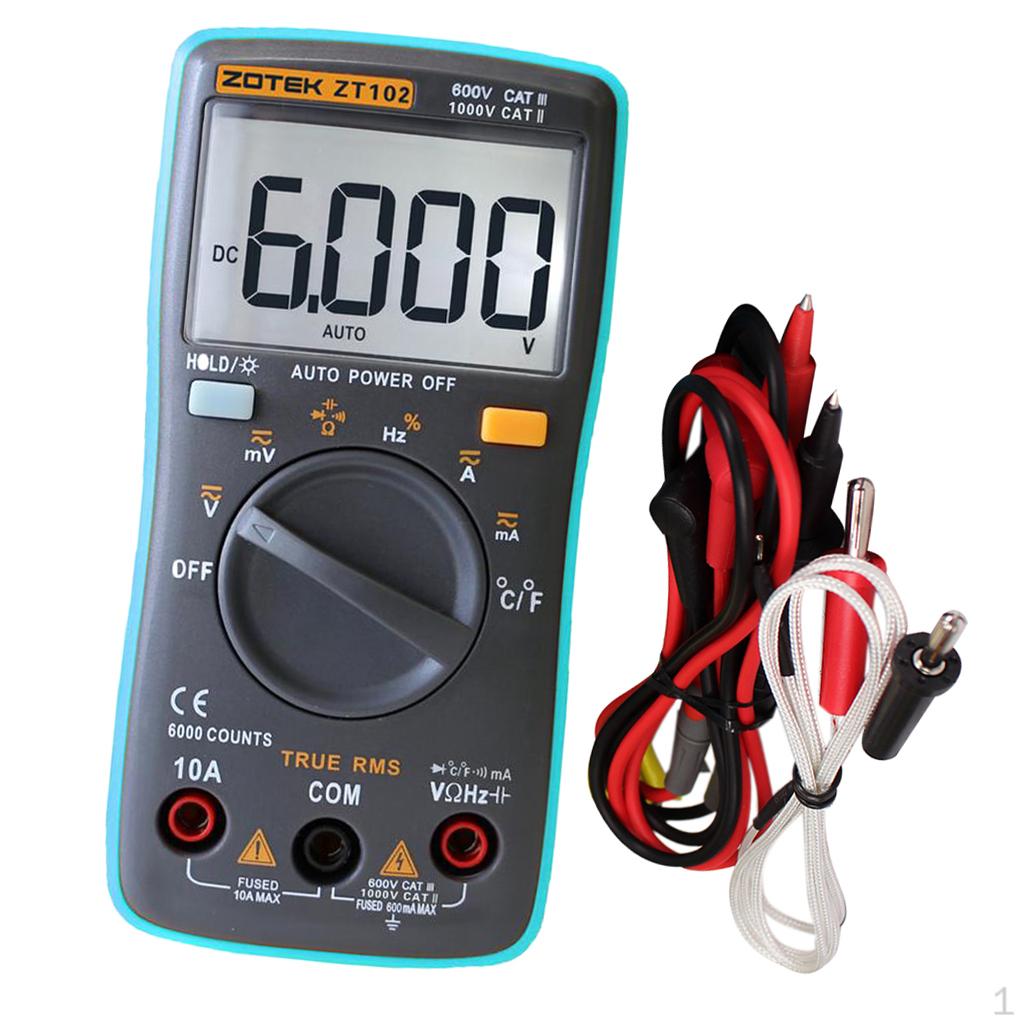

1 Piece of 6000 Digital Multimeter
2 Pieces of Test Leads
1 Piece of Thermocouple
1 Piece of User Manual
