Feature:

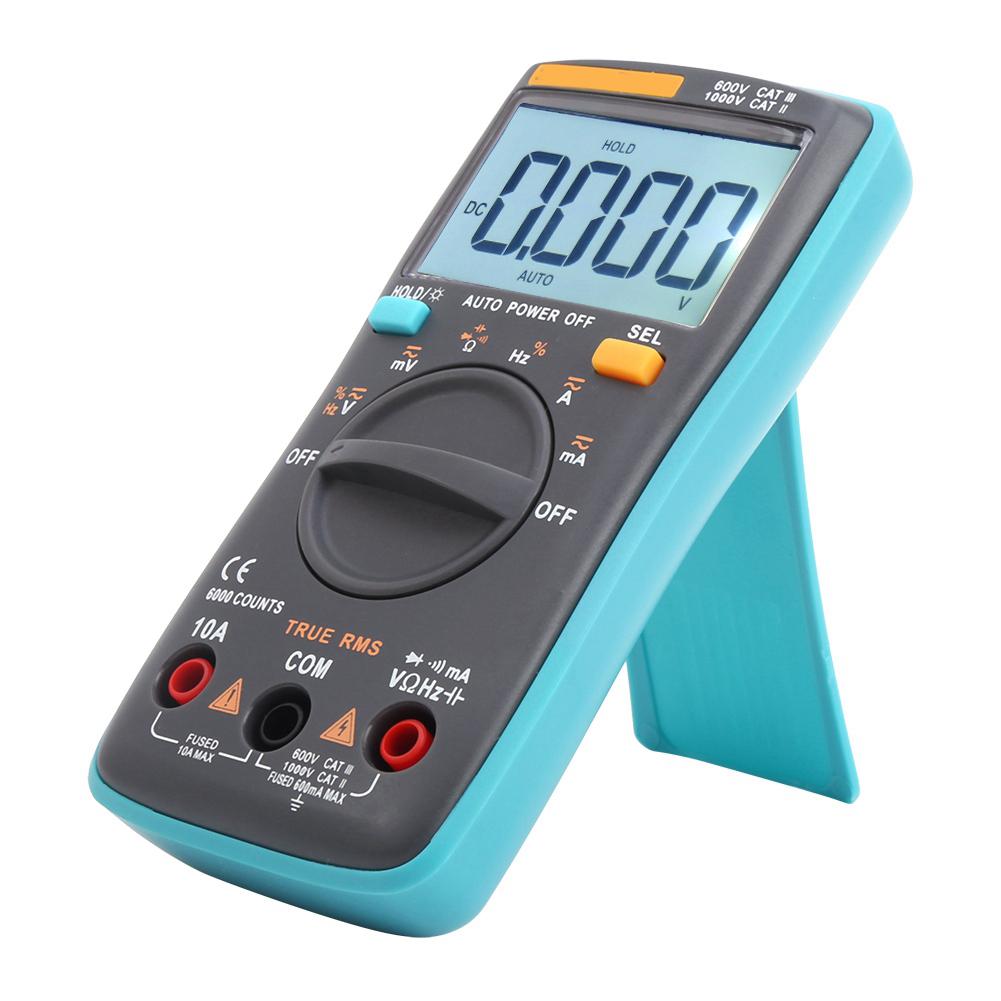

1. Large LCD screen displays white light for easy reading in dim environment.
2. Simply plug the red test cord into a power outlet, and if it is energized, it will flash and alert the buzzer to sound.
3. Can be used to measure ACDC voltage, ACDC current, resistance, capacitance, diodes and continuity tests, temperature, frequency, etc.
4. Small in size and the back clamp design makes it easy to carry, easy put in a pocket.
5. With data hold, automatic shutdown, auto range function, more convenient to use.
Specification:
Condition: 100percent Brand New
Item Type: Multimeter
Material: ABS
Color: As shown in the picture
Sampling Rate: 3 secondstime
Application: Can be used to measure ACDC voltage, ACDC current, resistance, capacitance, diodes and continuity tests, temperature, frequency, etc.
Function
Range
Resolution
Accuracy
Maximum
Other
DC Voltage(DC)V
6V
0.001V
+(0.5percent +3)
1000V
input resistance 10M Ohm
60V
0.01V
600V
0.1V
1000V
1V
DC Voltage(DC)mV
60mV
0.01mV
600mV
600mV
0.1mV
AC Voltage(AC) V
6V
0.001V
+(1.0percent +3)
750V
input resistance10M Ohm
600mvrange>60M Ohm
frequency response 40HZ1KHZ
60V
0.01V
600V
0.1V
750V
1V
AC Voltage(AC) mV
60mV
0.01mv
600mV
600mV
0.1mV
DC Current (DC) A
6A
0.001A
+(1.2percent +3)
10A
Maximum current: 10A(not exceeding 15 seconds)
No voltage input at this mode
Frequency response 40HZ1khz
10A
0.01A
DC Current (DC)mA
60mA
0.01mA
600mA
600mA
0.1mA
AC Current (AC)A
6A
0.001A
+(1.5percent +3)
10A
10A
0.01A
AC Current (AC)mA
60mA
0.01mA
600mA
600mA
0.1mA
Resistance Ohm
600 Ohm
0.1 Ohm
+(0.5percent +3)
60M Ohm
No voltage input at this mode
6K Ohm
0.001K Ohm
60K Ohm
0.01K Ohm
600K Ohm
0.1K Ohm
6M Ohm
0.001M Ohm
60M Ohm
0.01M Ohm
+(1.5percent +3)
Capacitance(F)
9.999nF
0.001nf
+(5.0percent +20)
9.999mF
No voltage input at this mode
99.99nF
0.01nF
+(2.0percent +3)
999.9nF
0.1nF
9.999uF
0.001uF
99.99uF
0.01uF
999.9uF
0.1uF
9.999mF
0.001mF
+(5.0percent +5)
Frequency(HZ)
99.99HZ
0.01HZ
+(0.1percent +2)
9.999MHZ
999.9HZ
0.1HZ
9.999KHZ
0.001KHZ
99.99KHZ
0.01KHZ
999.9KHZ
0.1KHZ
9.999MHZ
0.001MHZ
Duty cycle
1percent 99percent
0.001
+(0.1percent +2)
Diode
Support (DC forward current 5mA, voltage 3V)
No voltage input at this mode
Continuity
Support (no more than 50 Ohm )
Power supply
2x1.5VAAAbattery(Not included)
Operating temperature
040 celsius
Operating humidity
<75percent
Storage temperature
2060 celsius
Storage humidity
<80percent
Size
Approx. 130x65x32mm 5.1x2.6x1.3in
.
Package List:
1 x Multimeter(Battery Not Included)2 x Test s1 x Cloth Bag1 x Instruction Manual
Note:
1. Please allow 1‑2cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Large LCD screen displays white light for easy reading in dim environment.
Simply plug the red test cord into a power outlet, and if it is energized, it will flash and alert the buzzer to sound.
Can be used to measure ACDC voltage, ACDC current, resistance, capacitance, diodes and continuity tests, temperature, frequency, etc.
Small in size and the back clamp design makes it easy to carry, easy put in a pocket.
With data hold, automatic shutdown, auto range function, more convenient to use.
