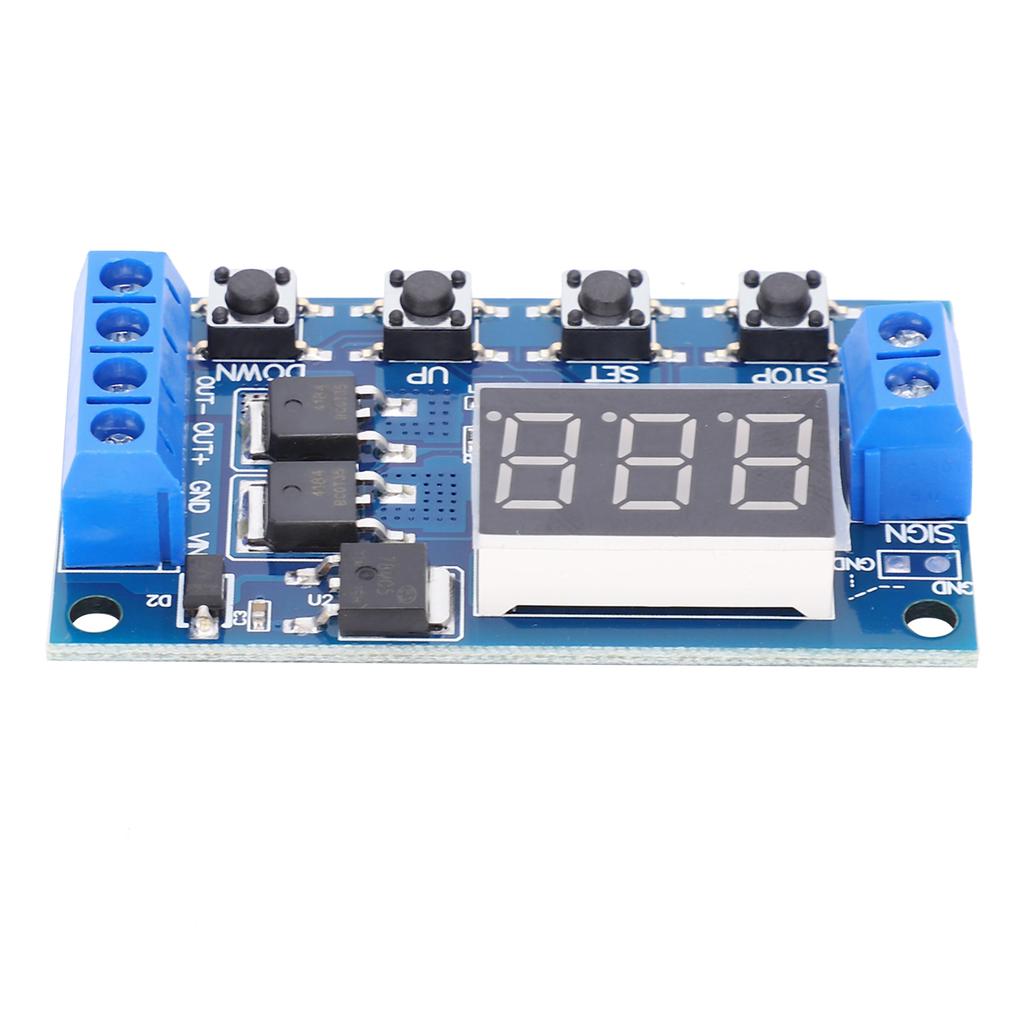

Trigger Cycle Timer Delay Switch Circuit Board Dual MOS Tube Control Module DC 5?36V

Feature: 1. Realize the highfrequency fast and frequent onoff of the circuit, unlimited switching times, no noise during the onoff process, no electric spark, no electromagnetic interference, and the service life is longer than that of common electromagnetic relays 2. Using dual MOS parallel active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, which meets the use of most equipment 3. Mainly used to control motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc. Wide voltage operation (5~36V) can easily control these devices through this module, which is very convenient 4. Clear and simple interface, powerful, easy to understand, and meets almost all your needs 5. Come with one key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn 6. Adding sleep mode , automatically turn off the display without any operation within 5 minutes, any key to wake up after enabling 7. You can be set different OP, CL, LOP parameters, these parameters are independent of each other and saved separately; all setting parameters are automatically saved when power off Specification: Item Type: Trigger Cycle Timer Material: PCB Uses: Commonly used to control motors, bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc. Working Voltage: DC 5V36V Trigger Signal Source: Highlevel trigger (DC 3.0V24V), the signal ground and the system ground are not in the same ground to improve the antiinterference ability of the system (also can be shortcircuited to the common ground) Output Capacity: DC 5V36V, continuous current 15A at room temperature, power 400W. Under auxiliary heat dissipation conditions, the maximum current can reach 30A Quiescent Current: 15mA Service Life: Unlimited switch Working Temperature: 40~85 celsius Size: Approx. 6.0 x 3.4 x 1.2cm 2.4 x 1.3 x 0.5in. Package List: 1 x Trigger Cycle TimerRealize the highfrequency fast and frequent onoff of the circuit, unlimited switching times, no noise during the onoff process, no electric spark, no electromagnetic interference, and the service life is longer than that of common electromagnetic rela Using dual MOS parallel active output, lower internal resistance, higher current, strong power, 15A, 400W at room temperature, which meets the use of most equipment Mainly used to control motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc. Wide voltage operation (5~36V) can easily control these devices through this module, which is very convenient Clear and simple interface, powerful, easy to understand, and meets almost all your needs Come with one key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn
