Description:
Adopting SMD chip technology, this LED relay has short-circuit protection, overload protection, and reverse connection automatic protection, which can make the bulb work more stable and very safe, so you can use it with confidence. It also uses 3 gears frequency adjustment, which can effectively adjust the flashing frequency of the turn signal, which is very practical.
Designed with a crosshead hole, this LED relay is easy to adjust with tools, while its recessed hole design prevents outside interference with the adjustment column. Besides, it is heat-treated for longer service life and is very durable.
It is made of metal and ABS material.
The length of this product is 3.5cm, the width is 3.5cm and the height is 2.7cm.
It is suitable for most motorcycles. It can be equipped with LED lights, ordinary lights, and is universal.

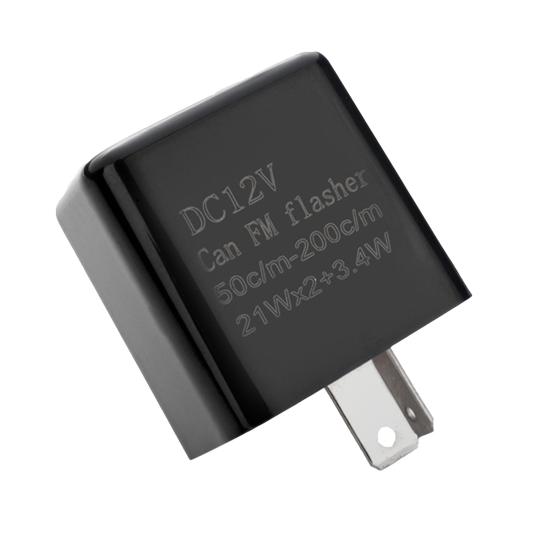

Item Name: LED Flasher
Material: Metal, ABS
Features: Flame Retardant, Impact-resistance, Overload Protection
Adaptation Models: Universal
Operating Voltage: Voltage DC12V
Flashing Frequency: 50C/m-200C/m
Working Power: 21Wx2, 3.4W
Adjustable Frequency: 50 Times/Min to 200 Times/Min
Use: 3 Gear Frequency, Counterclockwise Twist Becomes Faster, Clockwise Twist Becomes Slower
Size Details:
3.5cm x 3.5cm x 2.7cm(Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Installation tips:
The foot position must be properly aligned during installation. If the foot is dislocated, the function of the flasher cannot be realized.
If the flasher is changed and the four lights are on at the same time, you need to unplug the direction indicator on the instrument panel.
Pin B is the input and pin L is the output.
For this YS-05 new motorcycle flasher, B is connected to the positive pole of the power supply, l is connected to the positive pole of the lamp, and the negative pole of the lamp is grounded.
Package Includes:
1 x LED Flasher
